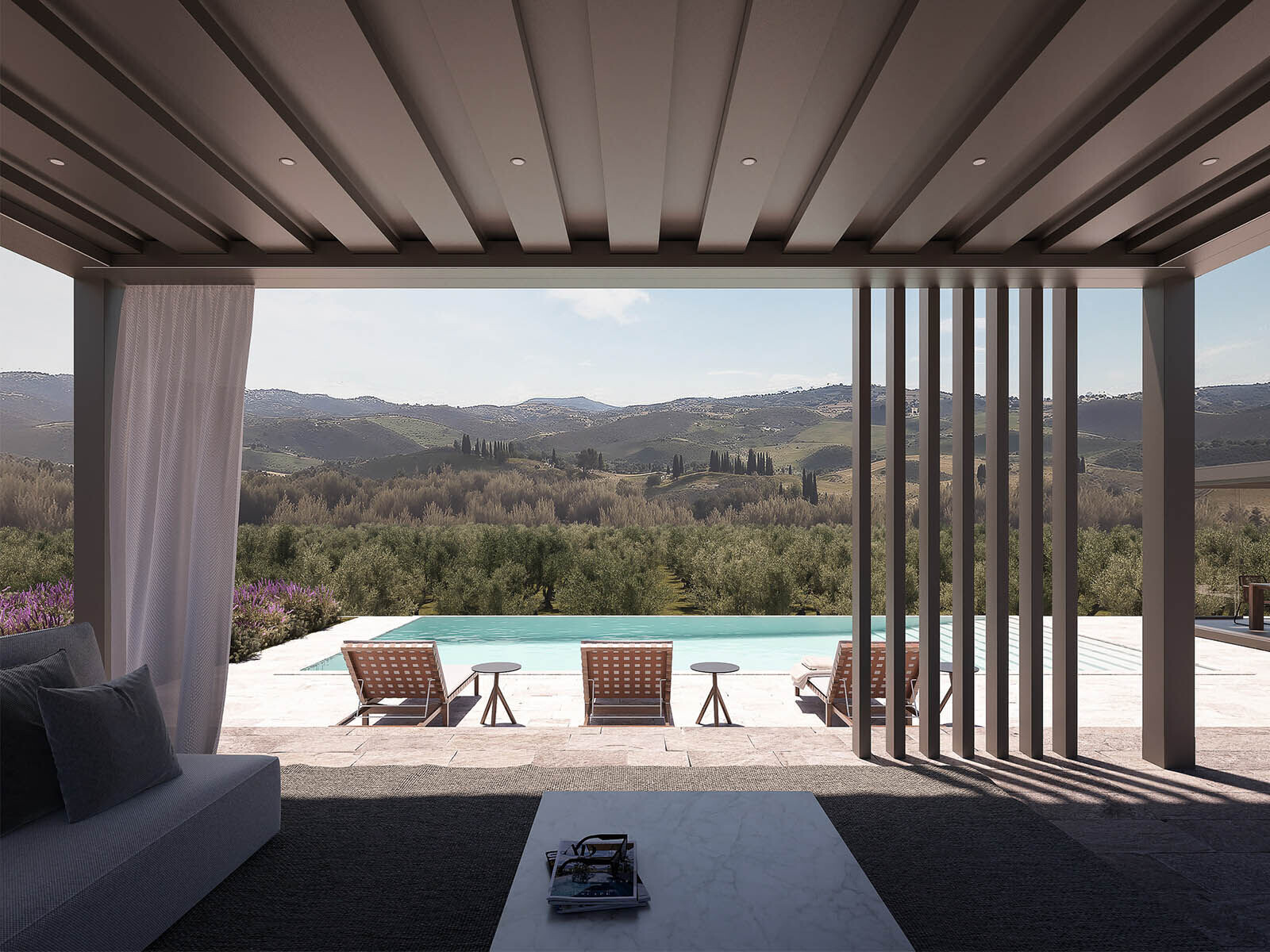

Carrera is the bioclimatic pergola with alternate fixed and movable blades, which lift and overlap one another, thus creating a pleasing alternation of light and shadow. Custom-made, Carrera can be equipped with Glass Series glazing, LED lighting and modular platforms; furthermore, the fixed blades make possible the installation of hanging elements and Mod-Lines.
TECHNICAL FEATURES
-Bioclimatic aluminium pergola with fixed and bidirectional sliding sunshade blades, motor-operated which can overlap.
- Maximum dimensions of each module:
-Carrera P: 500L × 700P cm
-Carrera S: 500L × 690P cm
-H max: Carrera P 300 cm; Carrera S 270 cm
-Pitch between fixed blades 17 cm
-Dimensions of uprights: Carrera P 15 × 15 cm; Carrera S 10 × 15 cm
-Feasible in different configurations and with couplable modules
-Self-supporting or wall-mounted versions
-Motorised operation
-Water drainage with gutters and drainage integrated in the posts
-Carrera P, unlike Carrera S is also compatible with Raso
OPTIONAL
-Set: aluminium platform structurally verified to be fully integrated into the pergola, customizable with dimmable LED Line

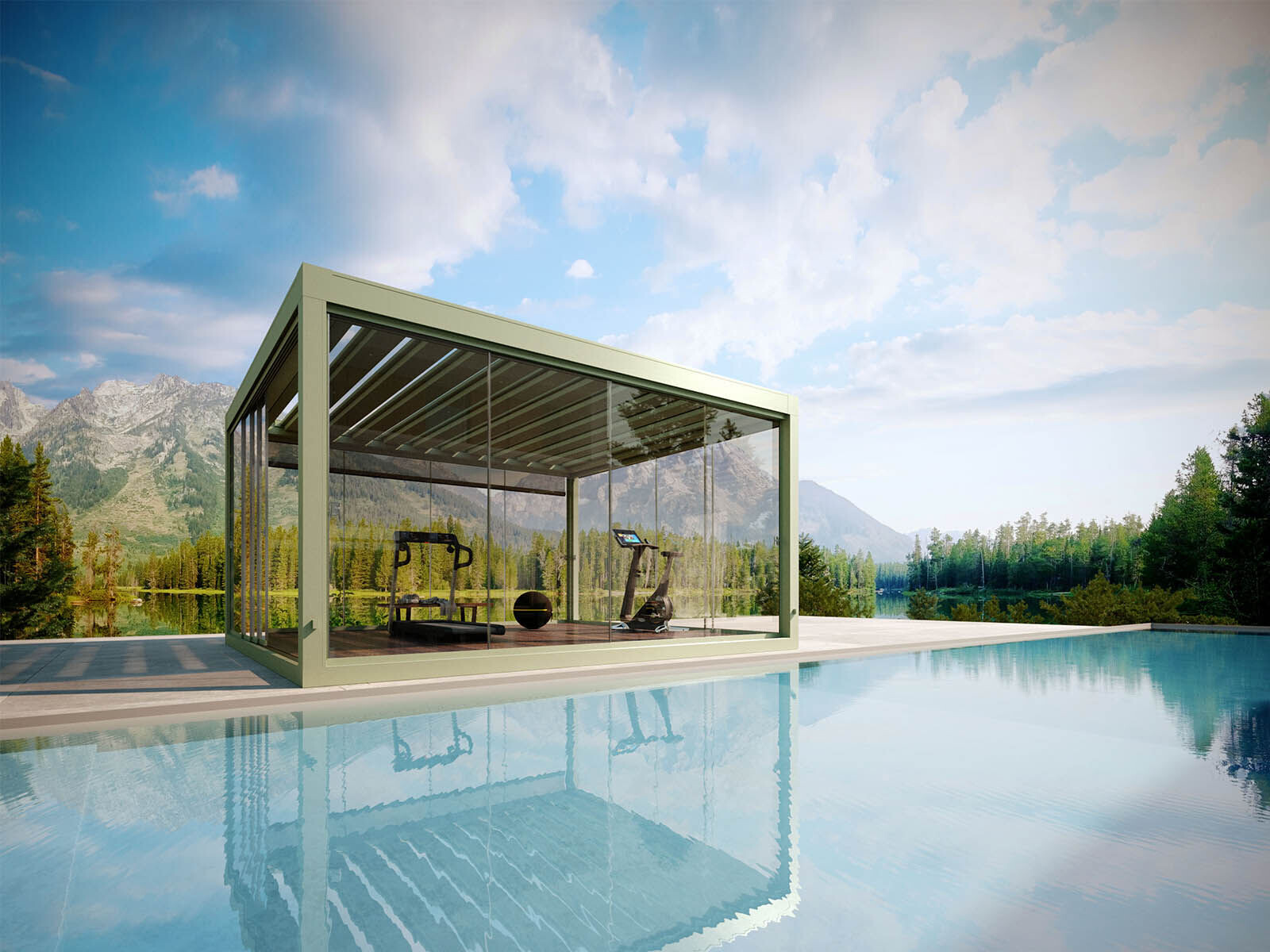

-Glass Series: outer glass walls
-Connect: fixed mirrored or smoked glass panels with slim profiles (except for Carrera S)
-Raso: drop-down awning (Carrera P) with technical, blackout or filter fabrics and cloth tensioning system (PSS)
-Lighting: dimmable perimeter LED Line (white/RGB light, white included), spotlights integrated into the blades, spotlights positioned on the posts with uni-or bidirectional beam (white dimmable light)
-Ray: vertical profiles with aesthetic function
-Drapes: soft sliding curtains with aesthetic function
-Mod-Lines: modular open shelving system made of aluminium, customizable with different accessories
-Sockets and USB ports
-Heaters predisposition
-Comfort blade: partial blade insulation
-Home automation: creation of customised scenarios controllablevia app or voice commands
- Temperature, rain, snow and wind sensors.
