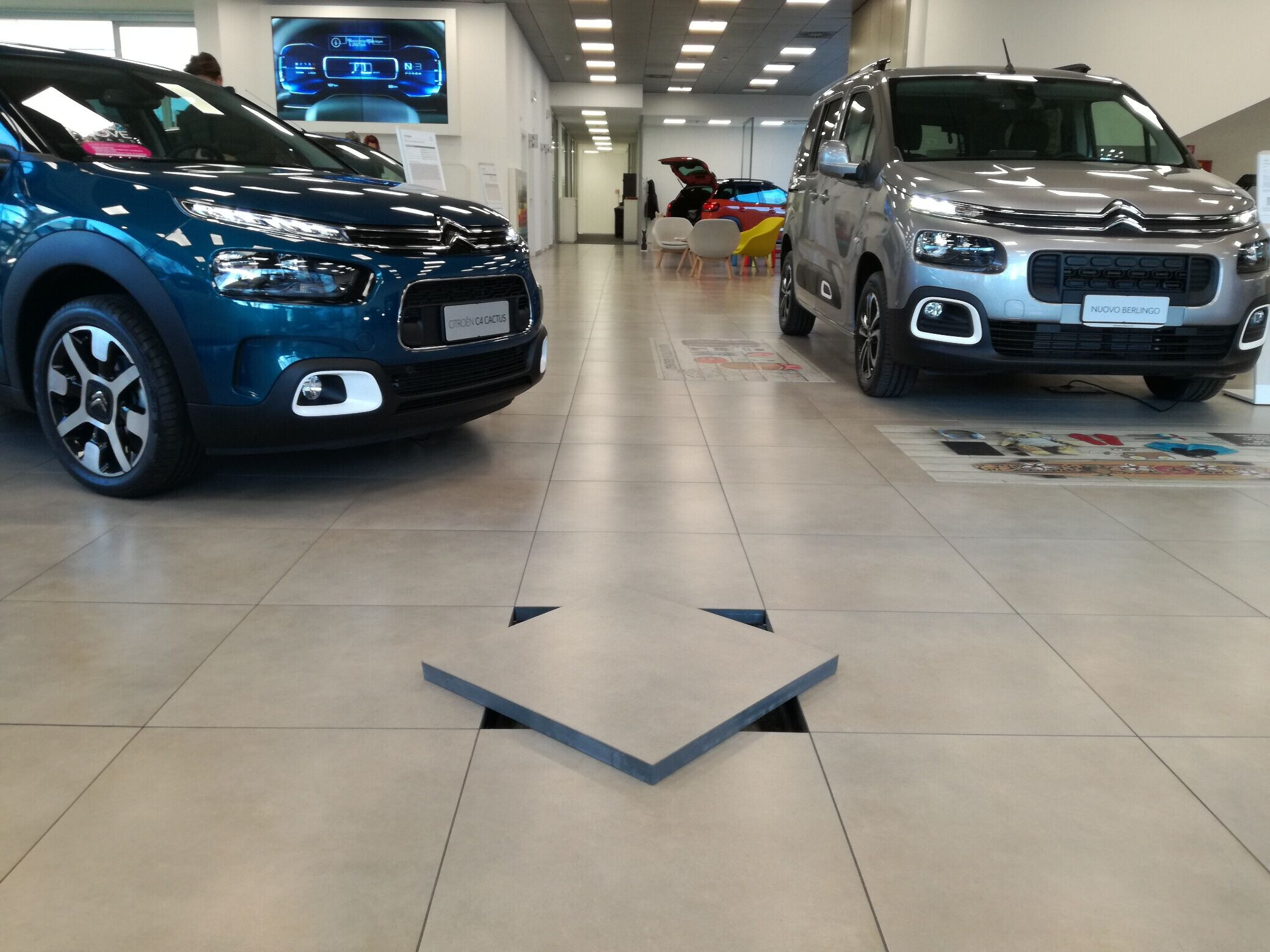

Our experience in facing new challenges allow us to take action even in extreme situations. The raised floor is suitable also for important loads: for this reason it can resist to the weight of a car, as in the Car Delear Citroën in Milan, in the city life area.
In this project of 600sqm we used the G34HTK panel, with a calcium sulphate of 34mm density 1.600kg/mc, reinforced with steel tray on bottom side and covered with ceramic tile chosen and supplied by the customer.
The steel substructure is composed by a pedestal of dimension 135mm adjustable from 110 to 160mm and a medium stringer of 30mm, with a final dimension of 596mm per side. For an even more sure ground anchor, the basis of the pedestals were glued to the ground with a polyurethane glue.
The panel combined with the substructure is 3.000 kg/sqm resistant.
Many panels were cut with rectangular holes in order to place the electric turrets for the electrical connection.
