FACQ Center - Wire mesh facade for sun shading

HAVER and BOECKER as wire mesh facade cladding

The longest mesh facade in the world?
The new FACQ building impresses with a 300 m long wire mesh facade from Haver & Boecker.



The Belgian family company FACQ has been a specialist in bathrooms, heating and renewable energies since 1880. As a wholesaler, the company addresses both installers and private customers.



LAB Architects Boveroux Courtoy designed the new FACQ building in Merelbeke. With an almost 300-metre-long mesh façade cladding, it is a real eye-catcher on the E40 highway. In collaboration with the architect and the general contractor Verelst Bedrijfsbouw & Renovatie, Haver & Boecker realised the vision of a shimmering building shell made of stainless steel mesh.



Façade cladding made of HAVER Architectural Mesh acts as sun shading
The stainless steel mesh cladding from Haver & Boecker is interrupted horizontally over its entire length by an elliptical elongated shape. In front of the glass façade on the south side of the building, the metal mesh cladding acts as an effective privacy- and sun protection screen. From the very beginning, special requirements were made on it. On the one hand, the facade cladding should appear transparent from the inside but opaque from the outside, on the other hand it should offer perfect sun protection with a very low g-value. Haver & Boecker fully meets the customer`s requirements with the stainless steel wire mesh LARGO-TWIST, developed especially for sun protection.



Excellent shading values

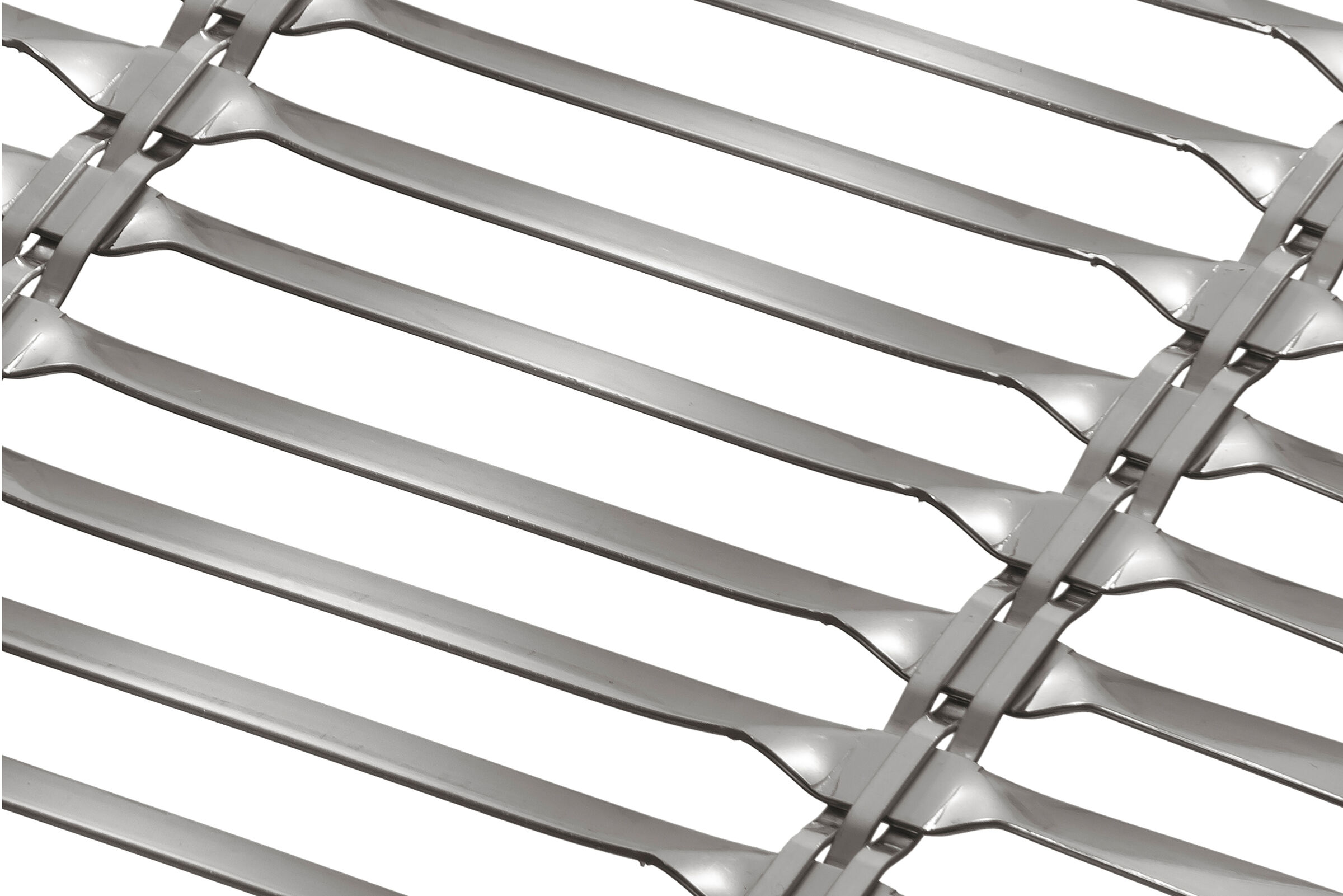

Due to the semi-transparent geometry, HAVER Architectural Mesh is very well suitable for external sun protection. By providing efficient shading and a transparency at the same time, architectural wire mesh improves indoor comfort and energy efficiency of the rooms. The used stainless steel mesh LARGO-TWIST 2045 is characterized by its tilted horizontal flat wires, which offer good sun protection. With an open area of 38%, the mesh type creates a homogeneous appearance with low transparency and extensive light reflections. At the same time, it allows an unobstructed view out of the building.

HAVER Architectural Mesh LARGO-TWIST with excellent shading values.

With a sunlight incident angle of 60° and a double glazing window, most of the architectural mesh types used for sun protection effect a reduction of solar energy input between 40 % and 70 %. In interaction with a solar control glazing, they reach at the same angle of incidence a g-value among 0.1 to 0.18. The LARGO-TWIST 2045 sun shading mesh clearly exceeds these shading values. Confirmed by independent tests, LARGO-TWIST 2045 reduces the entry of sunlight at this angle by more than 90 %. In combination with solar control glazing, it is a g-value of 0.02.



Everything from a single source
Haver & Boecker took over the assembly of the 3,200 m² mesh façade. In total 182 façade elements, with a width of 2.98 m and a length of up to 7.71 m, were attached to the substructure using flat tension profiles, clevis screws and pressure springs. The architectural team of Haver & Boecker was a competent partner at the customer's side from consultation and planning phase, through mesh production and delivery, up to installation of the wire mesh elements.



www.weavingarchitecture.com


-----------------------------------------------------------------

Caption

NEWS:
The jury of the ICONIC AWARDS 2021: Innovative Architecture honored the sun protection mesh LARGO-TWIST 2045 from Haver & Boecker with two awards.
In the competition for the design award, the HAVER Architectural Mesh LARGO-TWIST 2045 not only received the "Winner" award in the category "Products - Facades", but also in the "Innovative Material" category, which focuses on sustainable, energy-efficient and functional materials that are versatile in terms of design.
Learn more.
