Glasner House
Veit Landwehr

Glasner House - repair after the flood

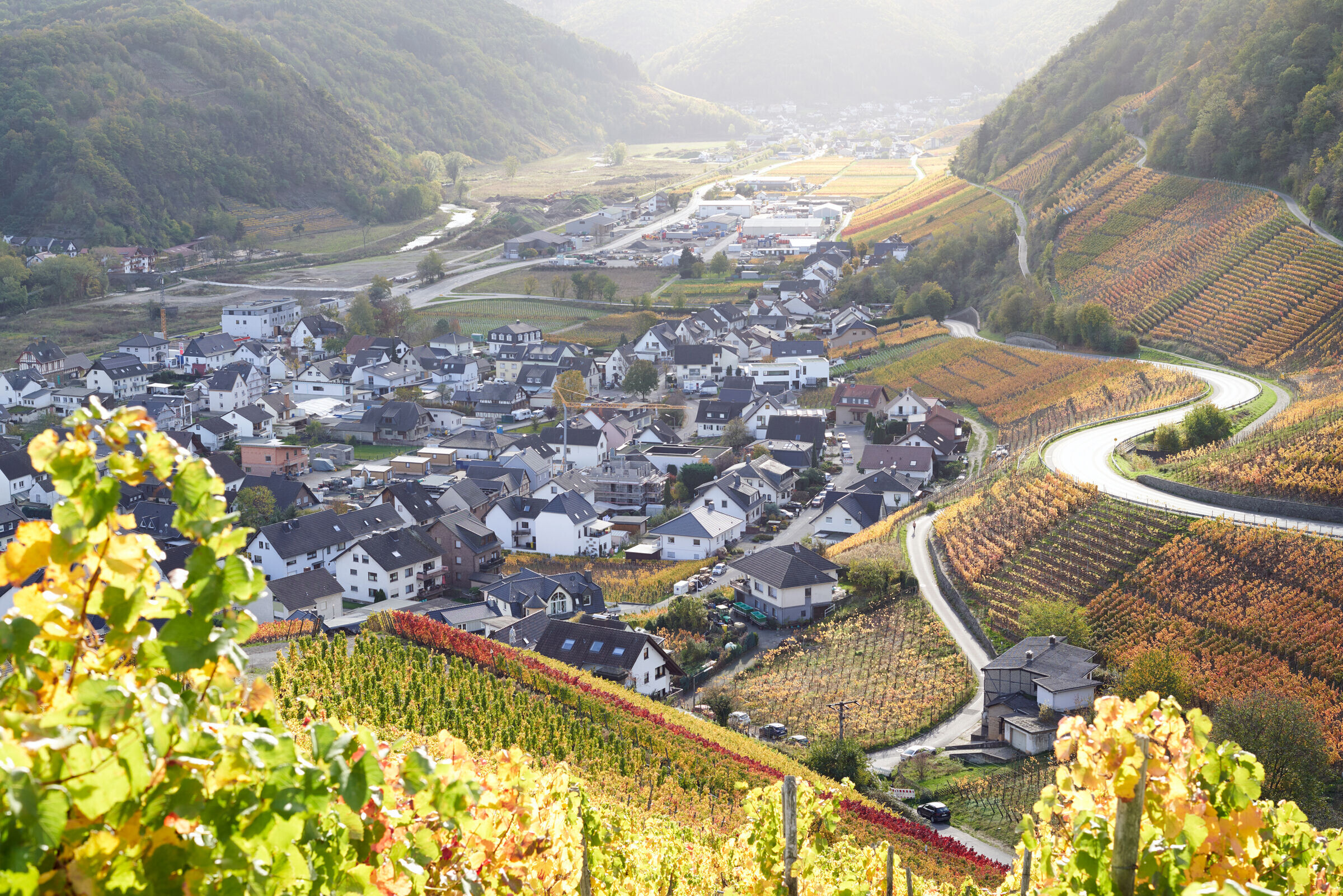

This house takes up the traditional typology of the courtyard house of the villages in the Ahr valley, which had to give way to detached houses in the second half of the 20th century and can now only be found in isolated places. A base of reinforced concrete, although above the flood of the century HQ100, should protect against flooding.

photo_credit Veit Landwehr
Veit Landwehr
photo_credit Veit Landwehr
Veit Landwehr
photo_credit Veit Landwehr
Veit Landwehr
photo_credit Veit Landwehr
Veit Landwehr

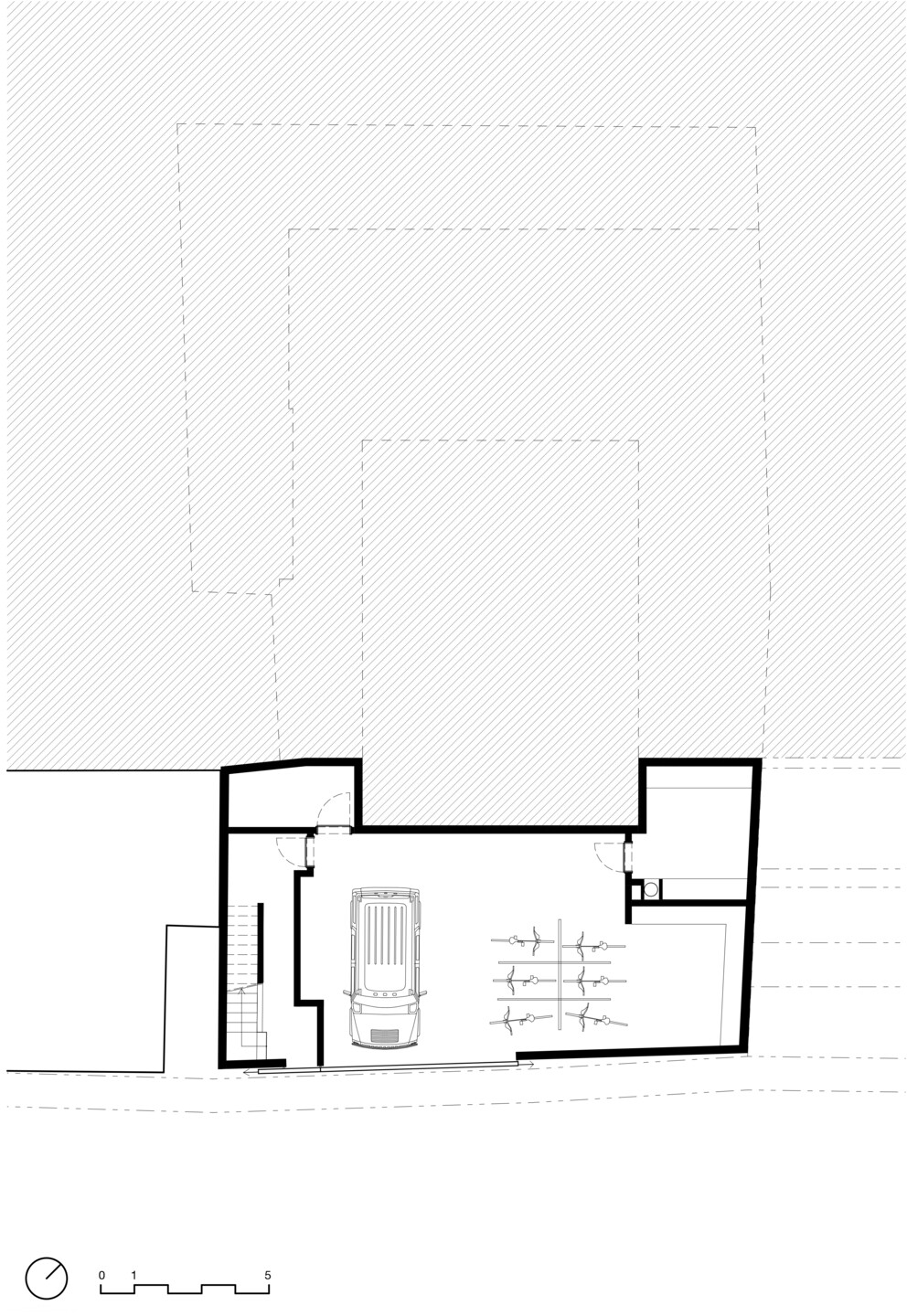

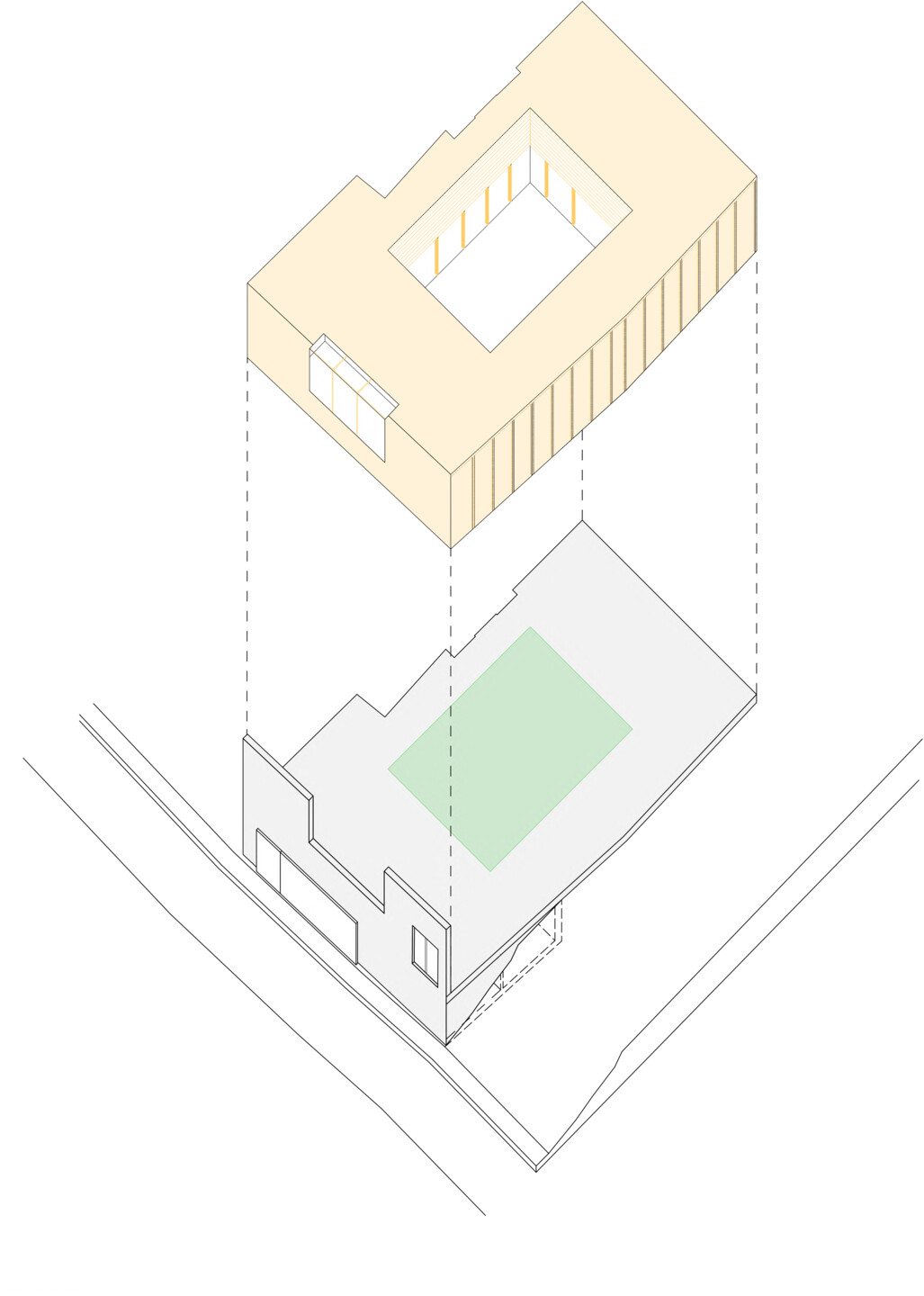

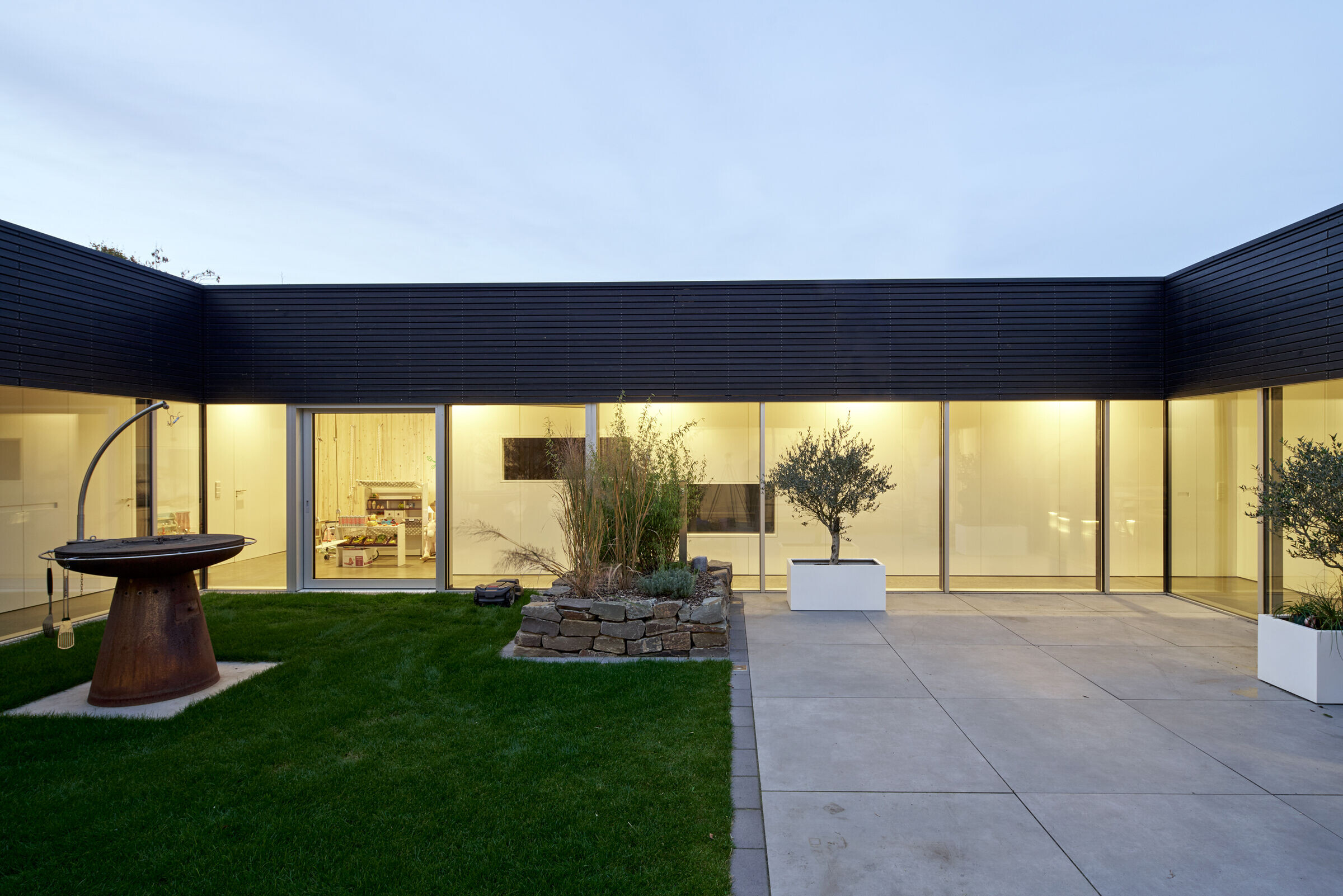

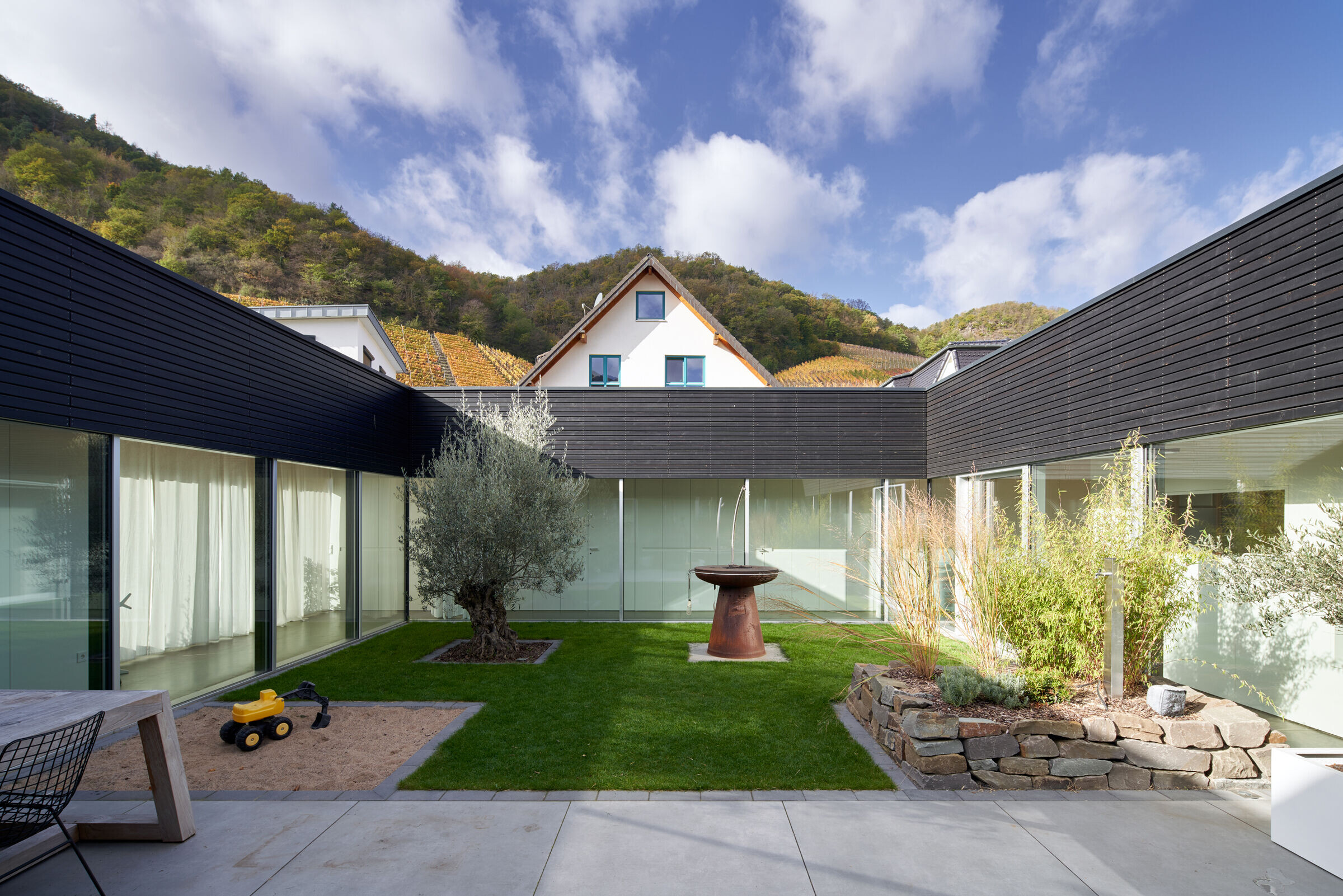

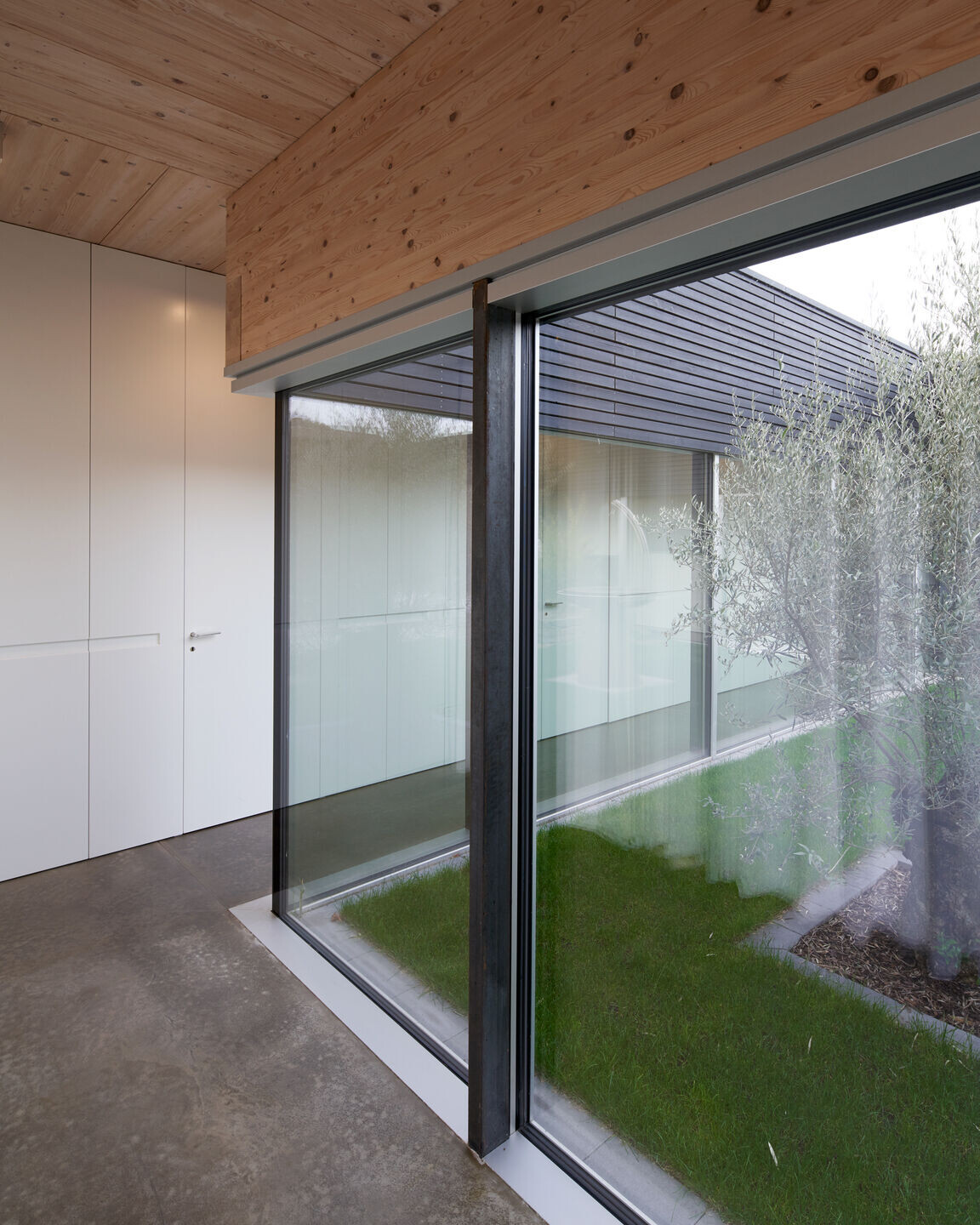

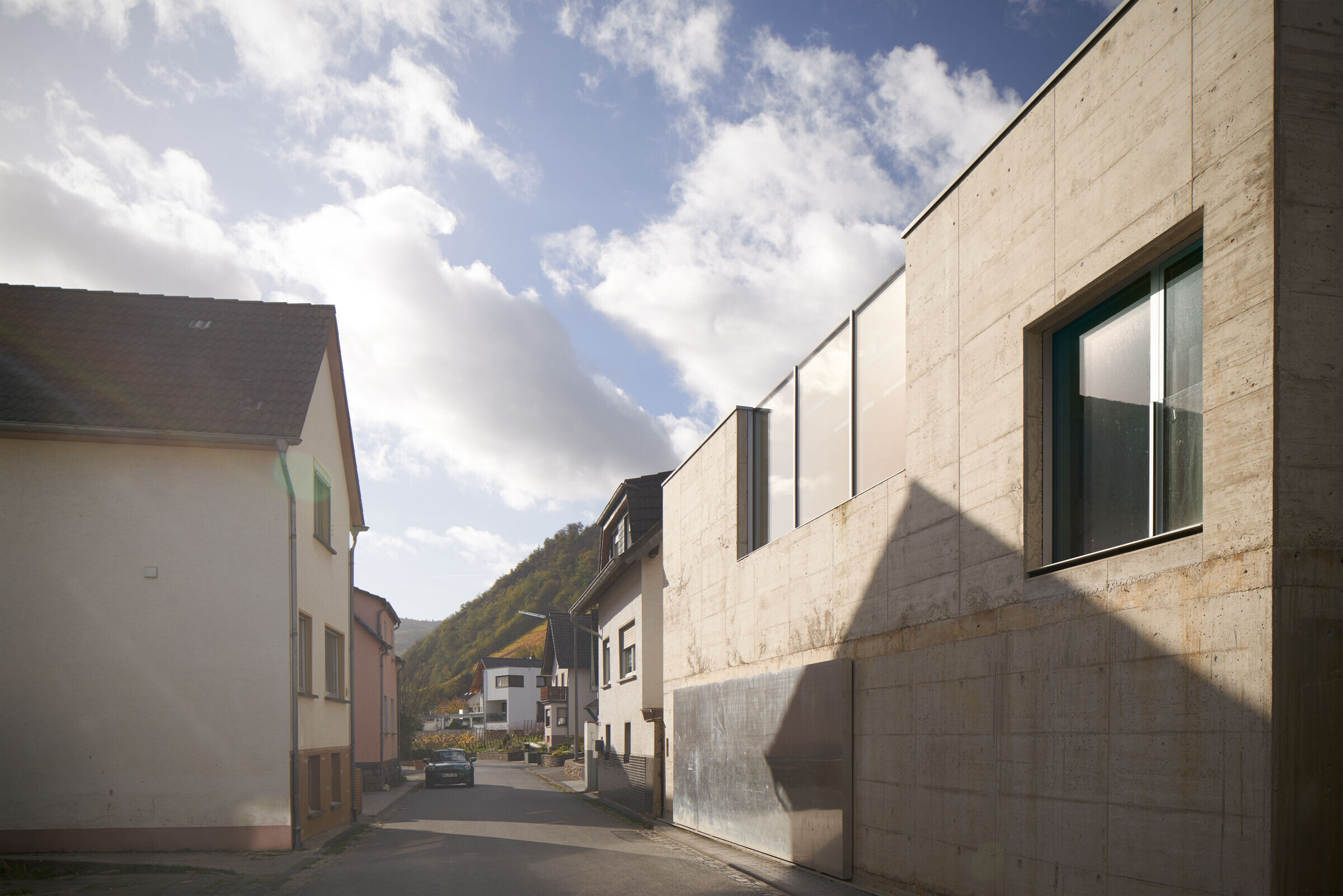

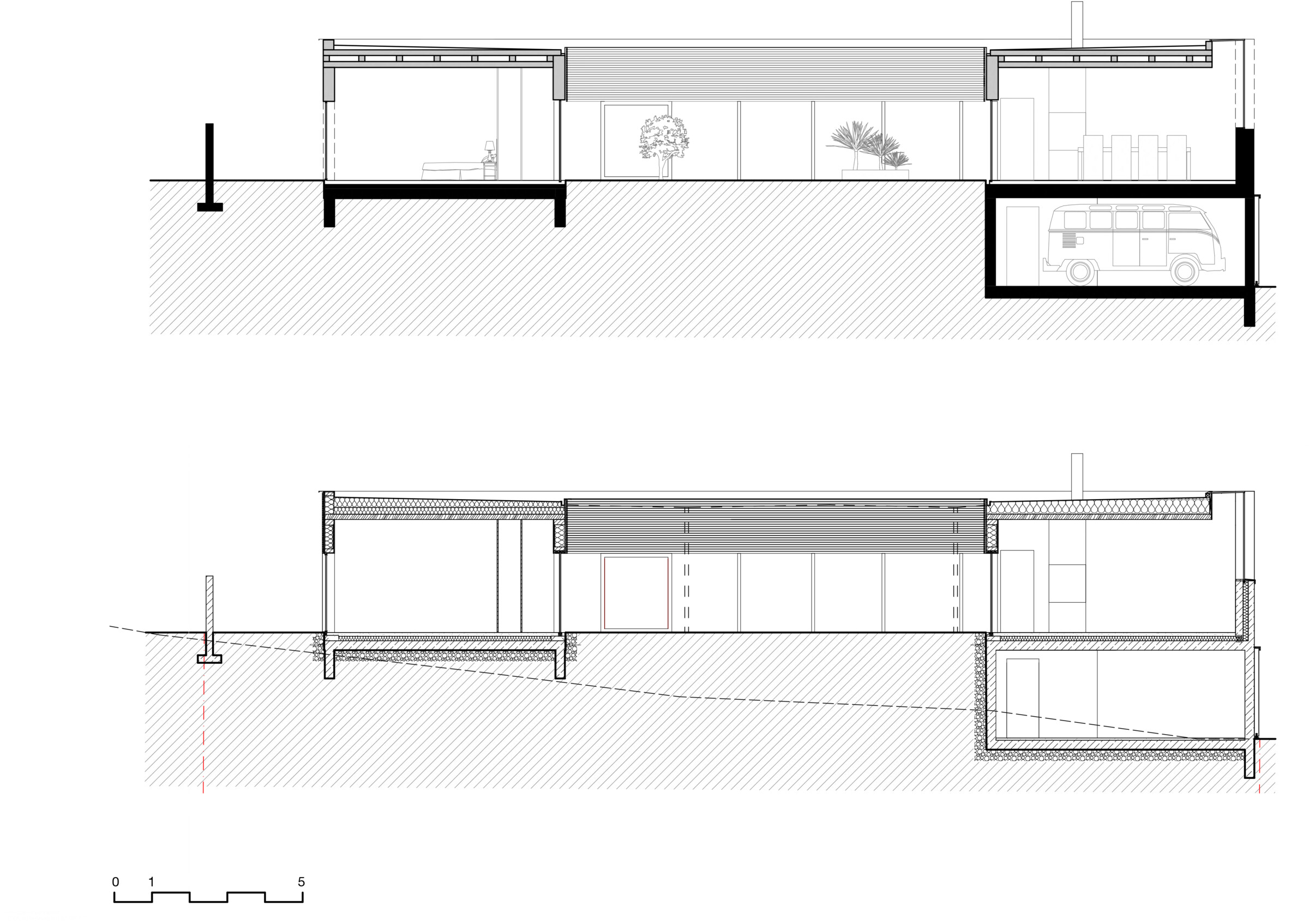

Designed as a cold structure and occupied by functional rooms, it can be flooded without any problems. The façade of the base storey facing the street was raised in two shells. Behind and on top of the base, a wooden building was erected, consisting of stacked ceilings and wooden post-and-beam walls, which develops around a courtyard.

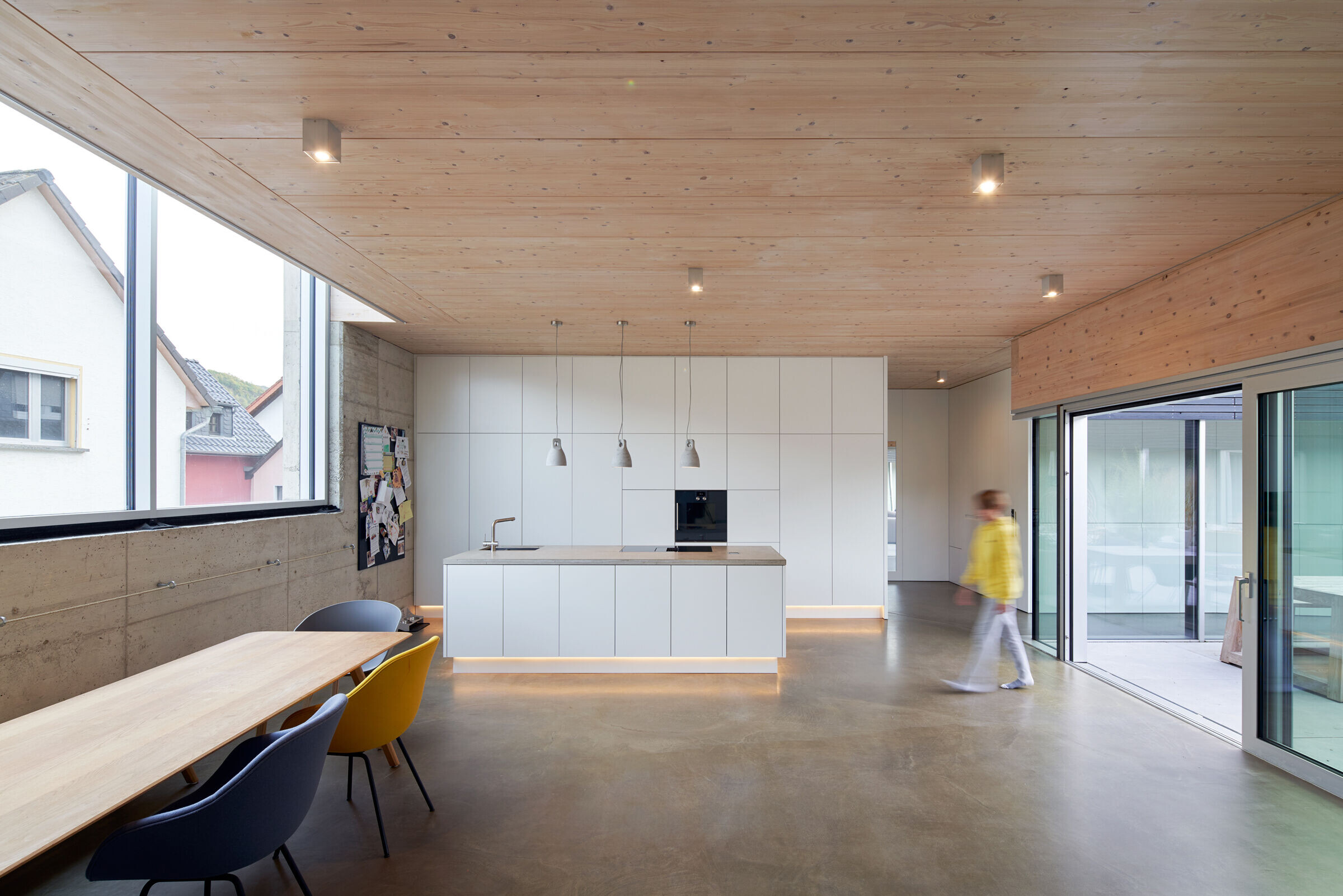

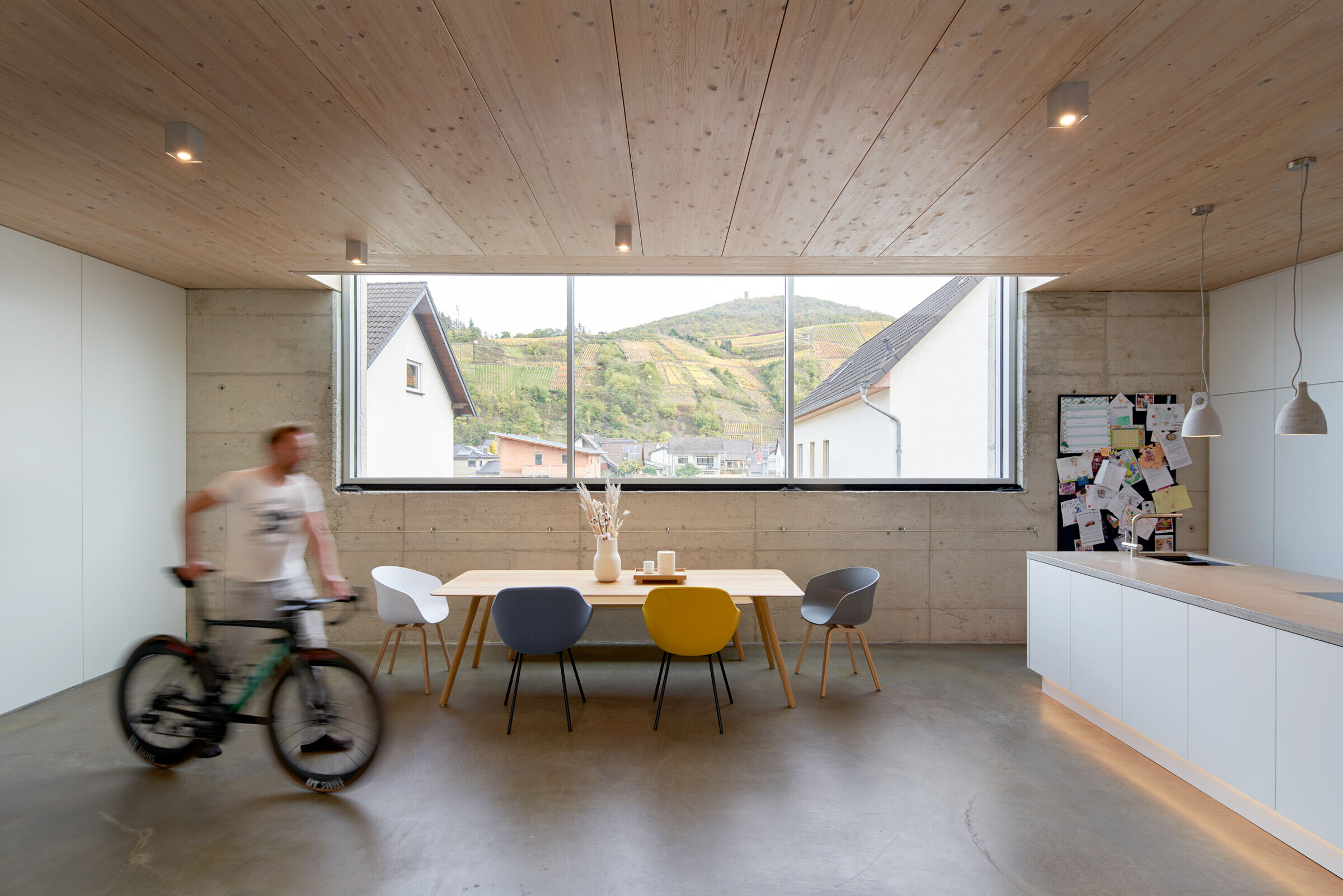

The children's rooms and playrooms were placed at the rear, and the living room, dining room and parents' retreat were placed at the front. While the communal areas are thus largely screened from the generic single-family houses that are very close by, the vineyards are selectively showcased through panoramic windows or perspectives beyond the edge of the courtyard.

photo_credit Veit Landwehr
Veit Landwehr
photo_credit Veit Landwehr
Veit Landwehr
photo_credit Veit Landwehr
Veit Landwehr
photo_credit Veit Landwehr
Veit Landwehr

Unfortunately, the Glasner house was not spared by the flood either, despite the flood protection measures on the ground floor. The water actually rose to 2 cm below the upper edge of the finished floor on the first floor. As a result, water penetrated the layer between the floor slab and the screed and drowned the thermal insulation. After the corresponding repair measures, which dragged on due to the enormous demand for workmen on site, the house is now inhabited again - and we are relieved.

photo_credit Veit Landwehr
Veit Landwehr
photo_credit Studio Hertweck
Studio Hertweck
photo_credit Studio Hertweck
Studio Hertweck
photo_credit Studio Hertweck
Studio Hertweck
photo_credit Studio Hertweck
Studio Hertweck
photo_credit Studio Hertweck
Studio Hertweck
