Casa dos Cajueiros (Cashew Tree House)
Nelson Kon

Set among the trees, Casa dos Cajueiros, a Terra Capobianco and Galeria Arquitetos project, focuses on integration with nature

Terra Capobianco como Arquitetos

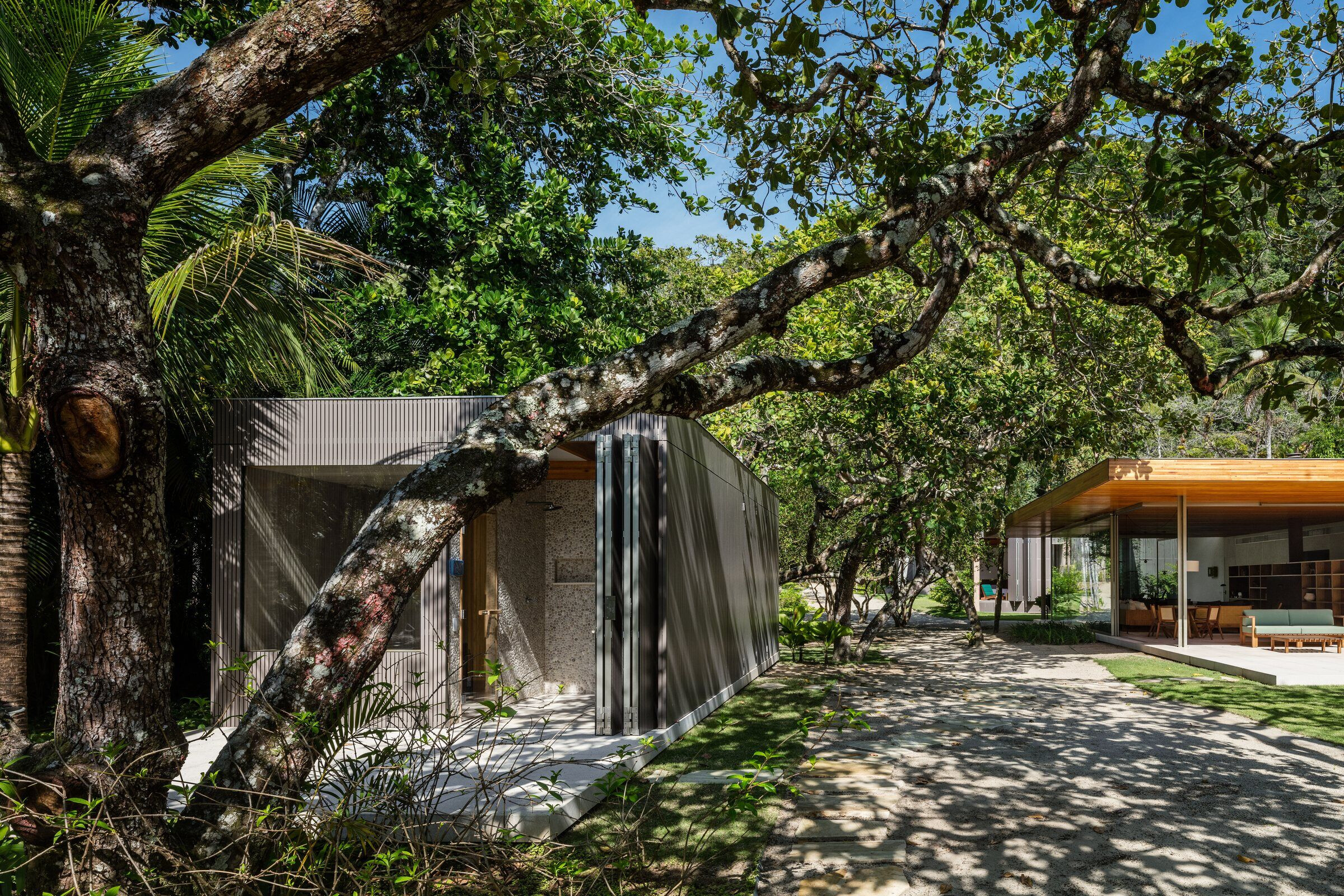

Casa dos Cajueiros (Cashew Tree House), a project by Terra Capobianco and Galeria Arquitetos, does not immediately reveal itself to bathers at Praia Vermelha do Sul, in Ubatuba, on the coast of São Paulo, where it is located. Its implementation is discreet, with the front of the lot - 33 meters wide and 80 meters deep - occupied by crooked trunks and irregular branches, which shelter the house between light and shade from the cashew tree tops. The project took advantage of the gap between the treetops and kept the pre-existing species on the land.

photo_credit Nelson Kon
Nelson Kon

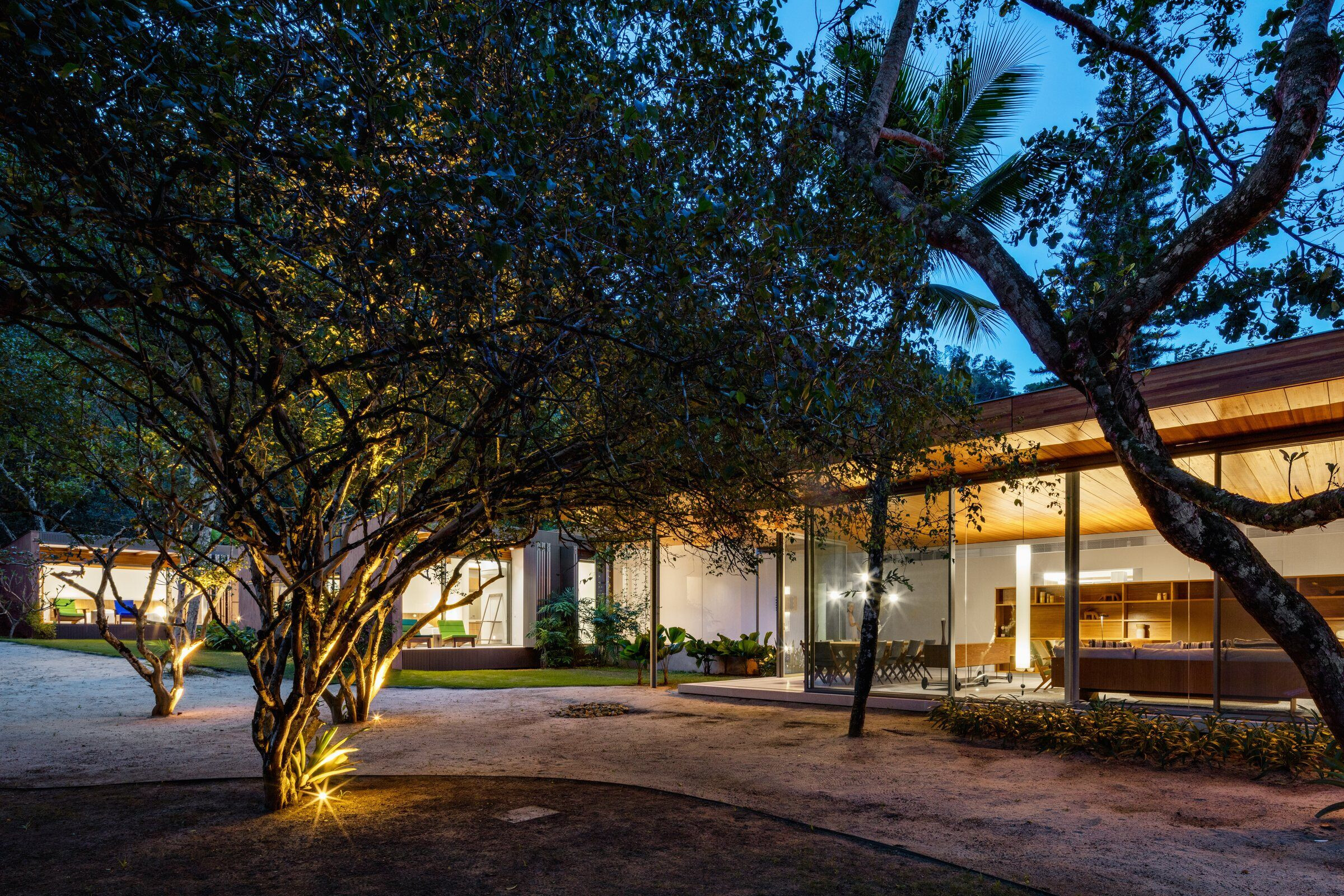

The residence is implanted on four levels. The lowest level, close to the sea, concentrates the social, leisure, and service areas. The occupation of the house is ground level and structured from a clear circulation axis, which connects the social and intimate areas. On the same level, a volume was built next to the beach access, housing the sauna and the surfboard storage area.

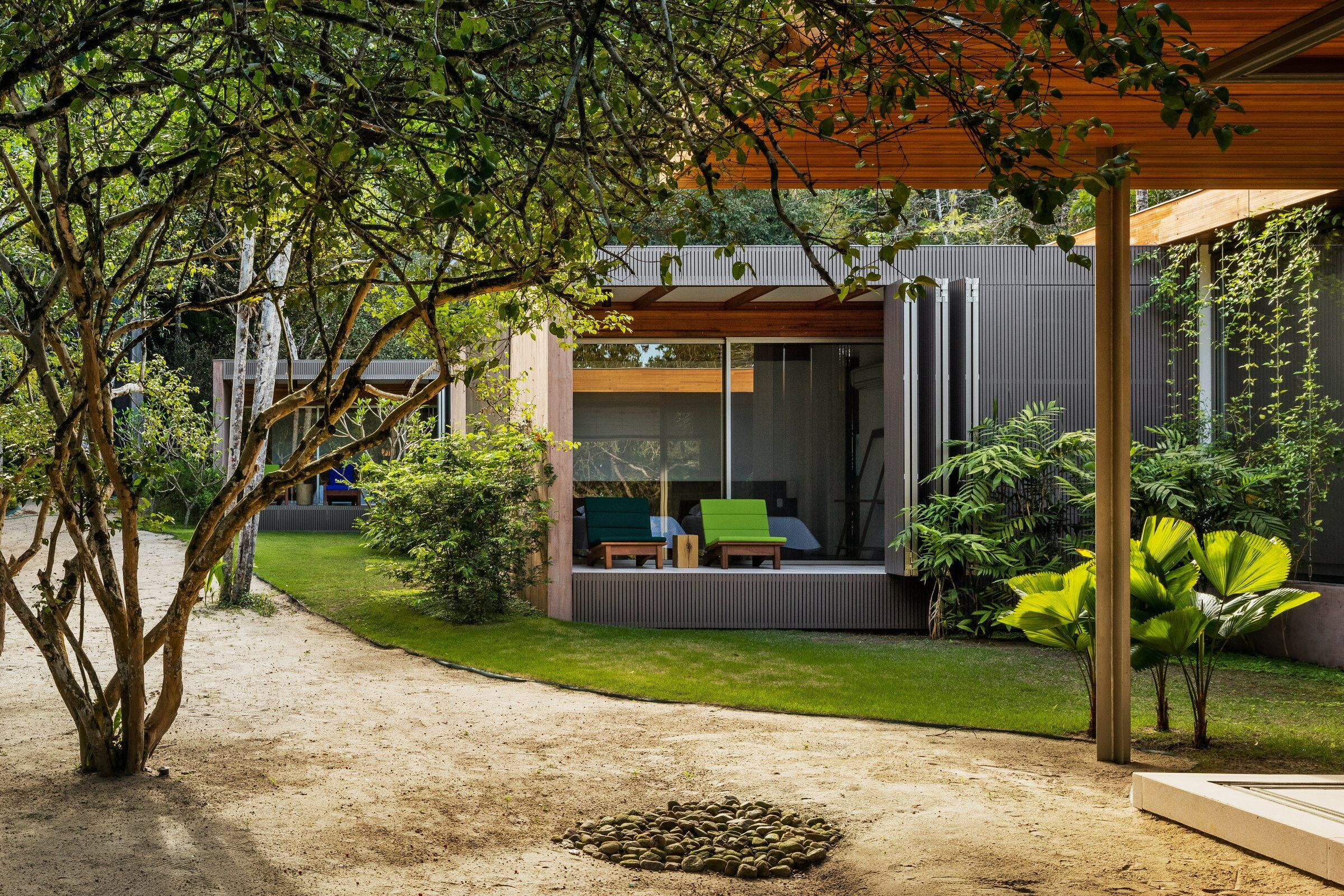

The six suites are distributed along a 33-meter-long corridor and were implemented in a way to allow a gap between them and the creation of balconies that access private patios.

photo_credit Nelson Kon
Nelson Kon

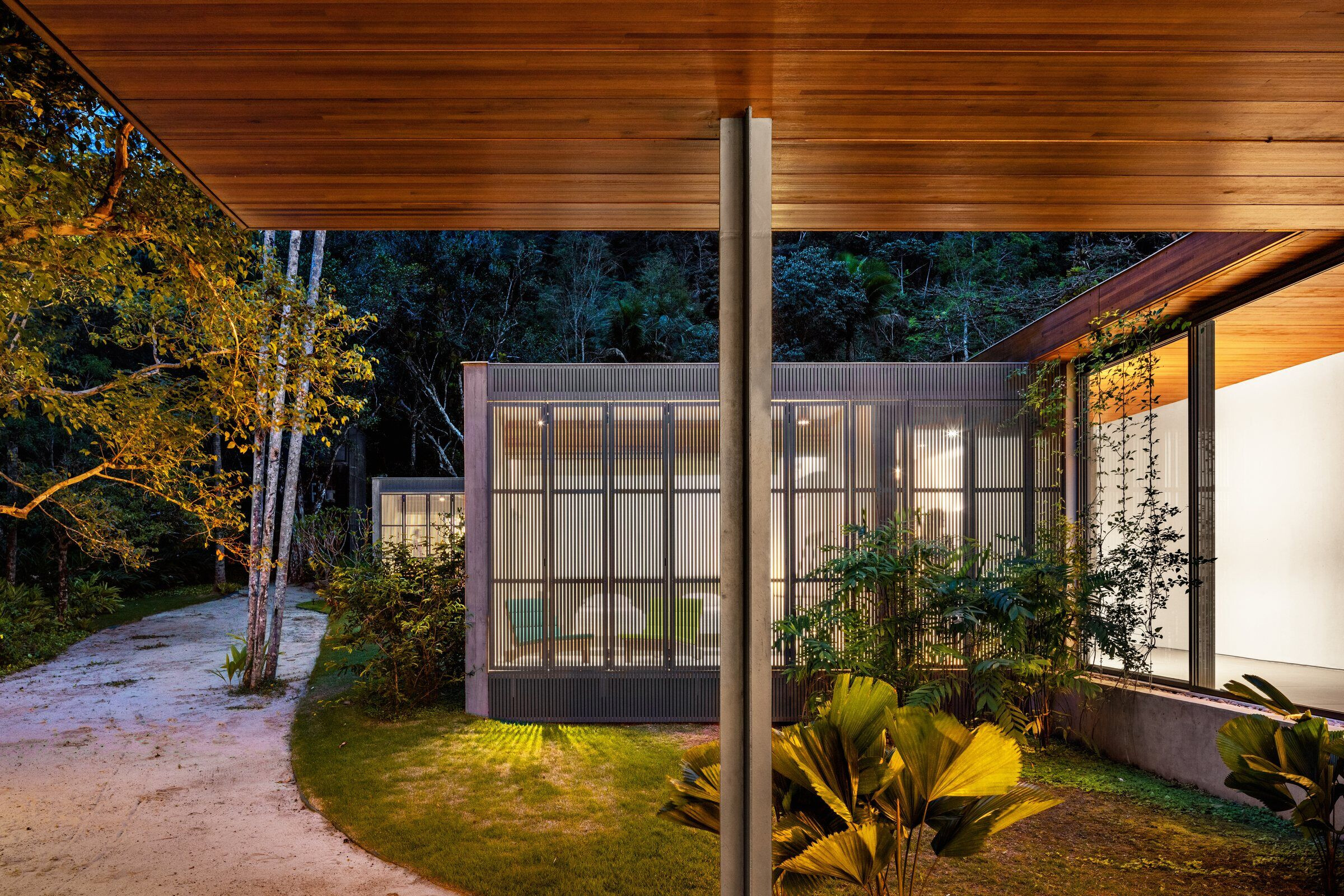

Pinkish-pigmented concrete gables define the bedroom modules, built in a mixed structure of glued laminated timber beams and wall paneling. The limit between inside and outside is provided by the Venetian skin in vertical slats, which provides visual permeability without interfering with the privacy of the suites.

The house structure mixes the conventional system in its base structure - with reinforced floor slab, and concrete pillars and gables - with the roof in laminated eucalyptus wood structure.

photo_credit Nelson Kon
Nelson Kon

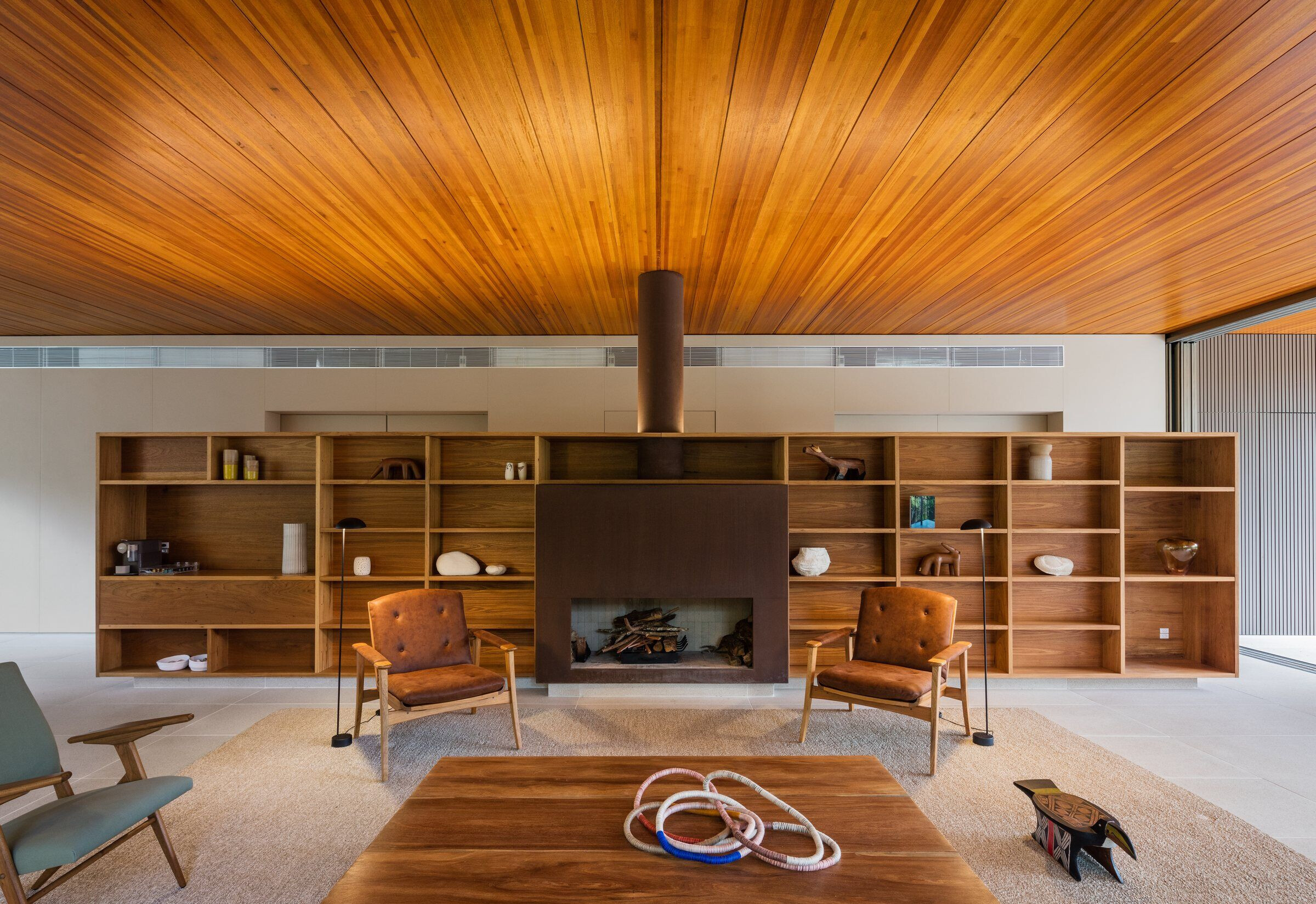

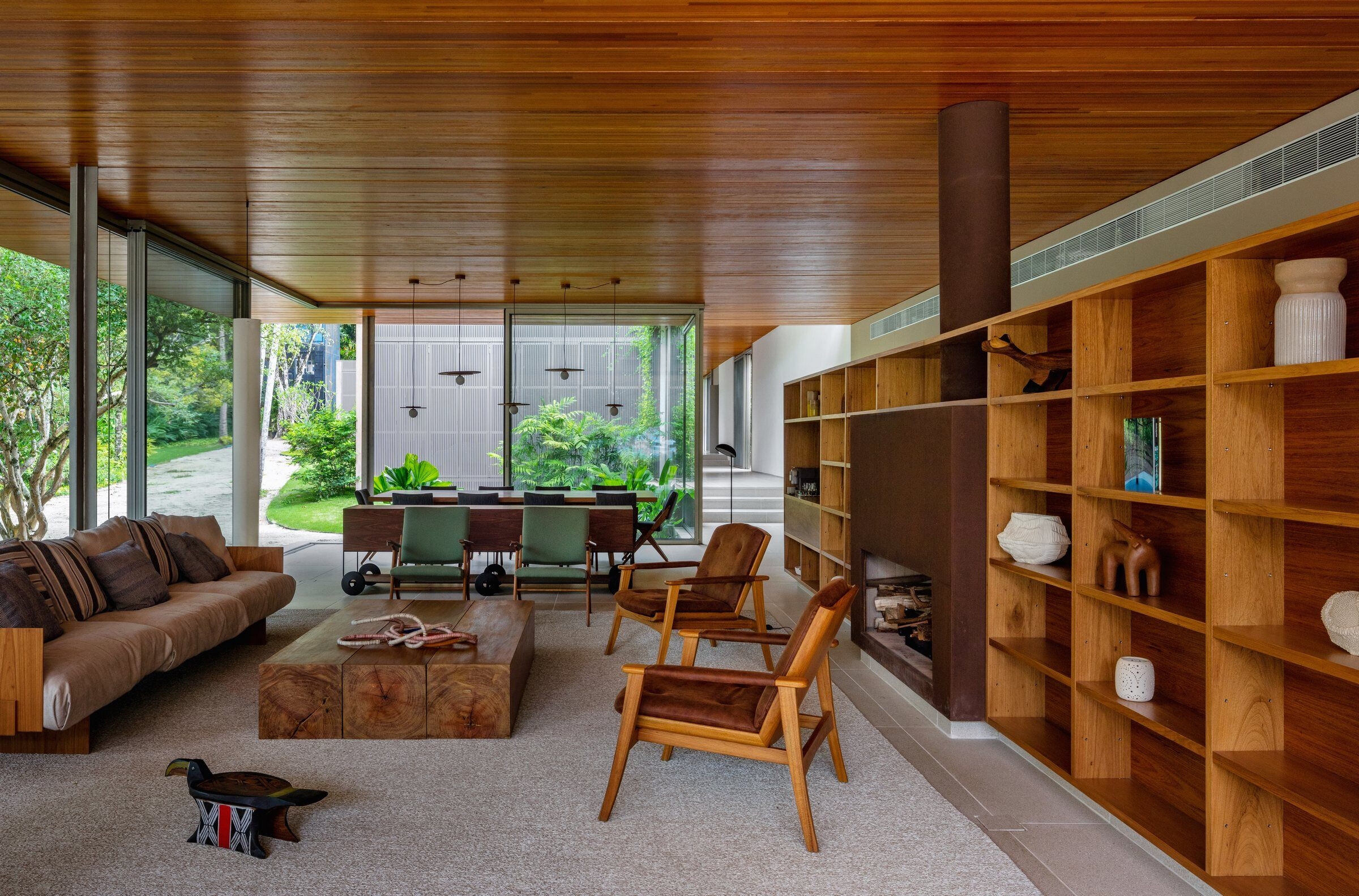

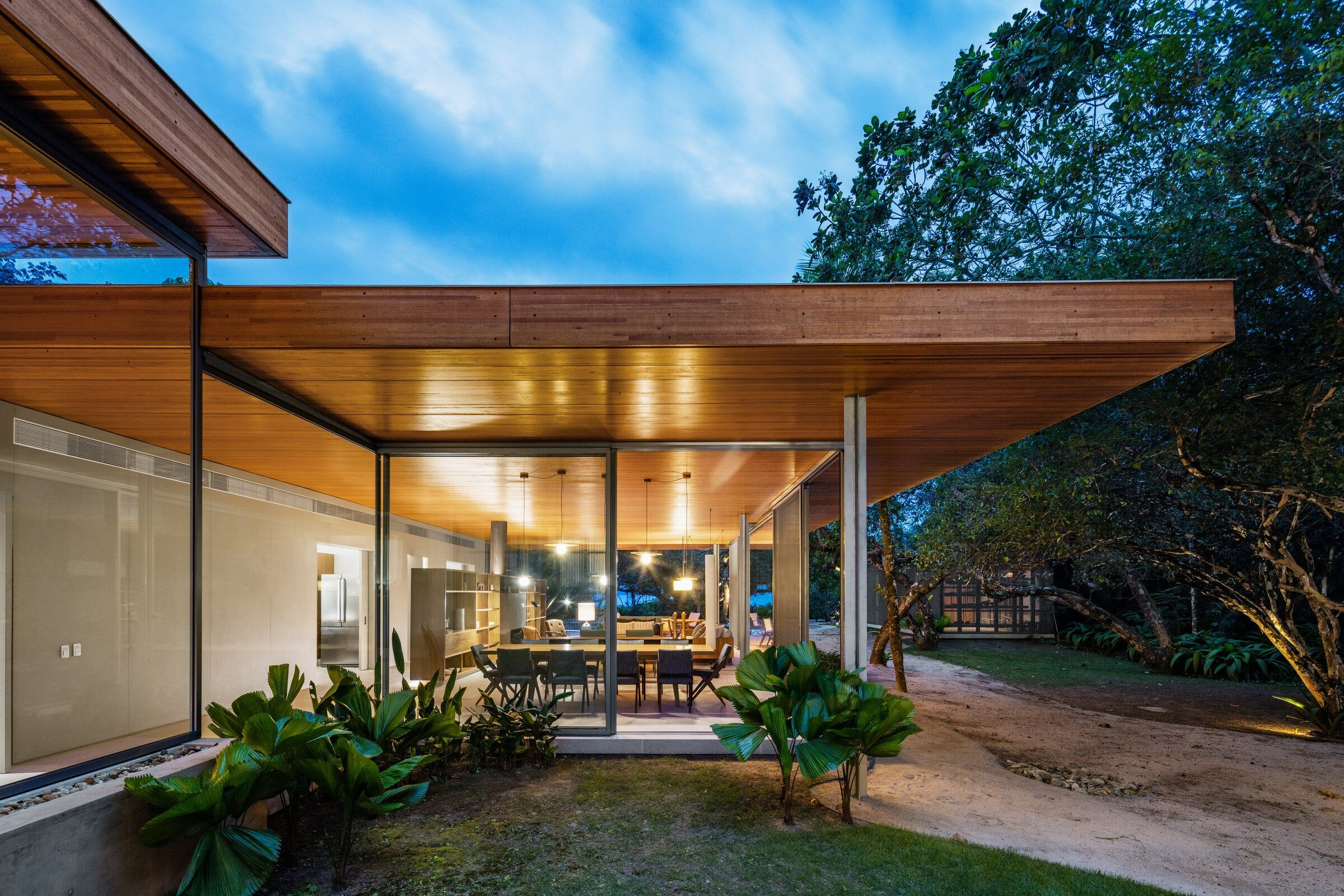

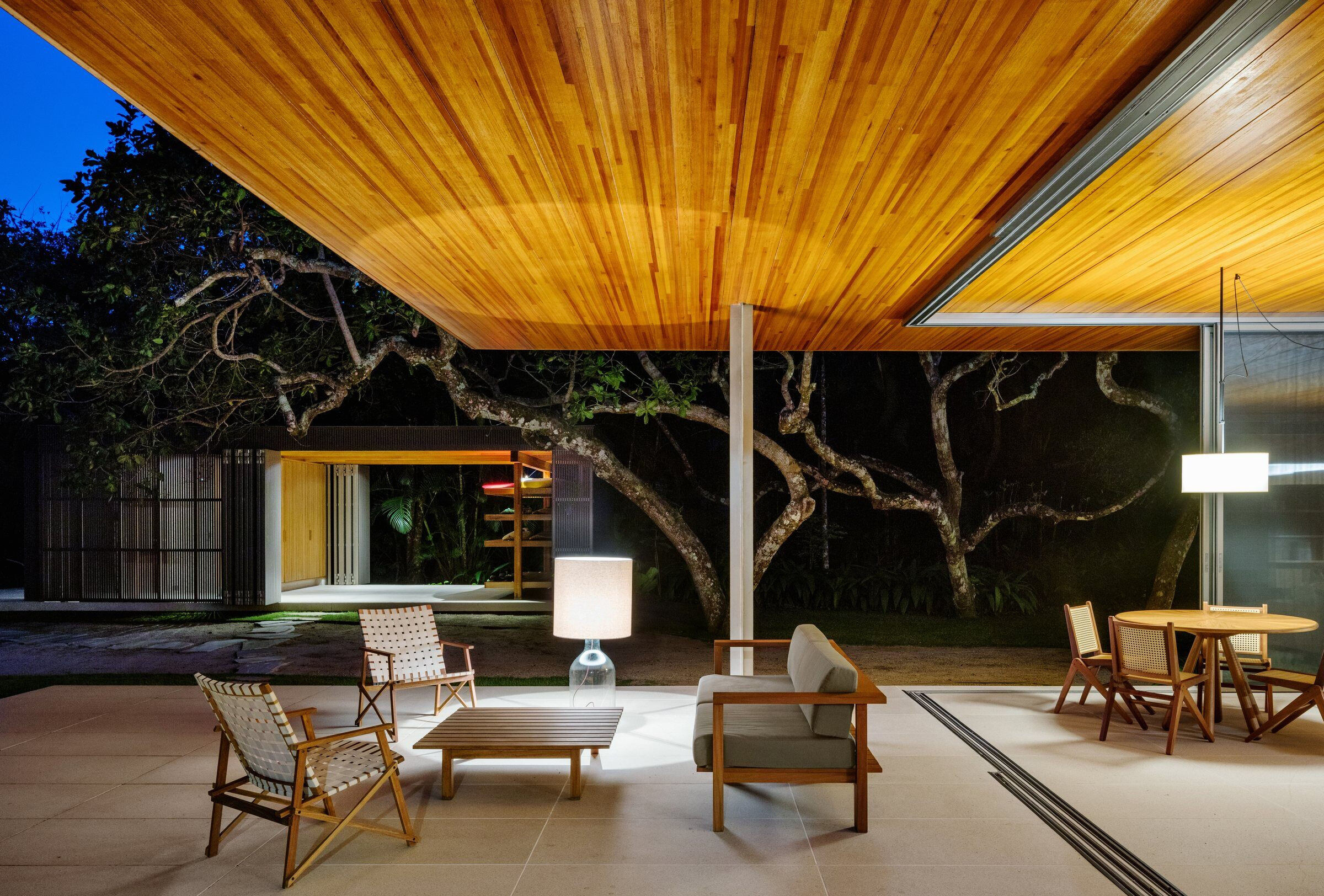

In the social area, 12 centimeters thick and 30-centimeter-wide wooden slabs, interlocked to form a large slab, span 7.30 meters plus 2.10 meters of overhang. In the transversal direction, an inverted beam, also made of wood, receives the load from the slabs and redistributes it on three slender metallic pillars. In the other direction, the result is a continuous space of 19 meters free of supports that opens 180 degrees to the surrounding landscape. Generous eaves protect the frames and provide shading for the interior spaces.

photo_credit Nelson Kon
Nelson Kon

The project adopted several passive design strategies to ensure environmental comfort for users, starting with the abundant presence of floor-to-ceiling windows that ensure constant air renewal, cross ventilation and natural lighting.

Team:
Authors: Terra Capobianco + Galeria Arquitetos
Responsible architects: Ana Terra Capobianco e Fernanda Neiva
Project team: Liliane Nambu
Construction: Pitta Arquitetura e Engenharia
Wood structure: Ita Construtora
Calculation of concrete structure: Leão e Associados
Concrete Consulting: Gabriel Regino
Installation Project: Ramoska e Castelani
Air conditioning design: Thermoplan
Lighting design: Lux Projetos
Landscaping: Giardino Planejamento de exteriores
