Set within a leafy enclave of the Hampstead Conservation Area in North London, a modernist townhouse now stands confidently refurbished for a young couple and their daughter, expertly designed by emerging architecture and interiors practice, Studio Hagen Hall.

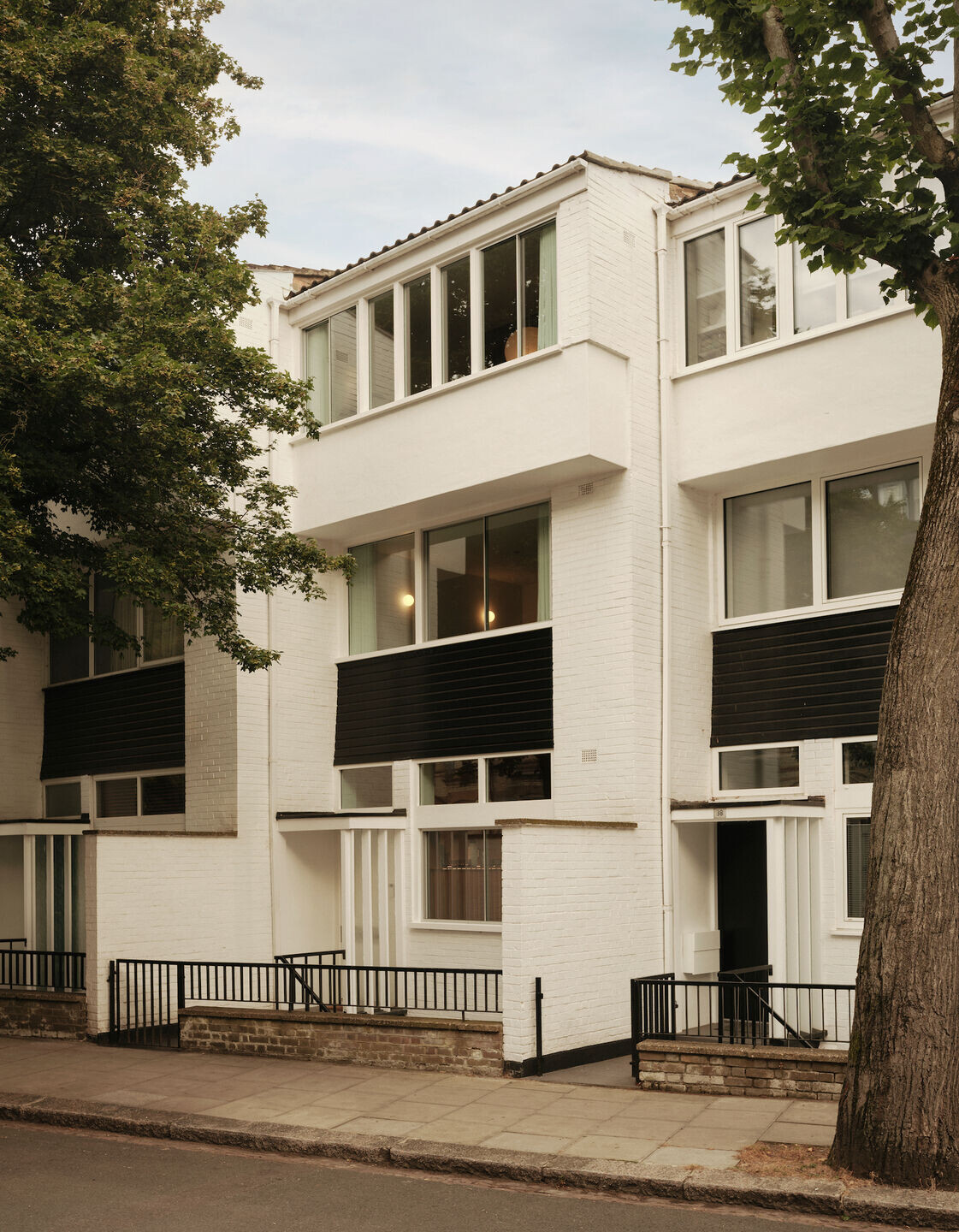

The home is part of a handsome cluster of nine properties, including five townhouses originally designed by South African architect Ted Levy, Benjamin & Partners in the late 1960s, representing a key part of progressive post war design thinking in London’s built history. Externally each of the neighbouring homes appear uniformly designed with subtle reference to Cape Town coastal developments in the 50s and 60s, but interiors had since been sporadically renovated, and the majority of them stripped of their modernist character. ‘Pine Heath’ is one of the last remaining houses to retain many original features still intact throughout.
Drawn to the original, mid-century charm and interiors of the home, the clients briefed Studio Hagen Hall to revive the tired terraced house into a warm, broken plan, polished home for their growing family, with a keen focus on upgrading its overall energy efficiency and performance.
As long time followers of the practice and admirers of previous completed projects, including Canyon House, the clients appointed Studio Hagen Hall in 2021 for its approachability, extensive experience in modernist restorations, and ability to deliver technically challenging architecture with warm, sensitive, and timelessly crafted interiors.
Studio Hagen Hall was initially appointed to lightly refurbish the home, involving only the kitchen, bathrooms and windows, but on careful inspection realised that the home’s true potential lay in much wider renovation. Studio Hagen Hall proposed a bespoke restoration encompassing the whole house that would improve operational efficiency and reduce overall project costs in the long term, and ultimately introduce a more sophisticated and pragmatic series of living spaces to suit a functional, life-long home.

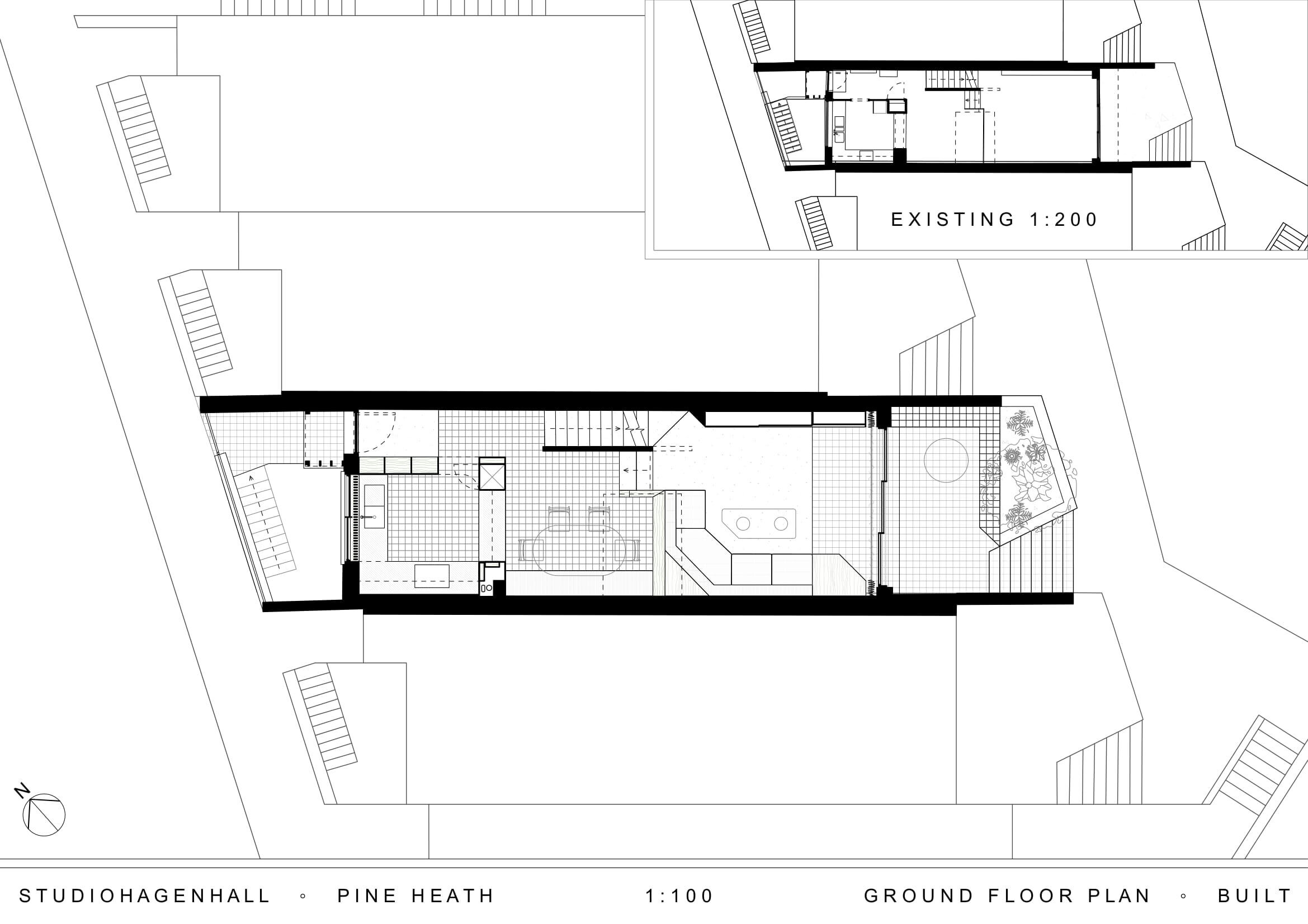

Alongside the aesthetic and energy-improvement brief for Pine Heath, spatial planning needed much consideration throughout the property. The new arrangement lays out a defined relationship between indoor and outdoor zones. A more logical connection is re-established between entrance, kitchen and living areas, and large amounts of storage and multi-purpose functionality are introduced into these communal spaces.

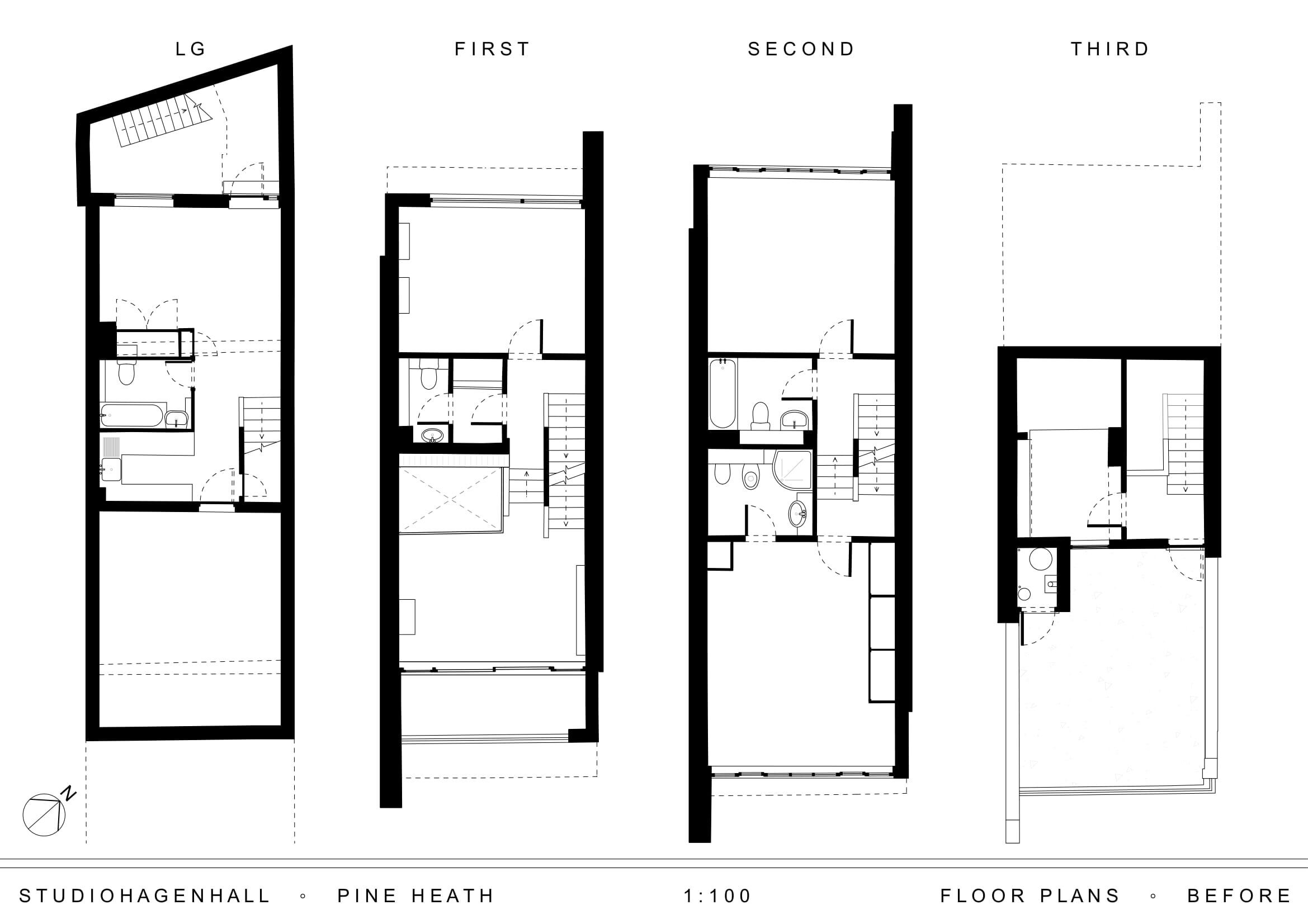

Previously a three bedroom home, Studio Hagen Hall has utilised the property’s five storeys to deliver a cleverly and subtly zoned floor plan, balancing social family space with distinct areas for rest, utility, work, and play. It now comprises an additional fourth guest bedroom suite-cum-gym in the basement, plus a new office and guest sleeping pod in the eaves of the property.

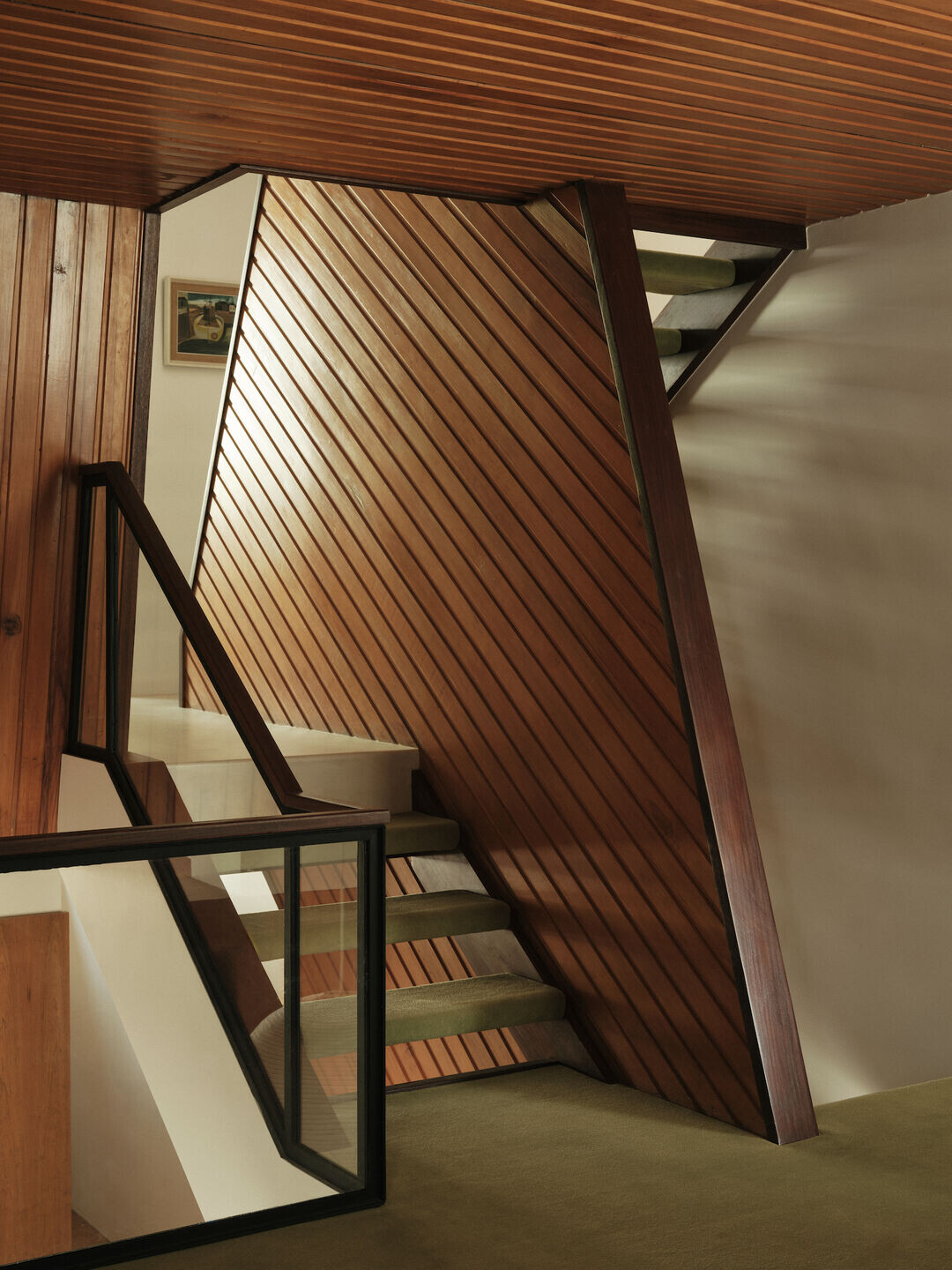

The original central stairwell and timber clad ceilings acted as a cue to reinstating the modernist characteristics of Pine Heath. The aged Paraná pine, a highly sought after endangered species, formed the foundation for the project’s material palette and further references Studio Hagen Hall’s sensitive design choices to work around and preserve original, indelible detail throughout the home.

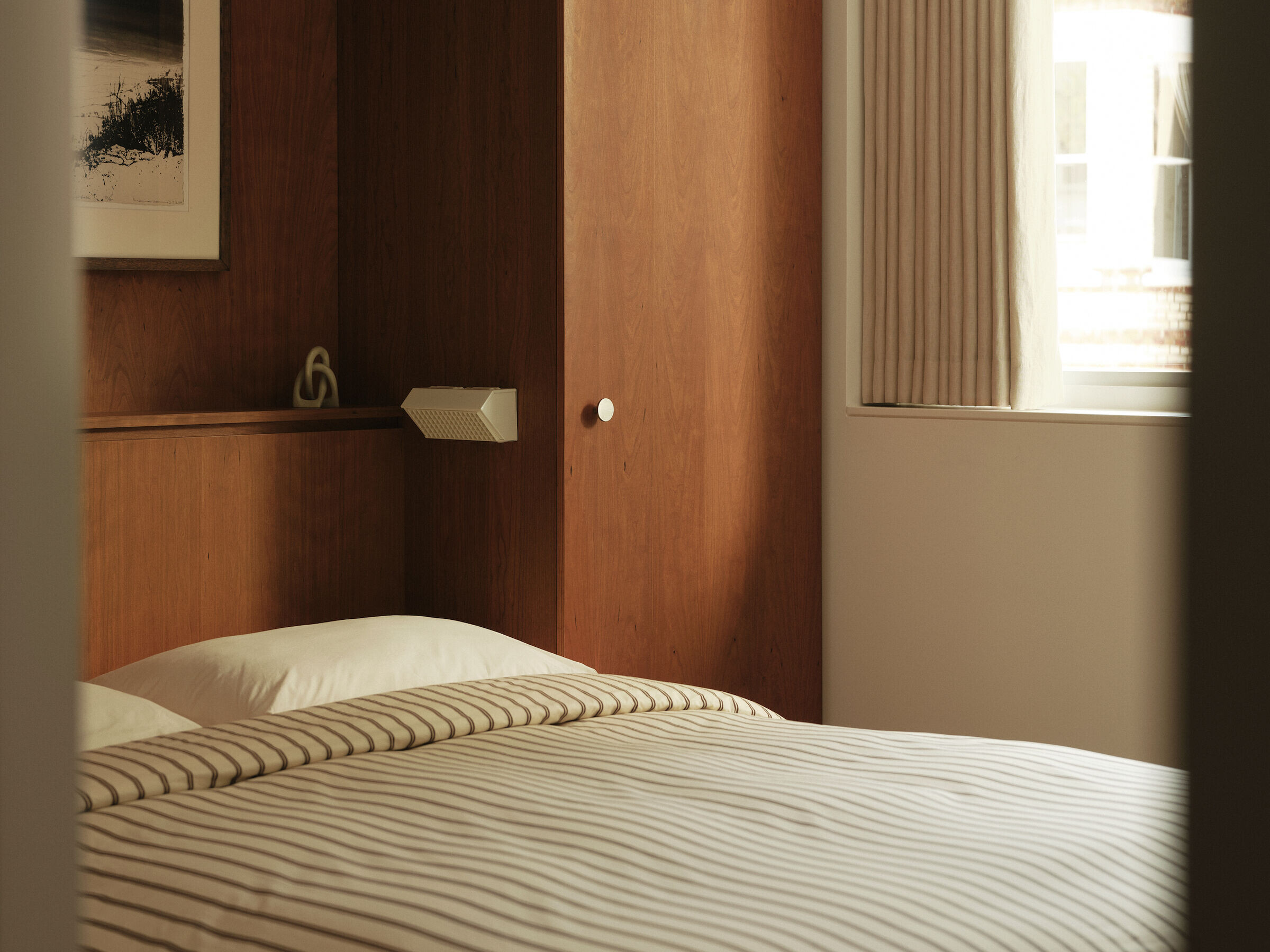

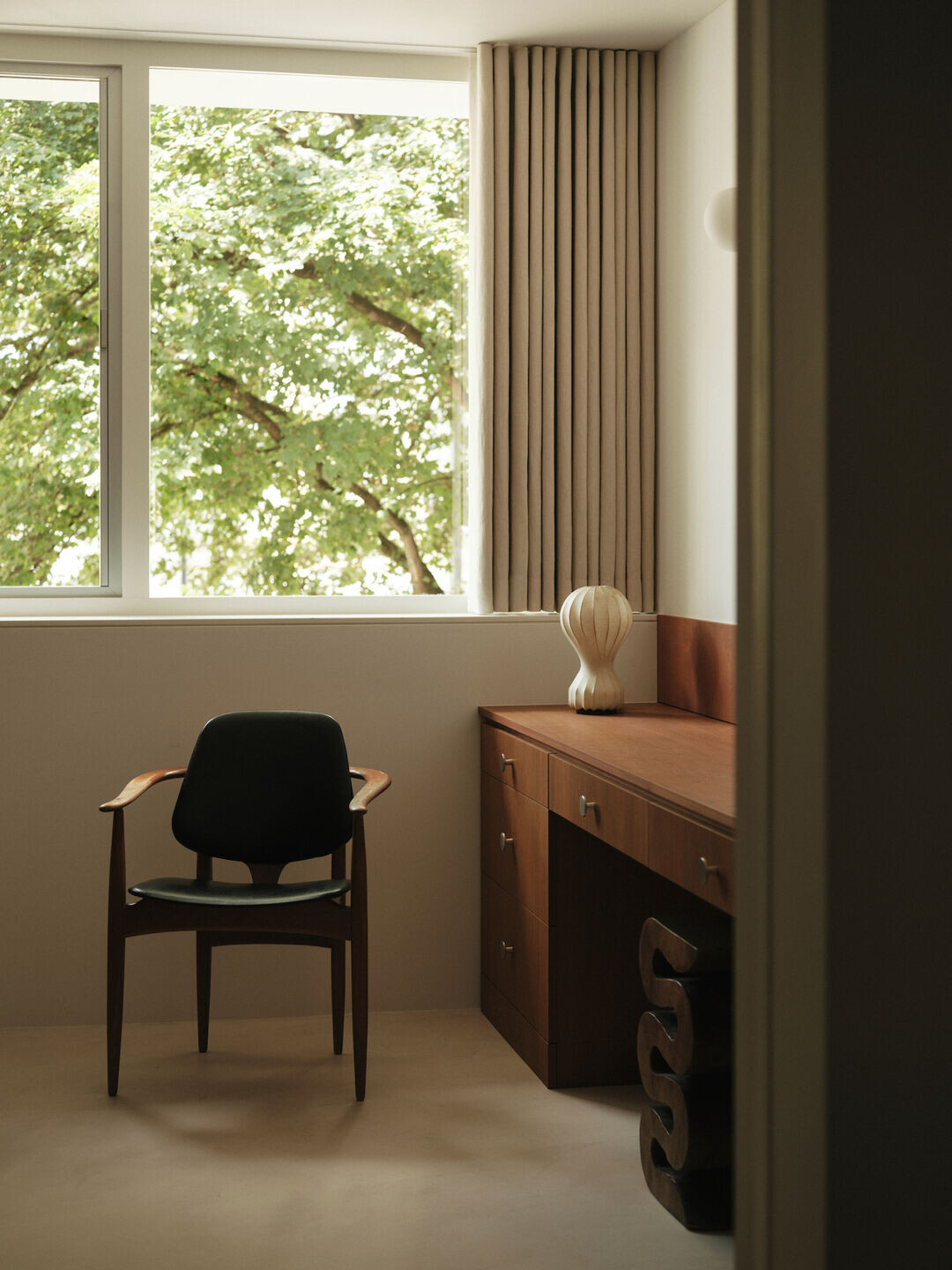

Other intentional devices are employed by Studio Hagen Hall to improve sightlines and accentuate spatial flow between each room. In the bedrooms, old doors and openings have been replaced with floor to ceiling pocket doors maintained at 2.5 metres high, and subtly re-aligned to allow perfect views all the way from the front to the back of the house. Storage spaces in the bedrooms, once running laterally, now run perpendicular so that windows and views are completely unfettered and viewed through deep timber-lined portals.
On entry, visitors are greeted by a generous hallway and a built-in cloak area complete with bench, with direct vistas reaching the terraced patio and communal gardens to the rear of the home. Navigating this visual journey, occupants are carried along acute horizontal datum lines, and a tile grid that continues throughout the whole house; window sills, joinery, and spaces with angular changes cut at 45 degree angles, highlight Studio Hagen Hall’s meticulous and exceedingly satisfying approach to spatial design.
The new bespoke kitchen nods to the client and Studio Hagen Hall’s shared interest in quality craftsmanship, showcased in dynamic, yet sensitive, material detailing. Brushed stainless steel worktops sit deftly atop the bespoke cabinetry, individually fitted to mask all domestic appliances such as the fridge, dishwasher and bespoke extractor fan hood. Custom designed and milled sapele handles mirroring existing mahogany accents throughout the house.
Period details of the original modernist kitchen have been accentuated for contemporary use; textured, stippolyte glass cabinetry together with a sweeping curved timber fascia now envelopes the kitchen, aligning with the original horizontal window datum and framing the serving hatch to the dining area. Custom mechanical louvre window shutters are installed above the sink providing privacy from the street when required.

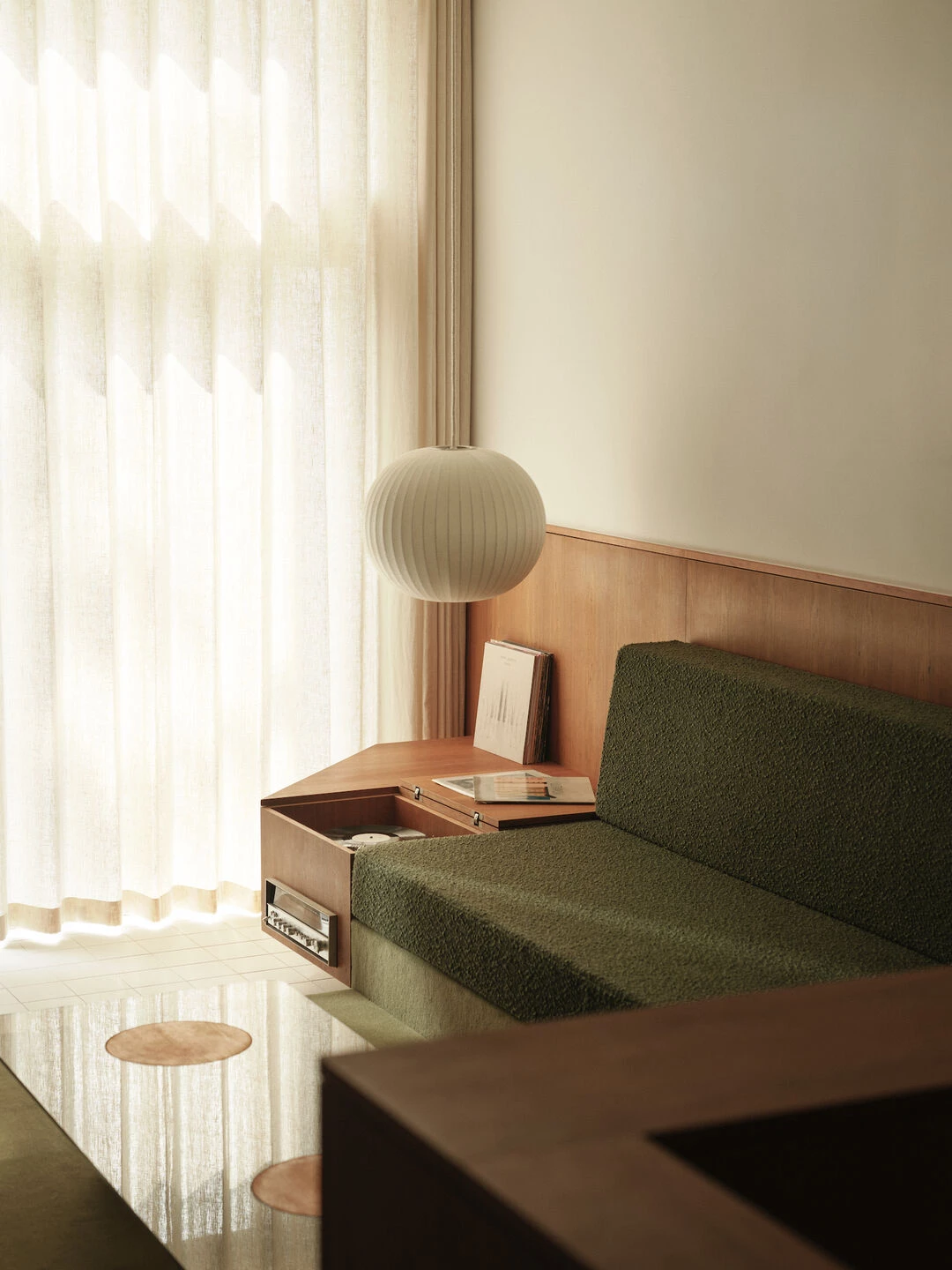

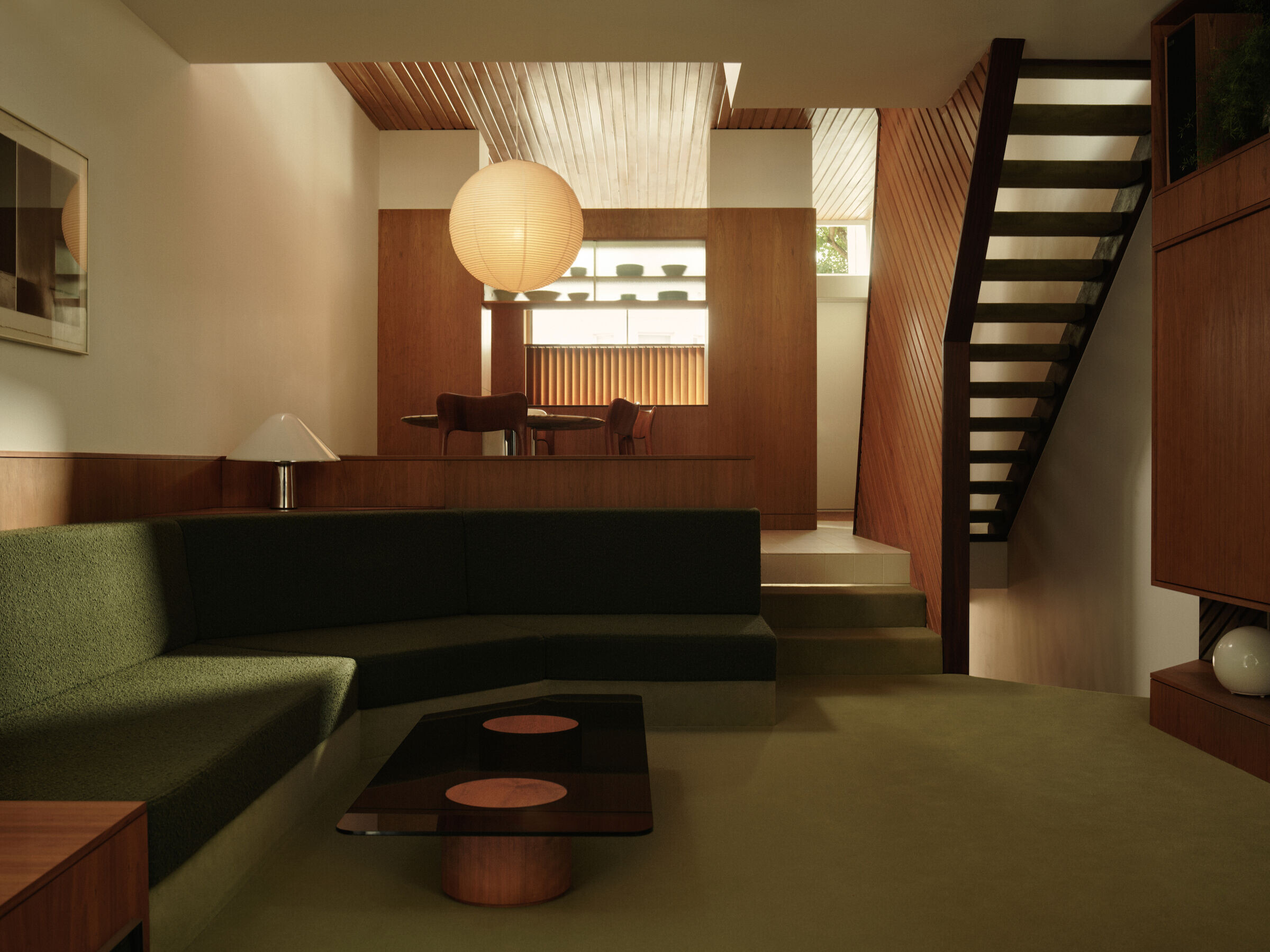

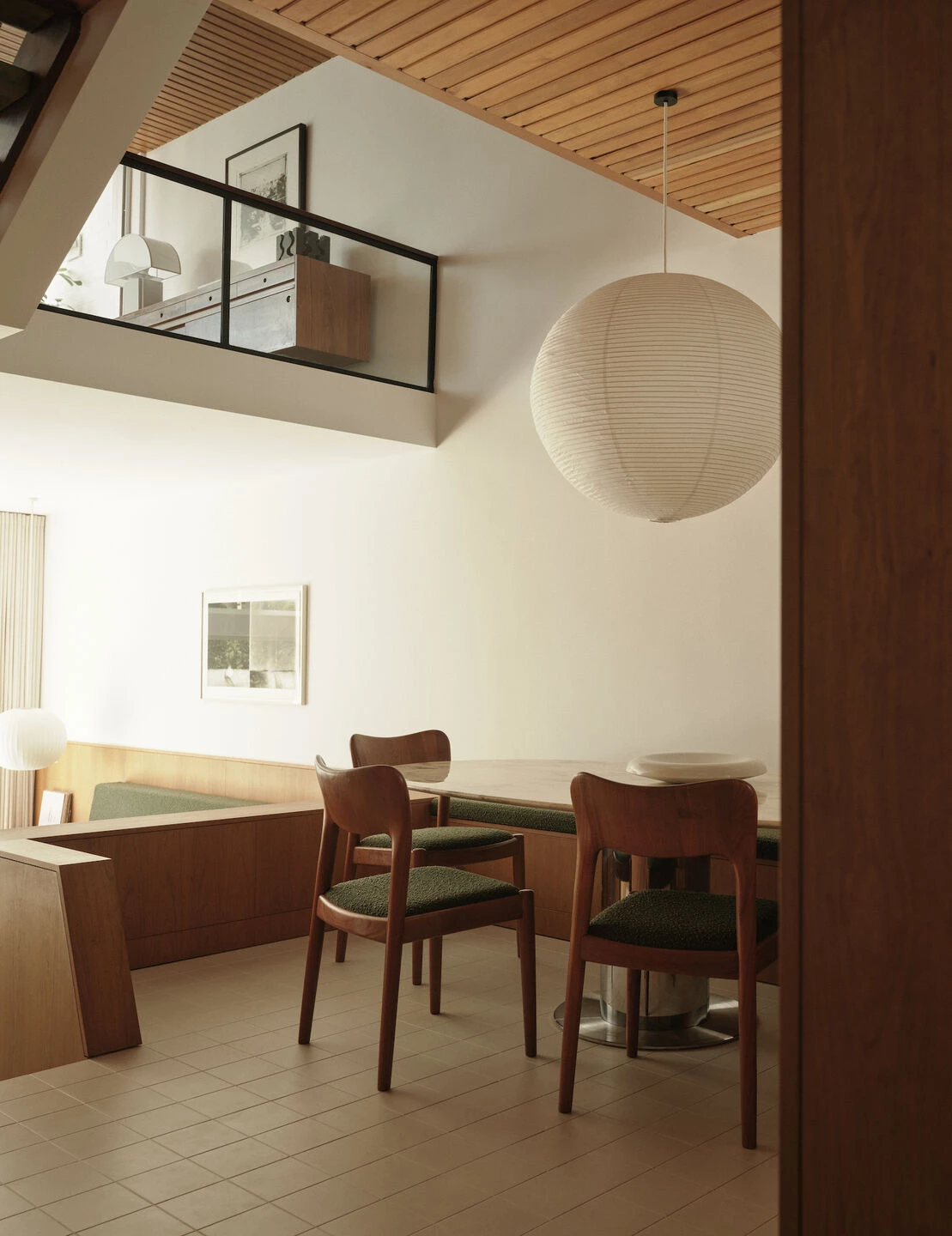

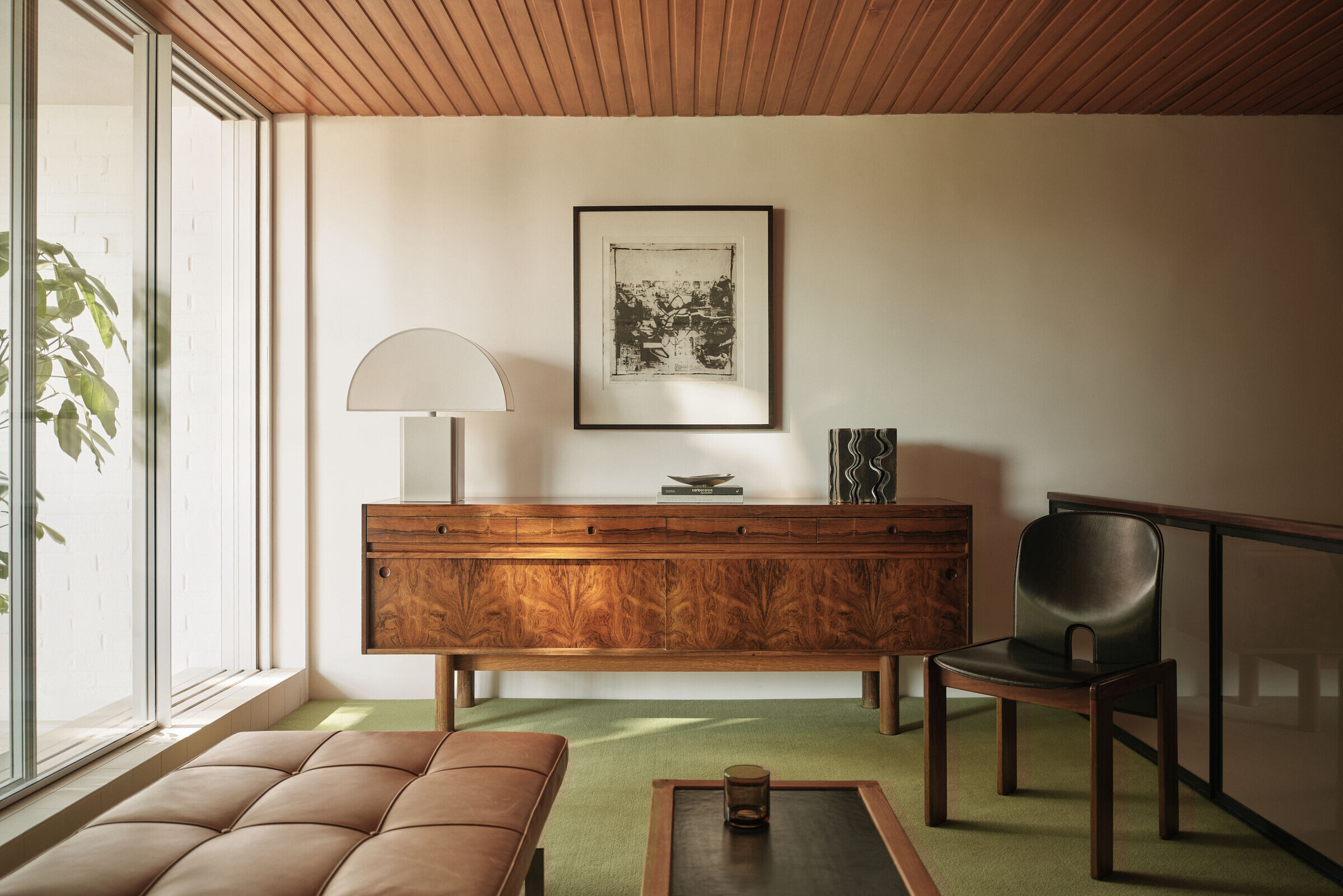

A warm yet refined palette forms the basis for the interior mood of Pine Heath. The joinery has been expertly crafted in a complimentary veneer, subtly stained to match the original Paraná pine strip ceiling and stair cladding within the home. Studio Hagen Hall added textures and colours to elevate the atmosphere, with rich greens tying the house together, displayed in the raised living area, stairwell and covering all of the bespoke upholstered furnishings in the living, dining and sleeping spaces.

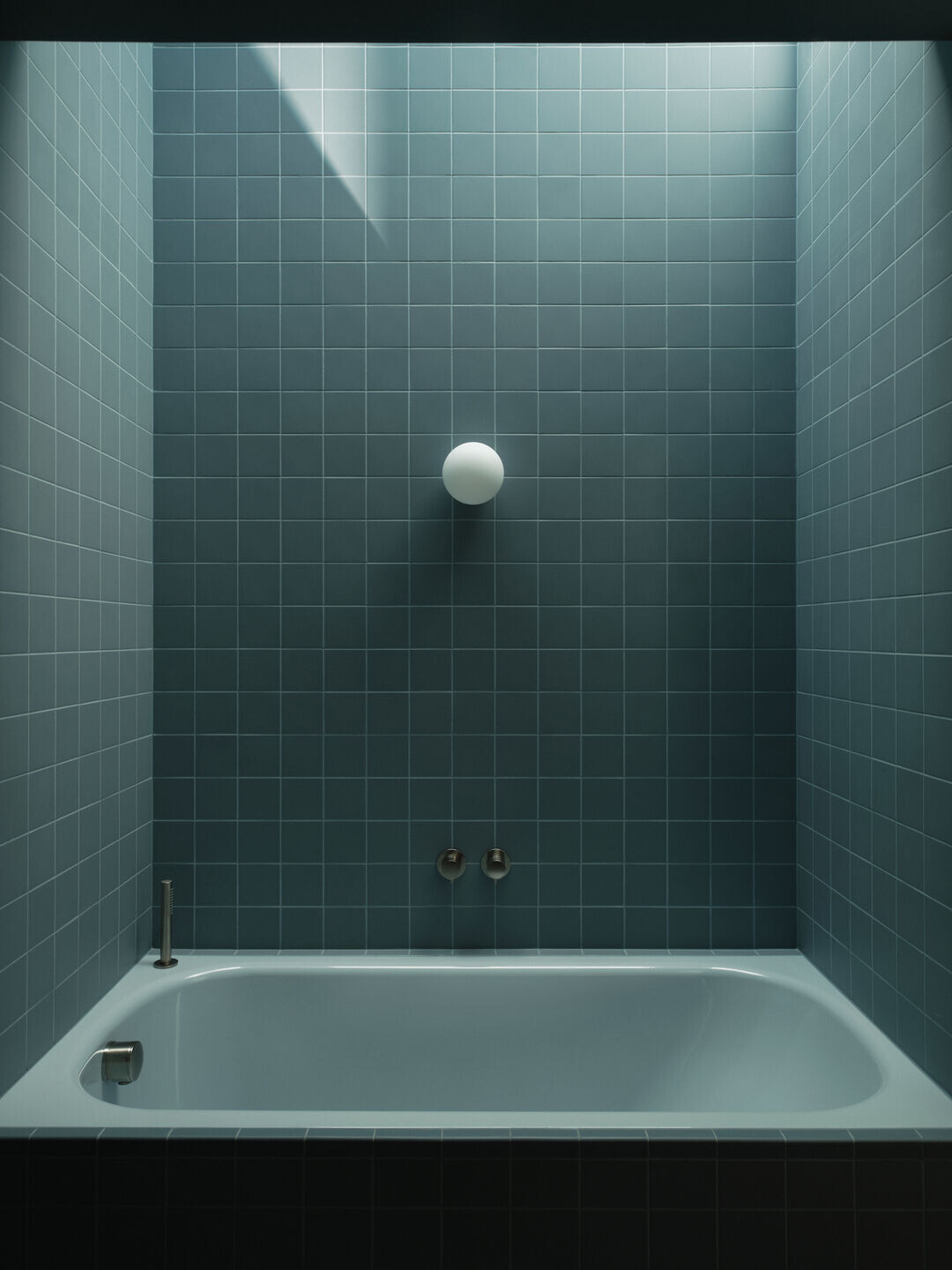

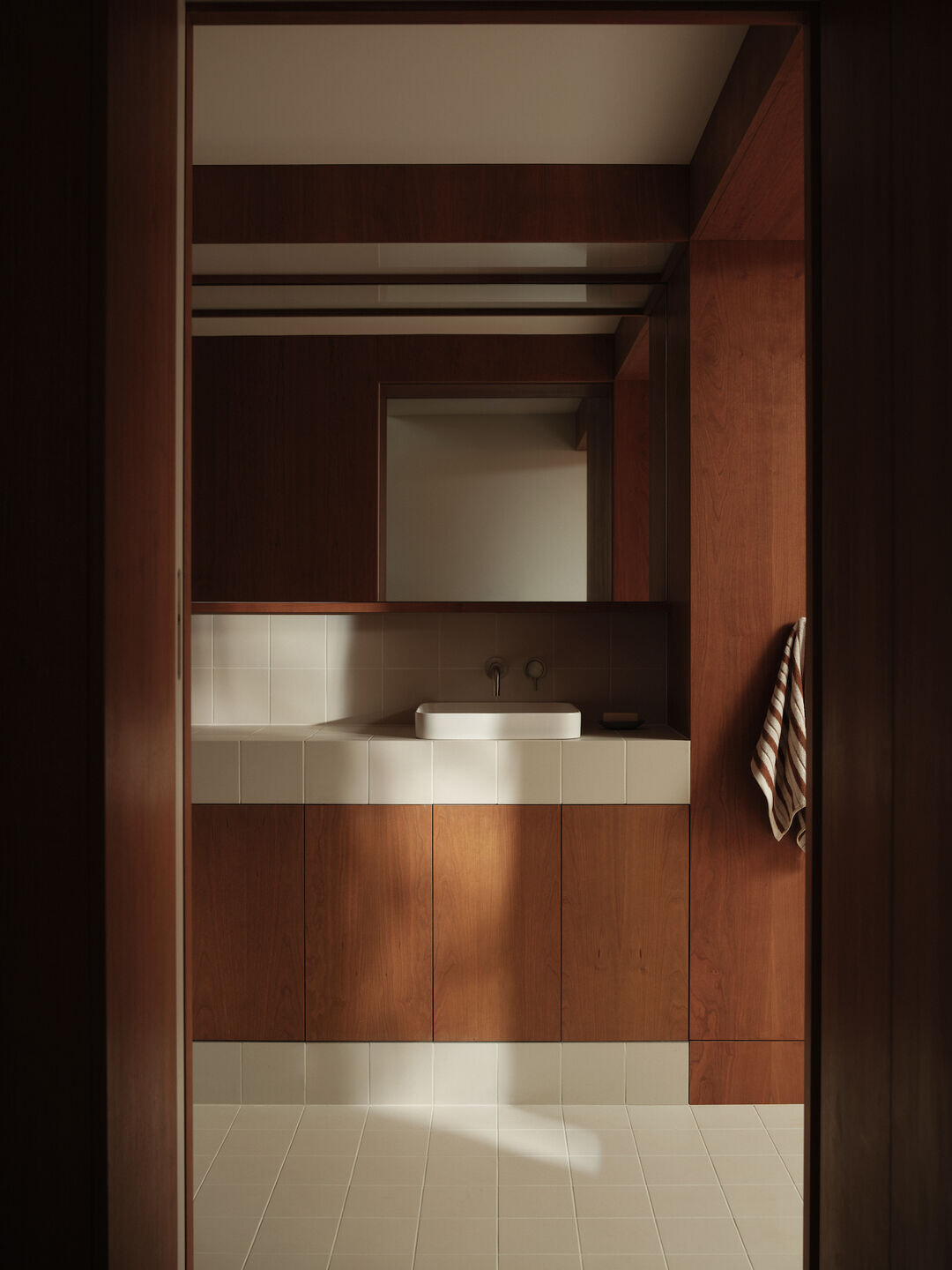

Earthen colours come together to create dramatic interior focal points, in the colour-drenched tiled bathrooms punctuated by browns, greens and blues, selectively chosen to compliment the cherry wood joinery, seamless mirror glazing and bespoke barisol lighting. Microcement flooring flows through the upper floors, deepening the relationship between materiality and ambience.
In numbers terms, Pine Heath now reads at a much higher thermal performance. Studio Hagen Hall retained the appearance of the original fenestration by replacing the original single-glazed aluminium windows with a custom hybrid solution, comprising timber frames with aluminium and vacuum glazing inserts.
Beyond the upgrade to the glazing, insulation was added internally to key areas of concrete and brick structure to drastically reduce cold-bridging. Trickle and adjustable air vents in each room provide fresh airflow via the new centralised mechanical extract ventilation system. The property also features integrated solar panels, an air-source heat pump, underfloor heating, and full roof insulation to meet and more than exceed standard energy efficiency requirements.
An exemplar in sensitively considered architecture and interior design, Pine Heath demonstrates a deep understanding of knowing how to preserve detail through bespoke craft. Studio Hagen Hall and their clients shared this clear vision from the outset for a timeless home for a young family to grow into and enjoy sustainably for years to come, creating a leading example of a London modernist house transformation.
Team:
Architect, Interior Designer, Joinery Design: Studio Hagen Hall
Joinery Design & Fabrication: TG + Co
Structural Engineer: Blue Engineering
Environmental Engineer: EPC Improvements
Main Contractor: Michal Madejczyk
Services Contractor: DanBro
Approved Inspector: All Building Control
Photographer: © Felix Speller
Materials Used:
Microcement: Remjo Django Finishes
Upholstery: Charles of Lloyd // A J Brett
Aluminium windows: panoramah!
Timber window frames: F&E Joinery
Tiles: Wincklemans, Porcelain stoneware (unglazed)
Curtains: Silent Gliss, The Cloth Shop "Wave" Linen
Joinery / Cabinetry / Panelling: TG + Co, Studio Hagen Hall Cherry (+ Pine stain)
Carpet (fitted): Balsan Les Best Balsan Nylon / Wool blend
Wall lights: W.L.P. Twist Type 124 Knud Christensen Painted steel
Wall lights Louis Poulson Homann Wall Lamp (vintage) Alfred Homann Painted steel
Small pendant: Herman Miller Nelson Bubble Pendant (vintage) George Nelson Paper & resin
Sofa: bespoke Studio Hagen Hall Tibor "Brecon"
Low table: TG + Co Levy Table Studio Hagen Hall Cherry & smoked glass
Table lamp: Guzzini Elpis (vintage) Luigi Massoni Milk glass & stainless steel
Table lamp: Ikea Fado Ikea Milk glass
Pendant: HAY Paper Shade HAY Paper
Chairs: Koefoeds Hornslet Ole Chair (vintage) Niels Koefoed Teak & Tibor "Brecon"
Table: unknown n/a (vintage) unknown Marble + stainless Steel
Bench: TG + Co bespoke Studio Hagen Hall Tibor "Brecon"
Cabinetry: TG + Co bespoke Studio Hagen Hall Cherry & stippolyte glass
Inset handles: TG + Co bespoke Studio Hagen Hall Sapele
Countertops: Cavendish Equipment bespoke Studio Hagen Hall Stainless steel
Tap / Mixer: Vola 590M Vola Stainless steel
Oven, Hob: Bertazzoni
Extract: Westin
Basin: Ceramica Cielo
Tap: Crosswater
Barrisol light: TG + Co
Hand Towel: Baina
Foldaway Bed: TG + Co / Hafele
Sideboard: Archie Shine
Table lamp: Guzzini, Olympe
Chair: Cassina, Model 121 Chair (vintage)
Daybed: Fritz Hansen, PK80 Daybed
Low table: Cassina
Table lamp: Flos, Gatto
Chairs: Elliots of Newbury Carver Chair (vintage)
Wall light (bedside): Ikea Type V204 (vintage)
Bed: ReFramed TR Bed
Bedding: Tekla Percale "Hopper Stripes"
Basin: Ceramica Cielo Shui Comfort (wall-hung)
Tap: Crosswater MPRO
Toilet: Ceramica Cielo Shui Comfort (wall-hung)
Barrisol light: TG + Co bespoke
Hand Towel: Baina Josephine "Tabac & Noir"
Towel radiator: West One Bathrooms Sussex Range
Towel: Baina Roman "Tabac & Noir"
Table lamp: Guzzini Elpis (vintage)
Wall light: Artemide Dioscuri
Chair Cassina: Zig Zag (vintage)
Bed: ReFramed TR Bed
Bedding: Tekla Percale "Winter White"
Table lamp (bedside): Frama T-Lamp
Bedside table: TG + Co SG Side-table
Screens: Haxch bespoke
Basin: Bette Commodo

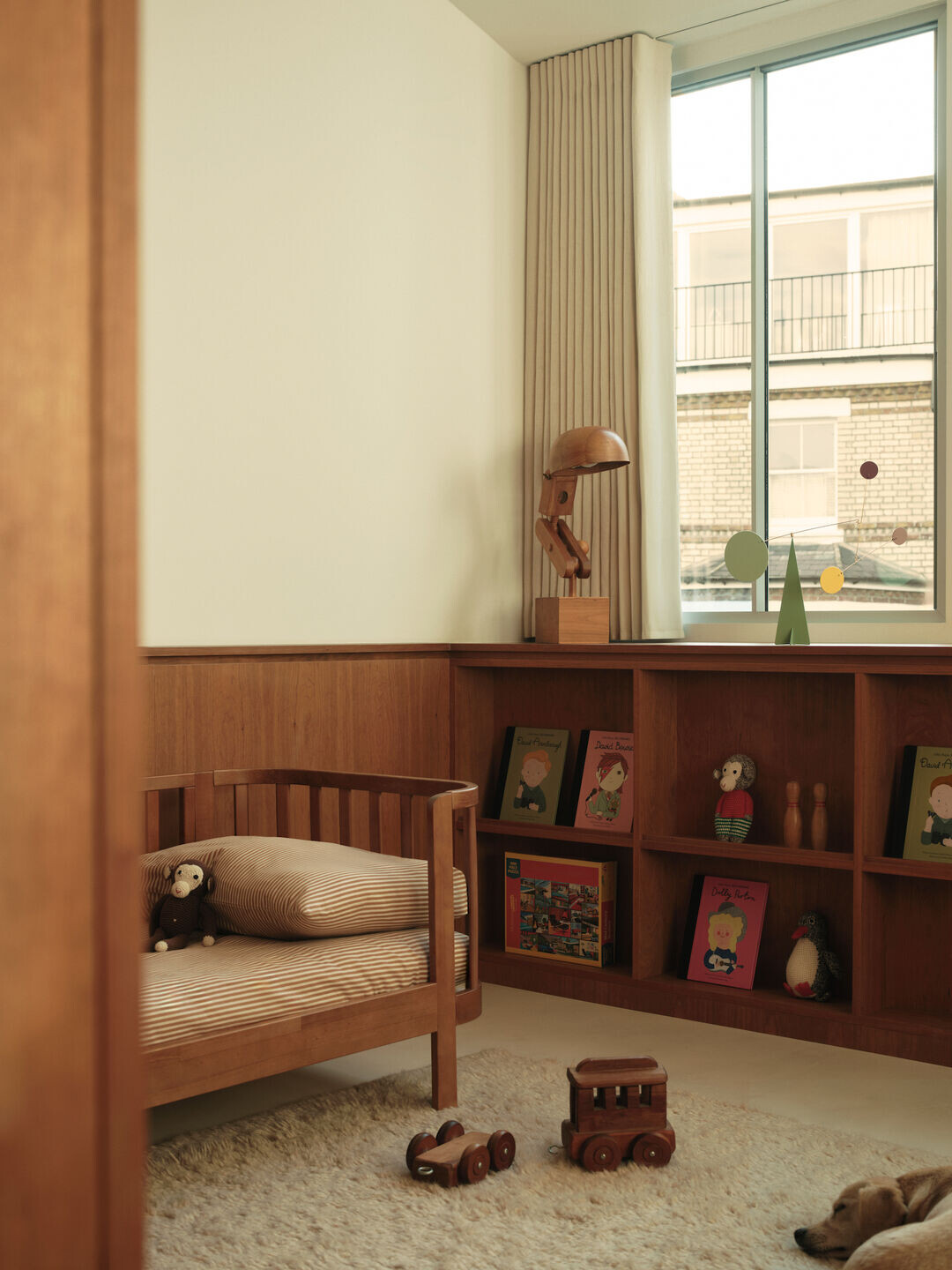

Cot / bed: Petit Amélie Cocoon Oval Toddler Bed
Bedding: Petit Amélie Striped "Beige & Caramel"
Mobile: Volta Seoul table mobile
Basin: Bette Lux Oval
Bath: Bette Classic
Wall light: Artemide Dioscuri
Desk chair: Inno "Select" collection
Desk lamp: unknown Ministerial table light (vintage)
Wall light: Nemo Lighting Applique à Volet Pivotant

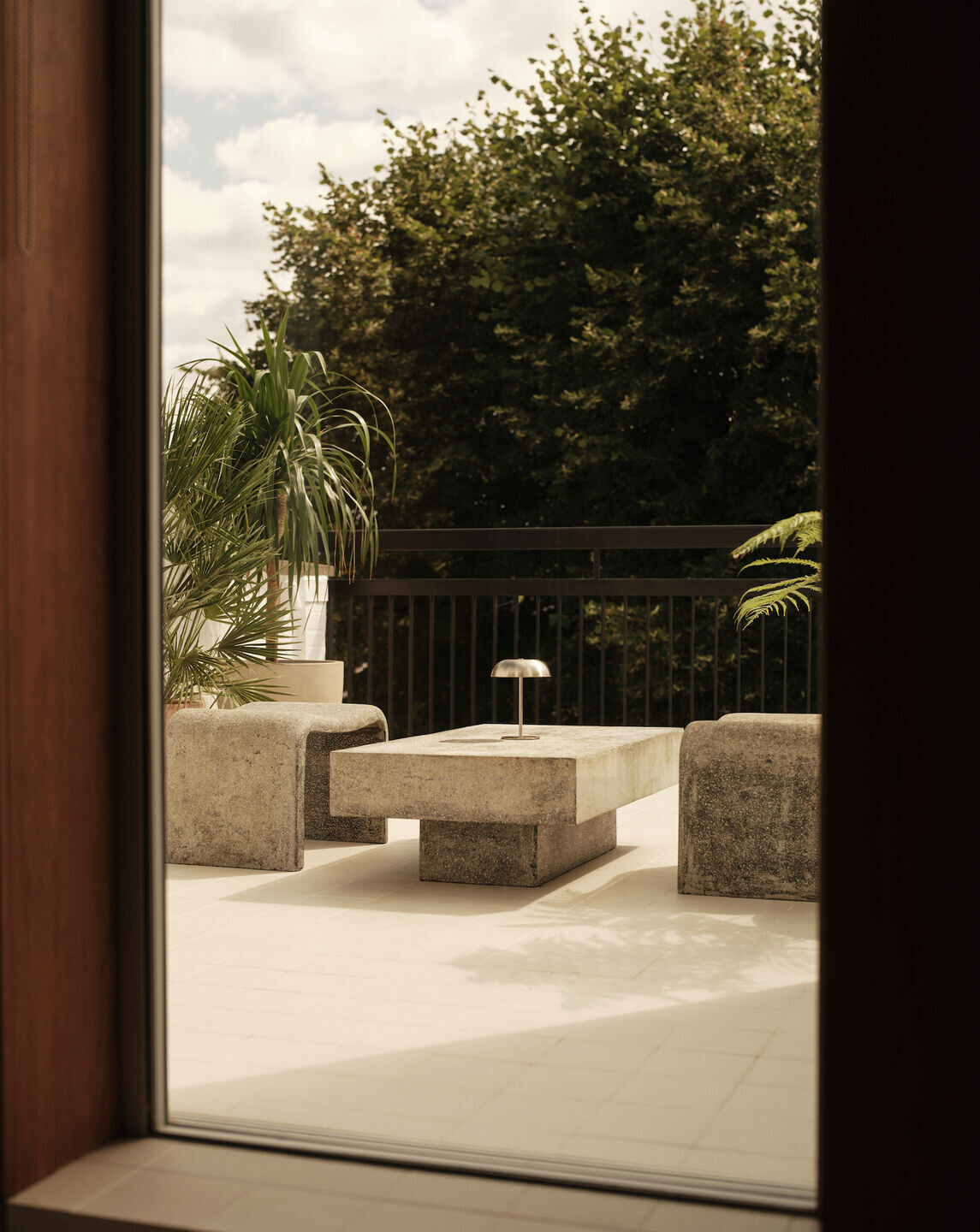

Concrete Table & Stools: "Anthony"
