Mirrors

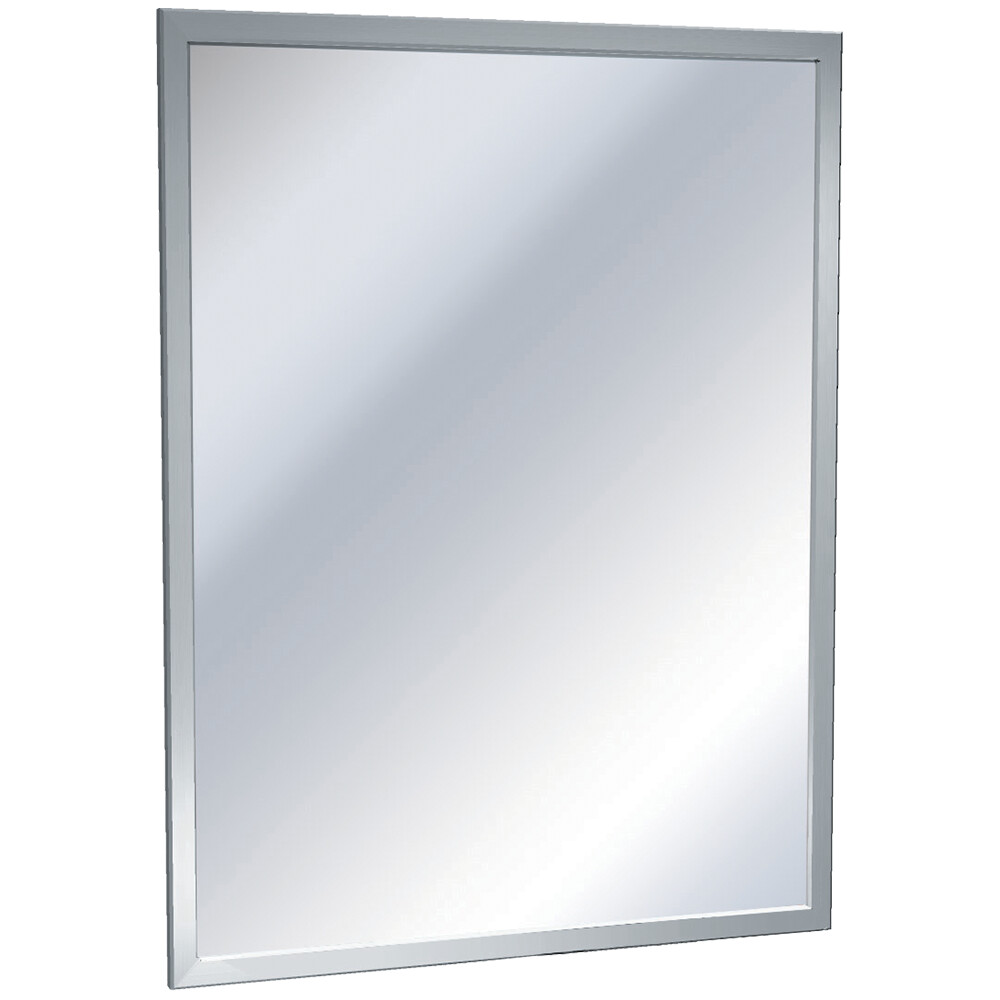

3⁄4″ x 5⁄8″ (19 x 16 mm) roll formed 18 gauge type 304 stainless steel angle has corners heliarc welded, ground and polished smooth to a uniform satin finish. Mirror is installed on a concealed hanging bracket that locks onto top and bottom of frame by tamper-proof set screws. Back plate is one piece, attached to frame with theft-resistant locking device.

See Price List for all sizes available.

Variable standard sizes and reflective surfaces available, choose appropriate suffix:

Plate Glass

• 0600-1620 – 16” wide x 20” high (406 x 508 mm)
• 0600-1624 – 16” wide x 24” high (406 x 610 mm)
• 0600-1630 – 16” wide x 30” high (406 x 762 mm)
• 0600-1824 – 18” wide x 24” high (457 x 610 mm)
• 0600-1830 – 18” wide x 30” high (457 x 762 mm)
• 0600-1836 – 18” wide x 36” high (457 x 914 mm)
• 0600-2060 – 20” wide x 60” high (508 x 1524 mm)
• 0600-2430 – 24” wide x 30” high (610 x 762 mm)
• 0600-2436 – 24” wide x 36” high (610 x 914 mm)
• 0600-2442 – 24” wide x 42” high (610 x 1067 mm)
• 0600-2448 – 24” wide x 48” high (610 x 1219 mm)
• 0600-2460 – 24” wide x 60” high (610 x 1524 mm)
• 0600-2472 – 24” wide x 72” high (610 x 1829 mm)
• 0600-3036 – 30” wide x 36” high (610 x 914 mm)
• 0600-3636 – 36” wide x 36” high (914 x 914 mm)
• 0600-3648 – 36” wide x 48” high (914 x 1219 mm)
• 0600-4830 – 48” wide x 30” high (1219 x 762 mm)
• 0600-4836 – 48” wide x 36” high (1219 x 914 mm)
• 0600-6036 – 60” wide x 36” high (1524 x 914 mm)
• 0600-7236 – 72” wide x 36” high (1829 x 914 mm)

Tempered Glass

• 0600-B1824 – 18” wide x 24” high (457 x 610 mm)
• 0600-B1830 – 18” wide x 30” high (457 x 762 mm)
• 0600-B1836 – 18” wide x 36” high (457 x 914 mm)
• 0600-B2430 – 24” wide x 30” high (610 x 762 mm)
• 0600-B2436 – 24” wide x 36” high (610 x 914 mm)
• 0600-B2448 – 24” wide x 48” high (610 x 1219 mm)
• 0600-B2460 – 24” wide x 60” high (610 x 1524 mm)
• 0600-B2472 – 24” wide x 72” high (610 x 1829 mm)

Stainless Steel, Type 304 with #8 Finish

• 0600-C1418 – 14” wide x 18” high (356 x 457 mm)
• 0600-C1824 – 18” wide x 24” high (457 x 610 mm)
• 0600-C1830 – 18” wide x 30” high (457 x 762 mm)
• 0600-C2430 – 24” wide x 30” high (610 x 762 mm)
• 0600-C2436 – 24” wide x 36” high (610 x 914 mm)
• 0600-C2460 – 24” wide x 60” high (610 x 1524 mm)

0600-41 Series

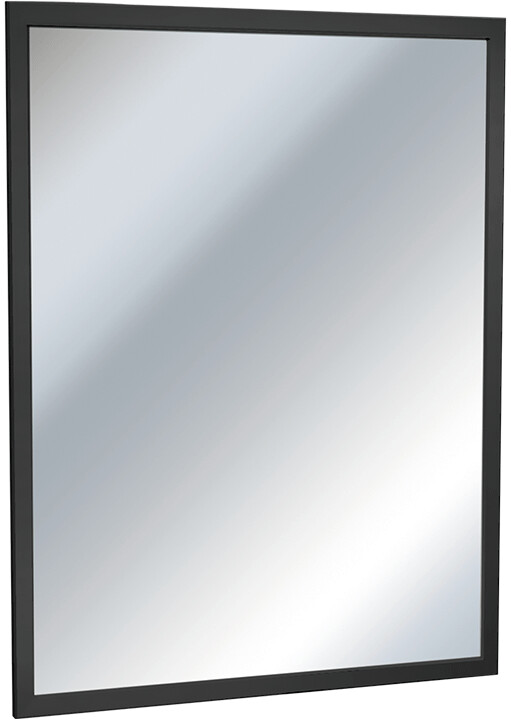

MATTE BLACK STAINLESS STEEL INTER-LOK ANGLE FRAME MIRROR

ASI’s Matte Black Collection provides a chic alternative for modern washrooms. Carefully curated to be versatile and powder coated for added durability, these accessories are ready to make a statement in any setting. The boldness of black creates an air of sophistication, while the subtlety of the matte finish exudes warmth.

3⁄4″ x 5⁄8″ (19 x 16 mm) roll formed 18 gauge type 304 stainless steel angle frame has corners heliarc welded, ground and polished smooth. Mirror is installed on a concealed hanging bracket that locks onto top and bottom of frame by tamper-proof set screws. Back plate is one piece, attached to frame with theft- resistant locking device.

• 0600-1836-41 – 18” wide x 36” high (457 x 914 mm)
• 0600-2436-41 – 24” wide x 36” high (610 x 914 mm)
• 0600-2448-41 – 24” wide x 48” high (610 x 1219 mm)

0620 Series

STAINLESS STEEL CHAN-LOK FRAME MIRRORS, VARIABLE REFLECTIVE SURFACES AND SIZES

0640

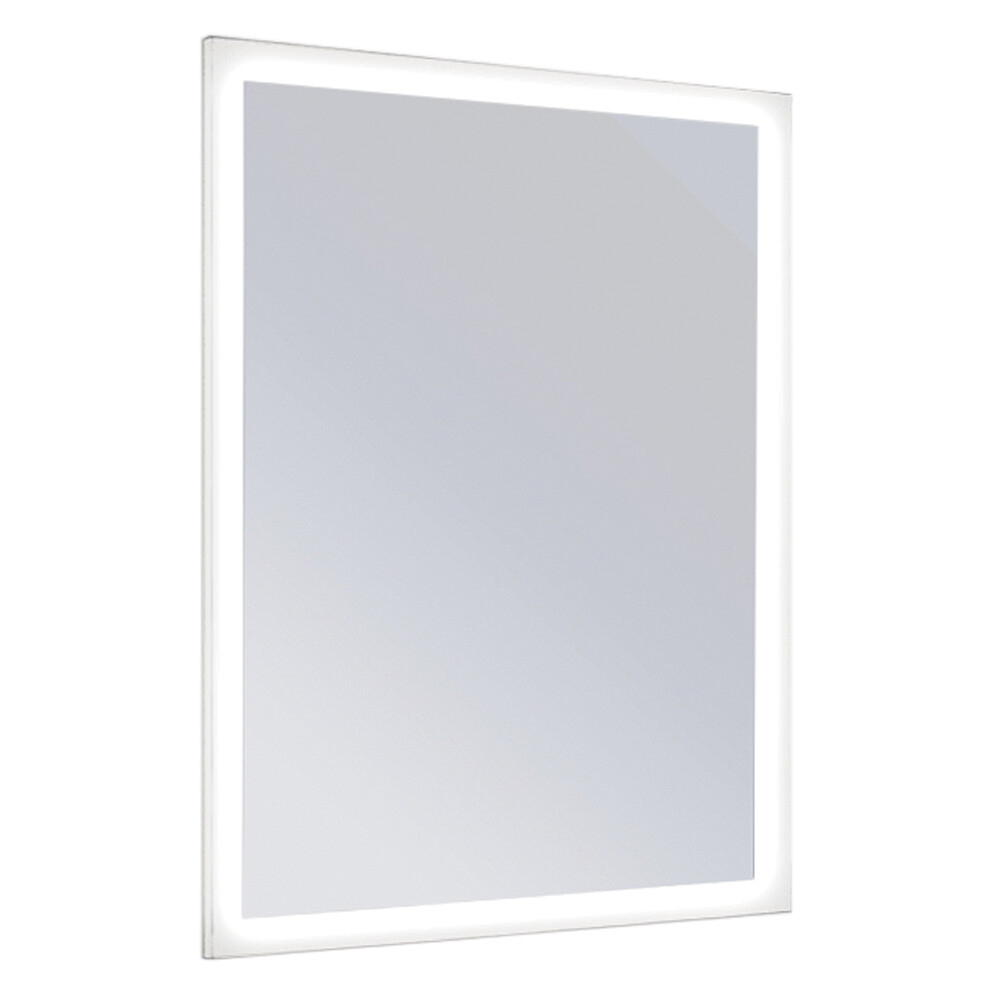

FRAMELESS MIRROR WITH LED BACKLIGHT

Frameless polished edge mirror with integral mounting frame and border LED halo lighting is made of 5/32″ [4 mm] thick plate glass. Hard wired, concealed LED lighting system operates on 100/240 VAC 50/60 Hz and is turned on-off by an external wall switch (by others). Unit can be mounted horizontally or vertically without additional brackets or adaptations to mounting provisions.

Power cord is included for use by owner if appropriate socket is provided on wall (by others) concealed by mounting frame of mirror and is 34″ [86] long with 3-prong USA pattern plug and bare wires for connection to hard wiring in LED control box.

0640-2436 – 24″ x 36″ (610 x 914 mm)

0640-3036 – 30″ x 36″ (762 x 914 mm)

0640-4836 – 48″ x 36″ (1219 x 914 mm)

0640-6036 – 60″ x 36″ (1524 x 914 mm)

0641

FRAMELESS MIRROR WITH FROSTED BORDER AND LED BACKLIGHT

Frameless polished edge mirror with integral mounting frame and frosted glass border LED halo lighting is made of 5/32″ [4 mm] thick plate glass. Hard wired, concealed LED lighting system operates on 100/240 VAC 50/60 Hz and is turned on-off by an external wall switch (by others). Unit can be mounted horizontally or vertically without additional brackets or adaptations to mounting provisions.

Power cord is included for use by owner if appropriate socket is provided on wall (by others) concealed by mounting frame of mirror and is 34″ [86] long with 3-prong USA pattern plug and bare wires for connection to hard wiring in LED control box

0641-2436 – 24″ x 36″ (610 x 914 mm)

0641-3036 – 30″ x 36″ (762 x 914 mm)

0641-4836 – 48″ x 36″ (1219 x 914 mm)

0641-6036 – 60″ x 36″ (1524 x 914 mm)
