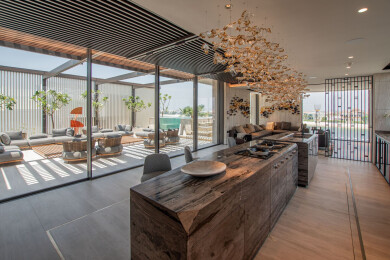

Gracili Minimal Systems® series 25 is designed to elevate your space to enjoy a panoramic view of the outdoors. The 25 mm slim minimal sliding window system, caters to contemporary designs and large-scale doors and windows. The system offers flexibility for delicate corner areas and special conditions. The system has a one of a kind, zero cavity sliding configuration, which eliminates the issue of dust formation with the speciality of concealed unique bearing wheels. Our minimal sliding window system is the ideal choice for functionality and aesthetic appearance to achieve maximum view and perfect is for a modern contemporary home. Each sliding panel of the Gracili 25 series can go up to a height of 5000mm height and width of 2800 mm while maintaining an effortless sliding movement.
Specifications:
Track - E
The system is designed to suit the outer frame and can be recessed around the entire perimeter in the walls, ceiling and finished floor level. This creates a threshold-free movement from indoor to outdoor.
Post Free Configuration
The system is designed to suit the outer frame and can be recessed around the entire perimeter in the walls, ceiling and finished floor level. This creates a threshold-free movement from indoor to outdoor.
Minimal Facade Configuration
Gracili 25 has been designed to provide the occupants with maximum view due to slim profiles and frames. The system can be integrated into a continuous glass façade providing an aesthetic and minimalistic appearance.
Concealed Drain System
Gracili minimal systems® are specially designed with an integrated water chamber profile below the aluminium frame. As an option, a concealed drainage gutter system with trench cover in stainless steel.
Multi Lock System
Concealed multilock system connected to a slim handle placed on sliding leaf makes it very easy to lockand unlock the door.
Integrated Fall Protection System
Integrated glass balustrades for installation on higher levels without balcony ensuring a safe environment. Gracili® 25 glass balustrades designed to meet quality and safety standards.
Automatic Slide
Gracili 25 Minimal system® has been designed, having flexibility of automatic configuration. The single motor can be connected to several sliding leaves recommended to increase operating comfort including electronic locking device.
