  • 2-hour rated UL 10B*
  • Smoke & Draft labeled UL 1784
  • Auto-Set® automatic resetting
  • Fail-Safe Design – automatic self-closing mechanism does not require power operation
  • Coiling on the horizontal plane
  • 2-hour rated UL 10B*
  • Smoke & Draft labeled UL 1784
  • Auto-Set® automatic resetting
  • Fail-Safe Design – automatic self-closing mechanism does not require power operation
  • Coiling on the horizontal plane

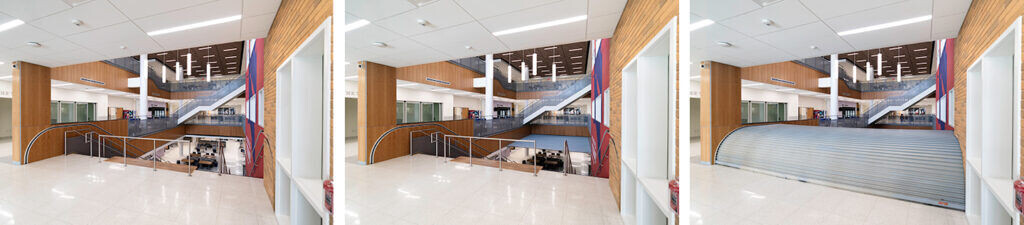

The automatic closing H200 Series horizontal shutters prevent the migration of heat, smoke or hot/toxic gases by creating vertical compartments thereby separating the vertical spaces from one another. Horizontal fire shutters reduce construction costs. Smoke evacuation systems can become unnecessary and one horizontal fire shutter can be used in lieu of numerous conventional fire barriers on multiple floors.

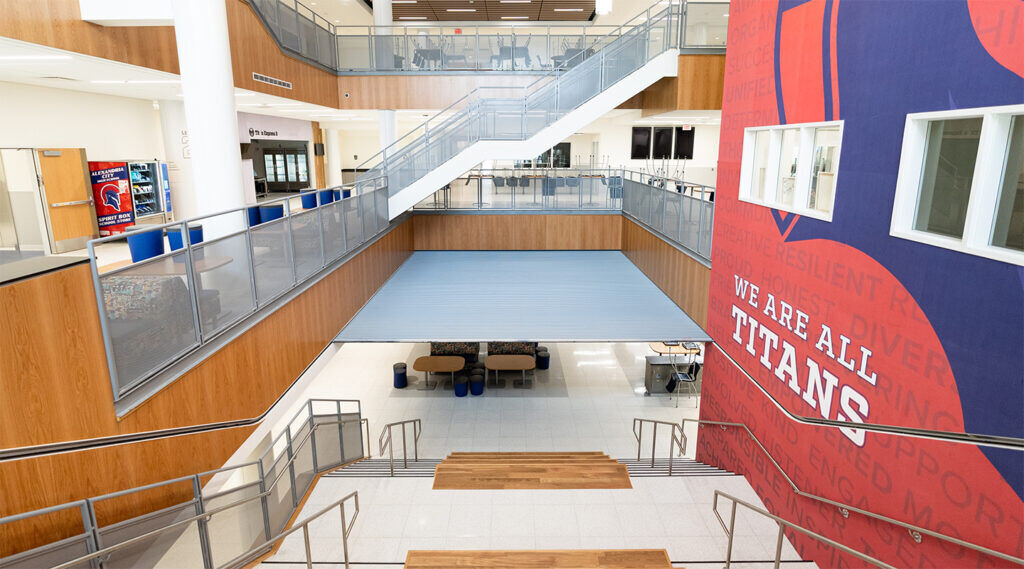

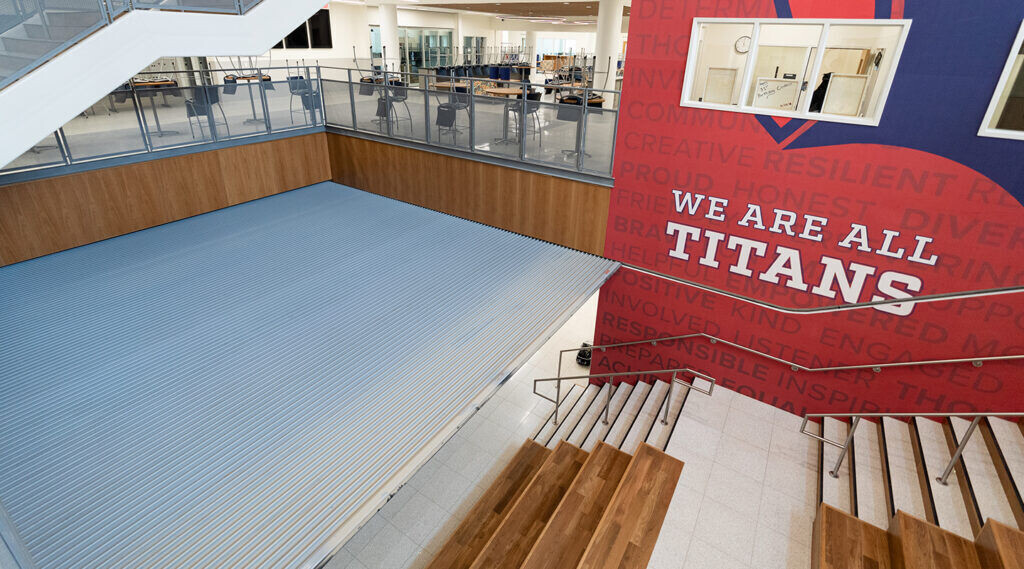

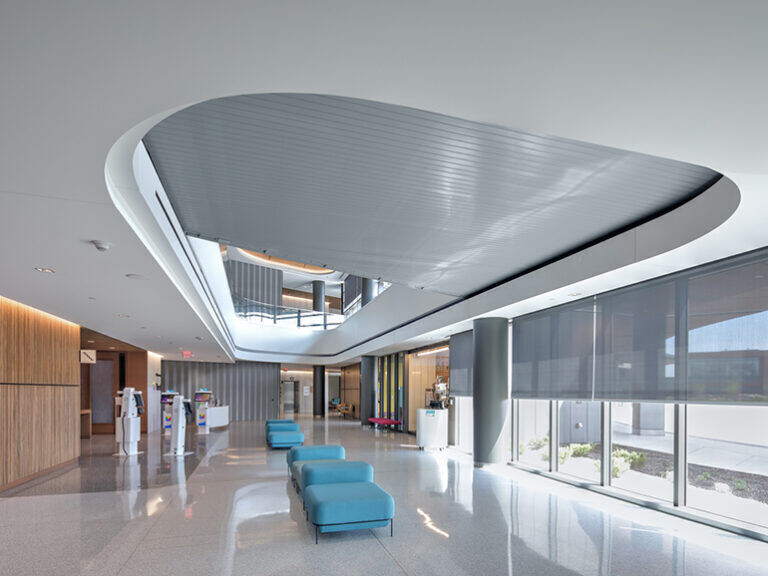

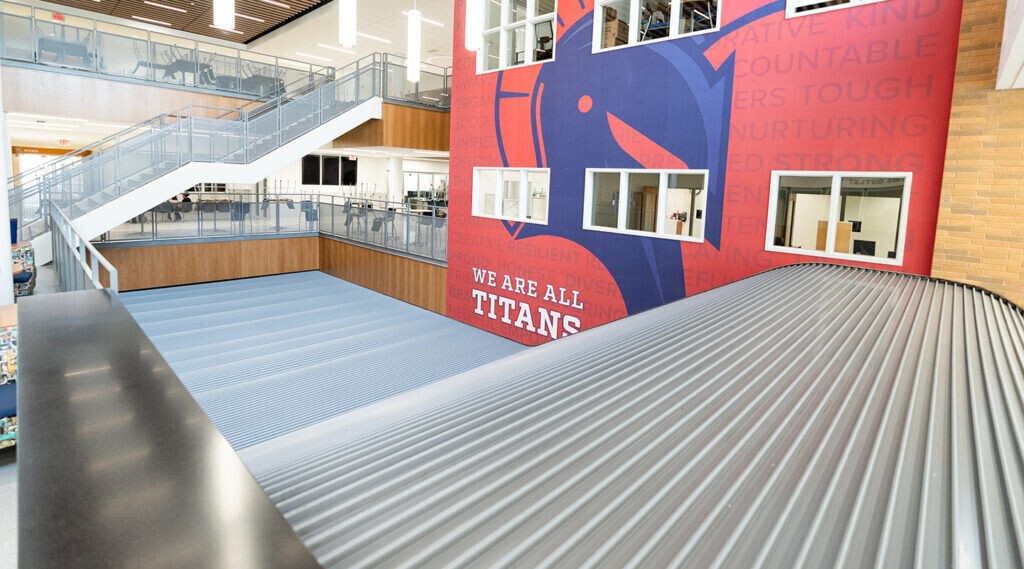

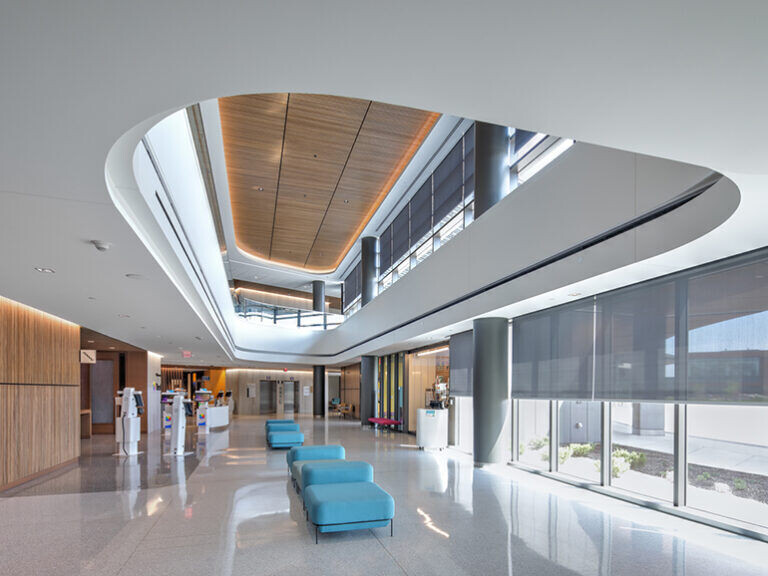

The H200 is ideal for closing off penetrations in ceilings for atrium conditions as well as convenience stairways, escalator enclosures and skylights.

For detailed code analysis consult “Fire Door Systems, A Guide to Code Compliance.”

Caption



Caption
Caption
Caption
Caption
Caption

Read in Español

Download Catalogs

Shared with www.mckeondoor.com
View Catalogue

Download BIM & CAD Files

Specifications

Product Name
Auto-Set® H200 Series
Designer
Horizontal Fire Shutter
Manufactured
United States
Material
Metal, Steel
Characteristics
Custom
Opening types
Sliding
Vertical
Technical characteristics
Fire-rated
