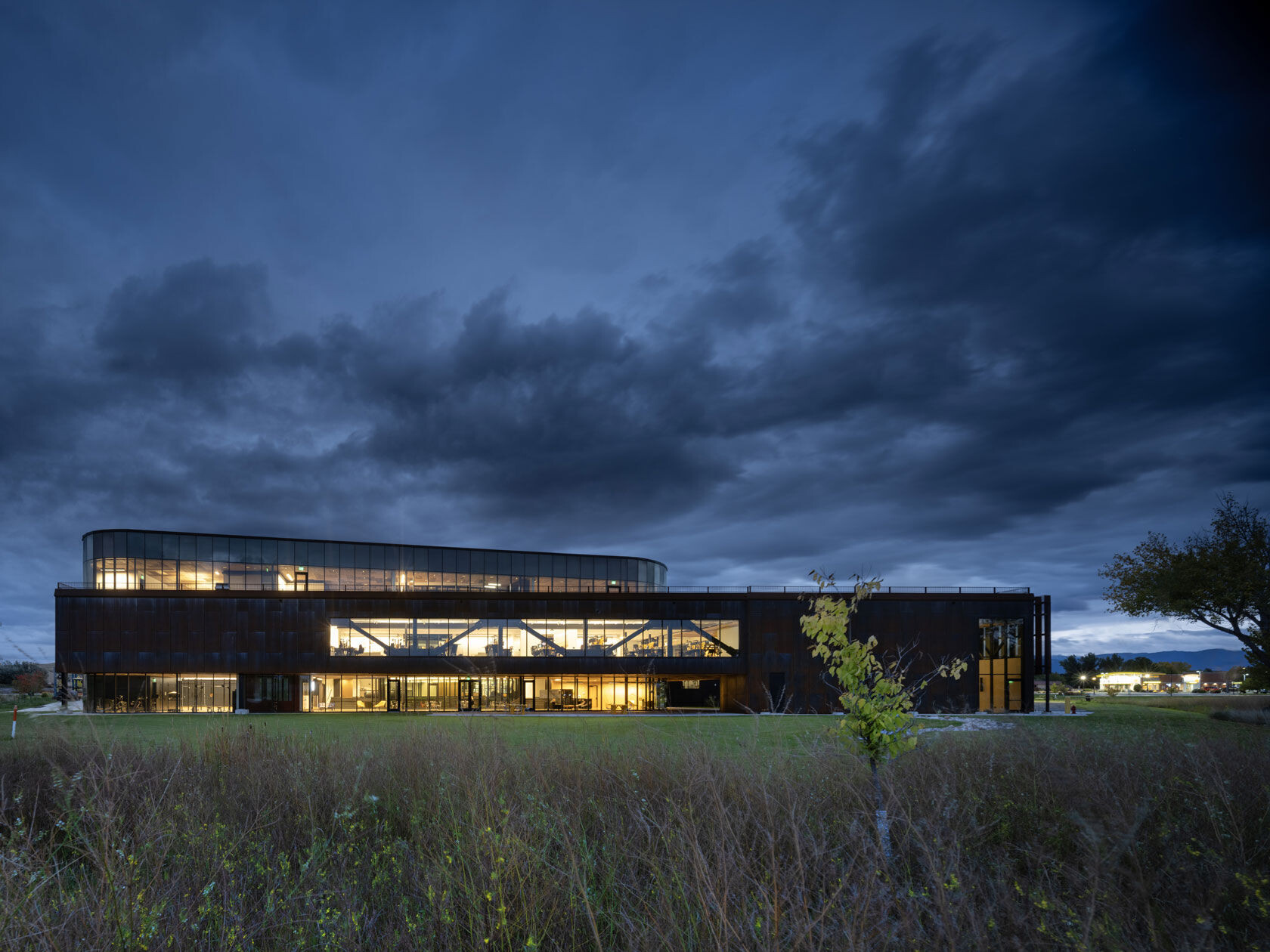

Shrouded in a scrim of weathered, perforated steel, EMIT’s headquarters outside Sheridan, Wyoming pioneers a new, place-based approach to campus planning. Weaving together cutting-edge technology and a community-focused ethos, the structure is almost entirely self-produced on site and exemplifies the people and raw materials active in the process. The new campus, at nearly 120,000 square feet, consolidates the operations of four existing metal fabrication facilities and introduces amenities accessible to over 100 employees as well as the general public. United by their Wyoming heritage, CLB and EMIT collaborated to craft a campus intimately tied to the Rocky Mountain West, which can continue to serve as a social, commercial, and industrial hub for the greater Sheridan community.

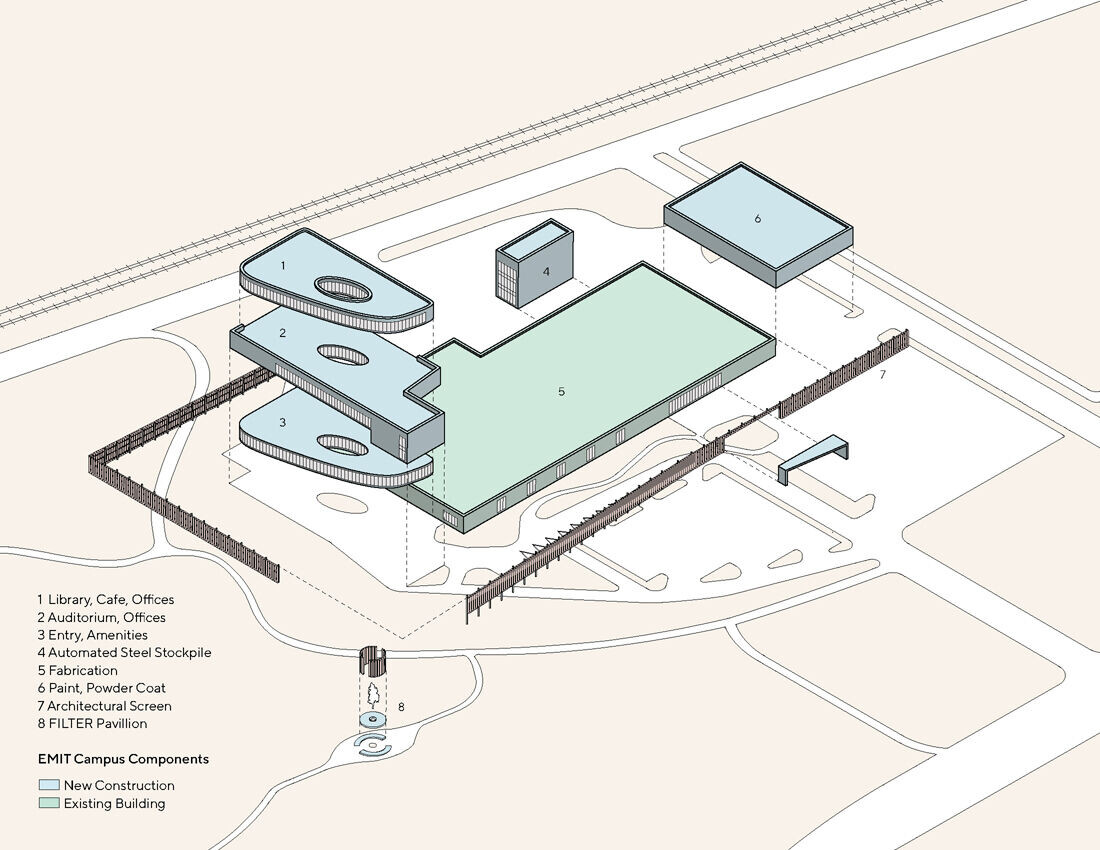

Originally a concrete block Kmart, the campus was reenvisioned into a world-class facility to attract new talent and fold them into an established community of Wyoming locals. With equal attention paid to the large-scale master planning and the finest material details, the existing 80,000 square-foot building was adaptively reused into a synergized and consolidated state-of-the-art fabrication facility.

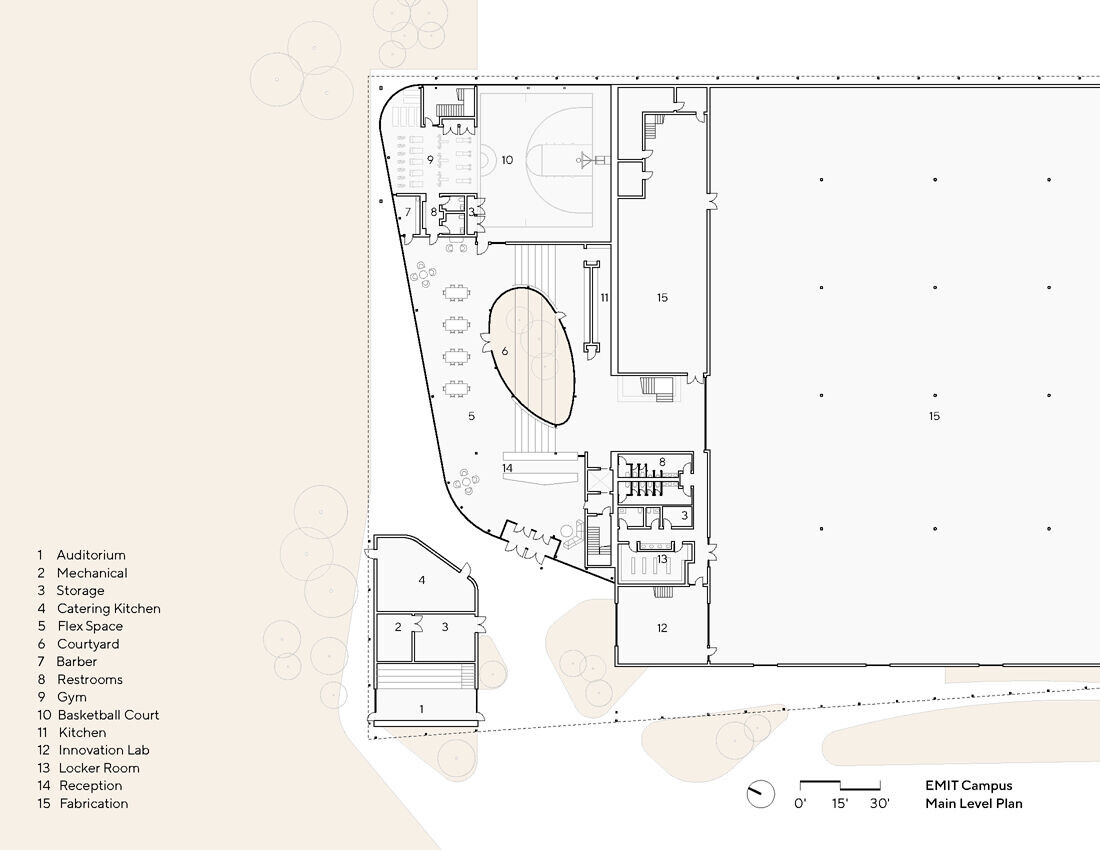

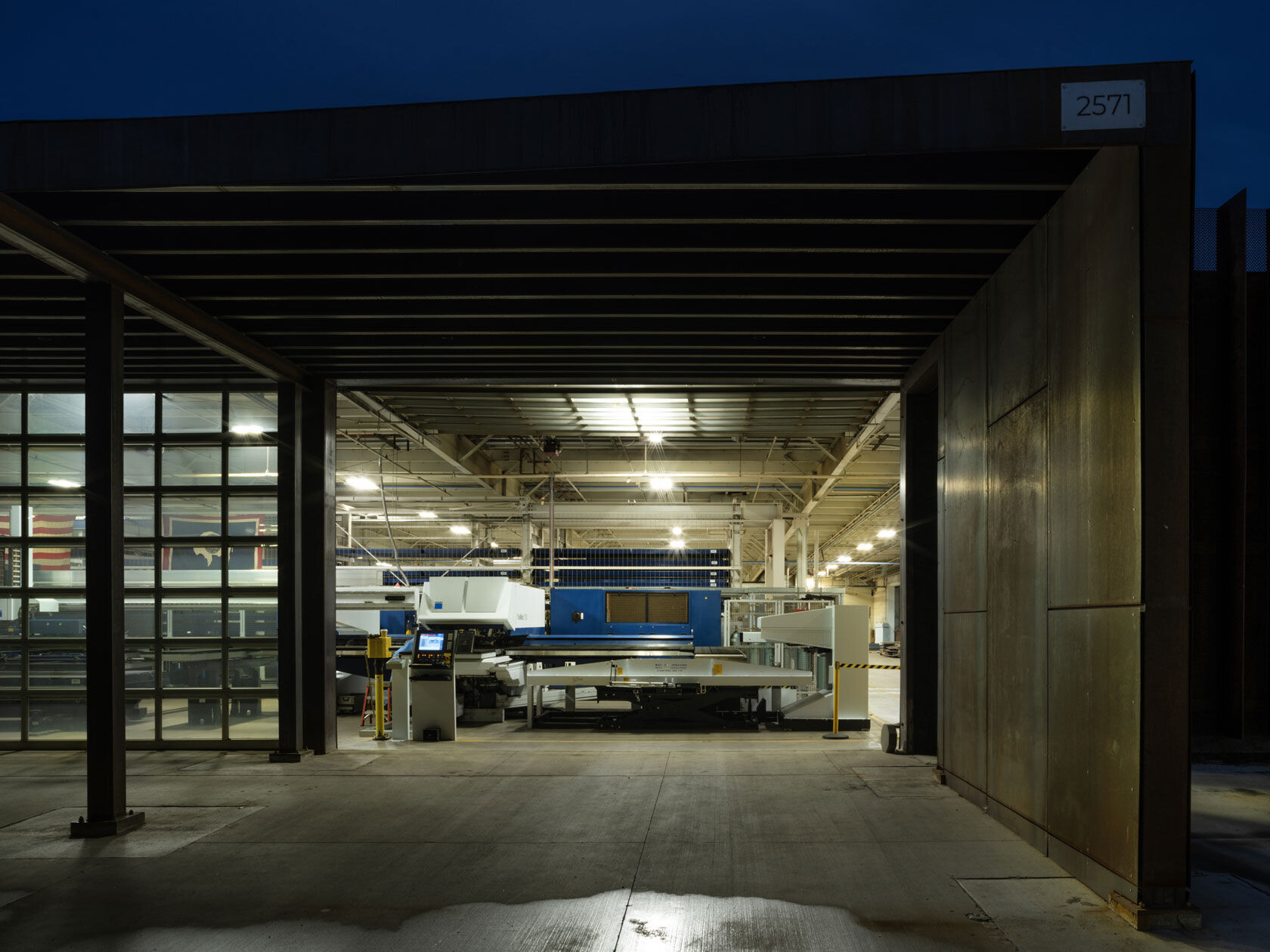

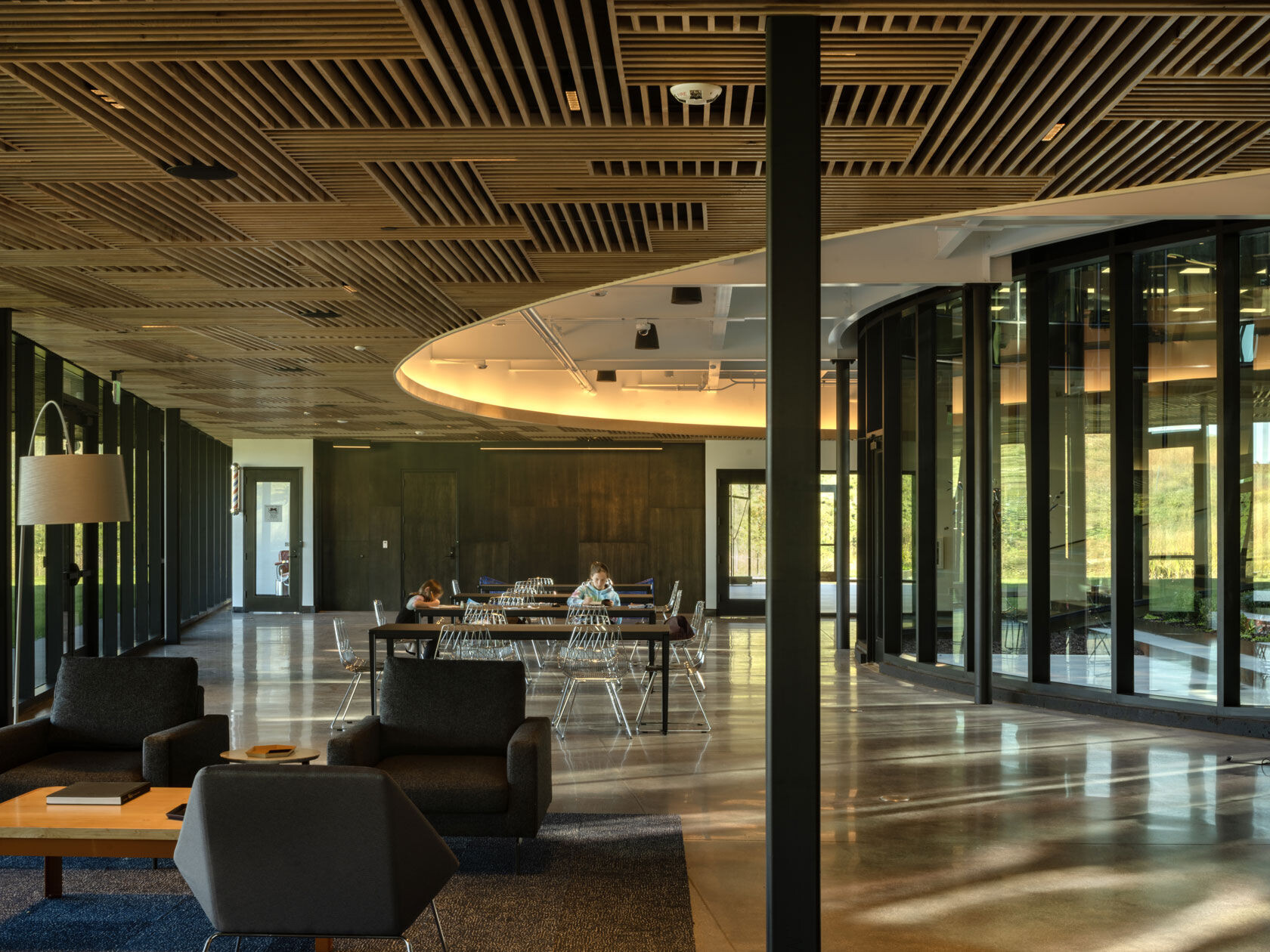

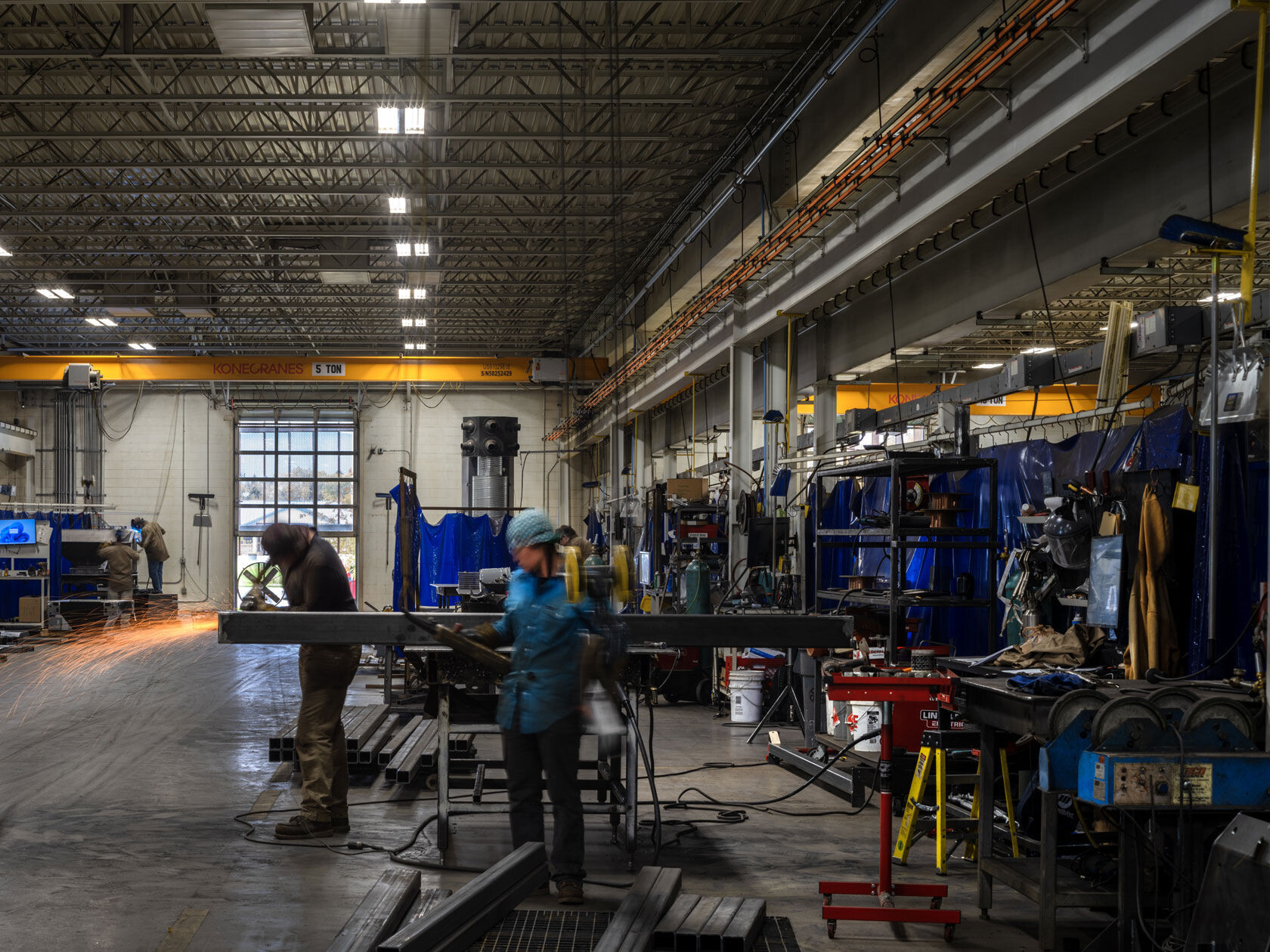

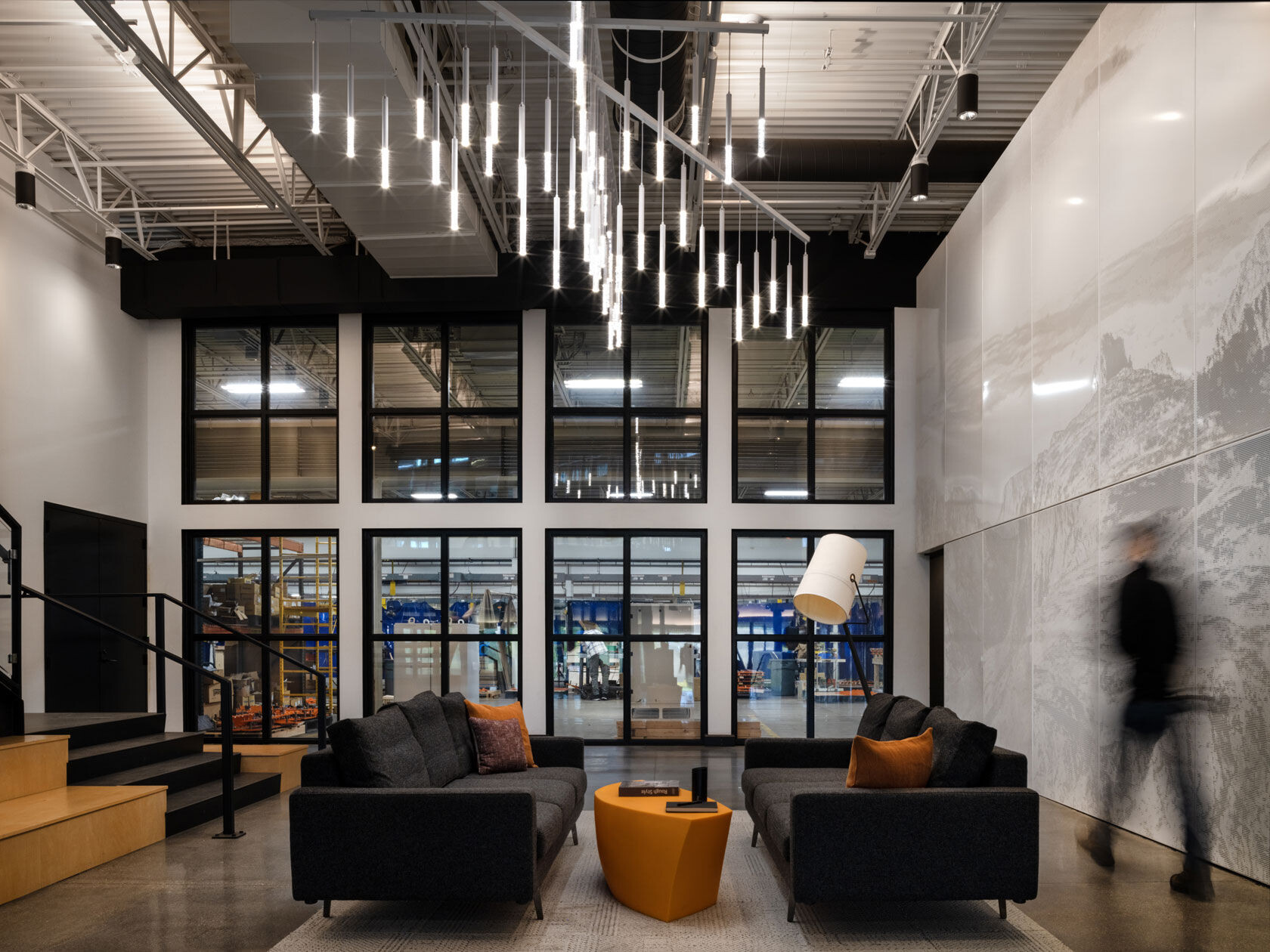

Designed to encourage moments of interaction, the building acts like a circulatory system drawing different user groups – newly arrived office employees, long-tenured factory staff, and the general public – to filter and intermingle non-hierarchically through shared spaces and entries. The machine floor is accessible from the office headquarters through a shared lobby which reflects this spatial dichotomy in its interior finishes by playing raw, industrial materials against refined and robust surfaces. Many of the furnishings and details were specially fabricated by EMIT, including workstations, chairs, and ceiling panels and screens made from birch plywood and powder coated black steel.

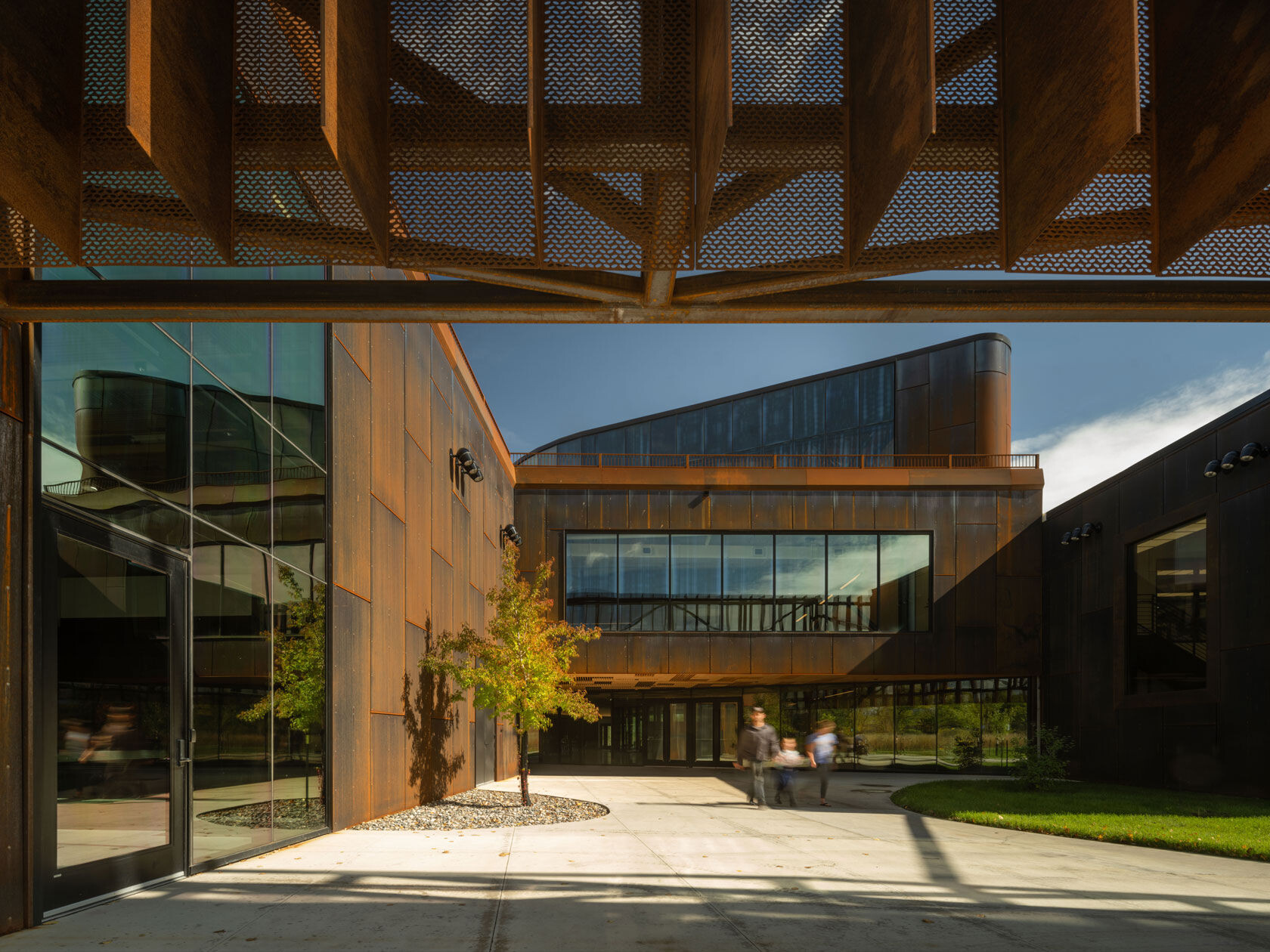

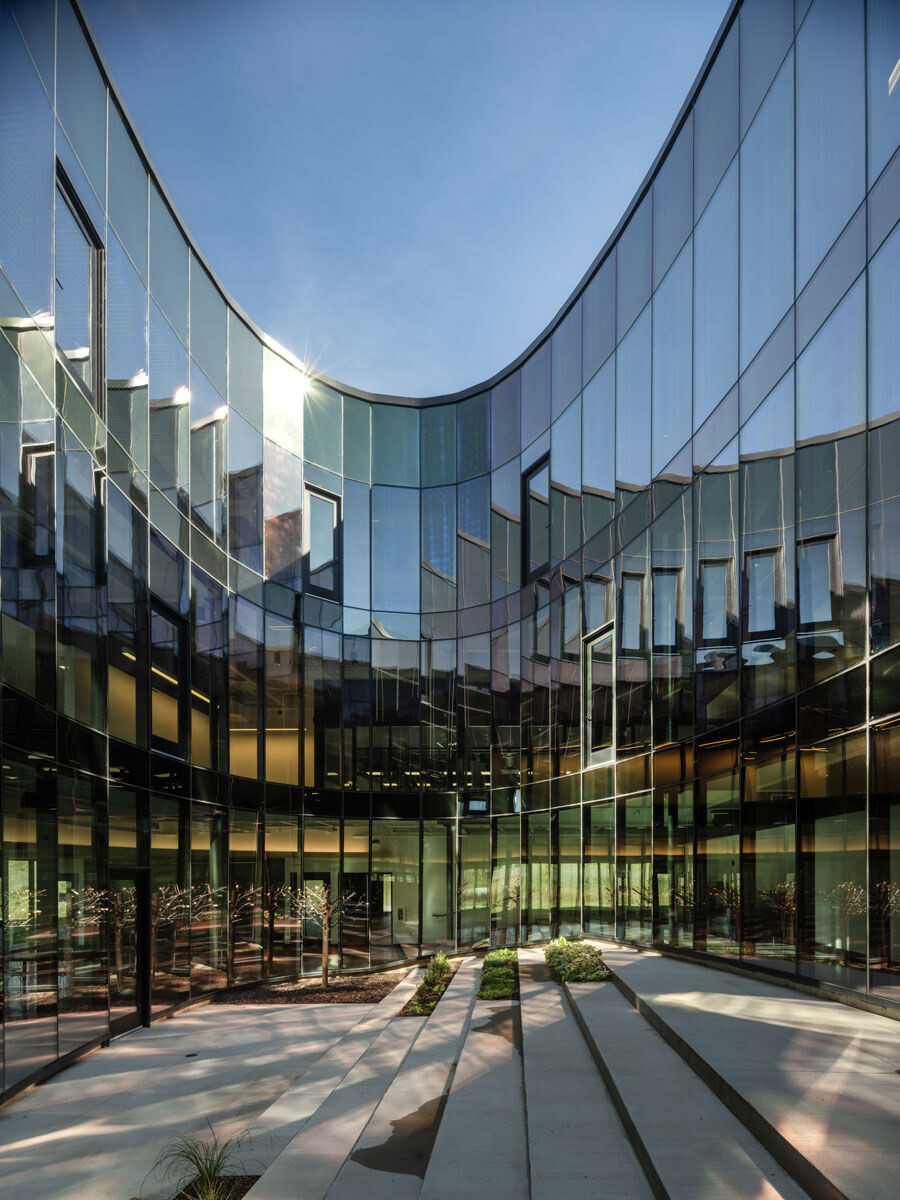

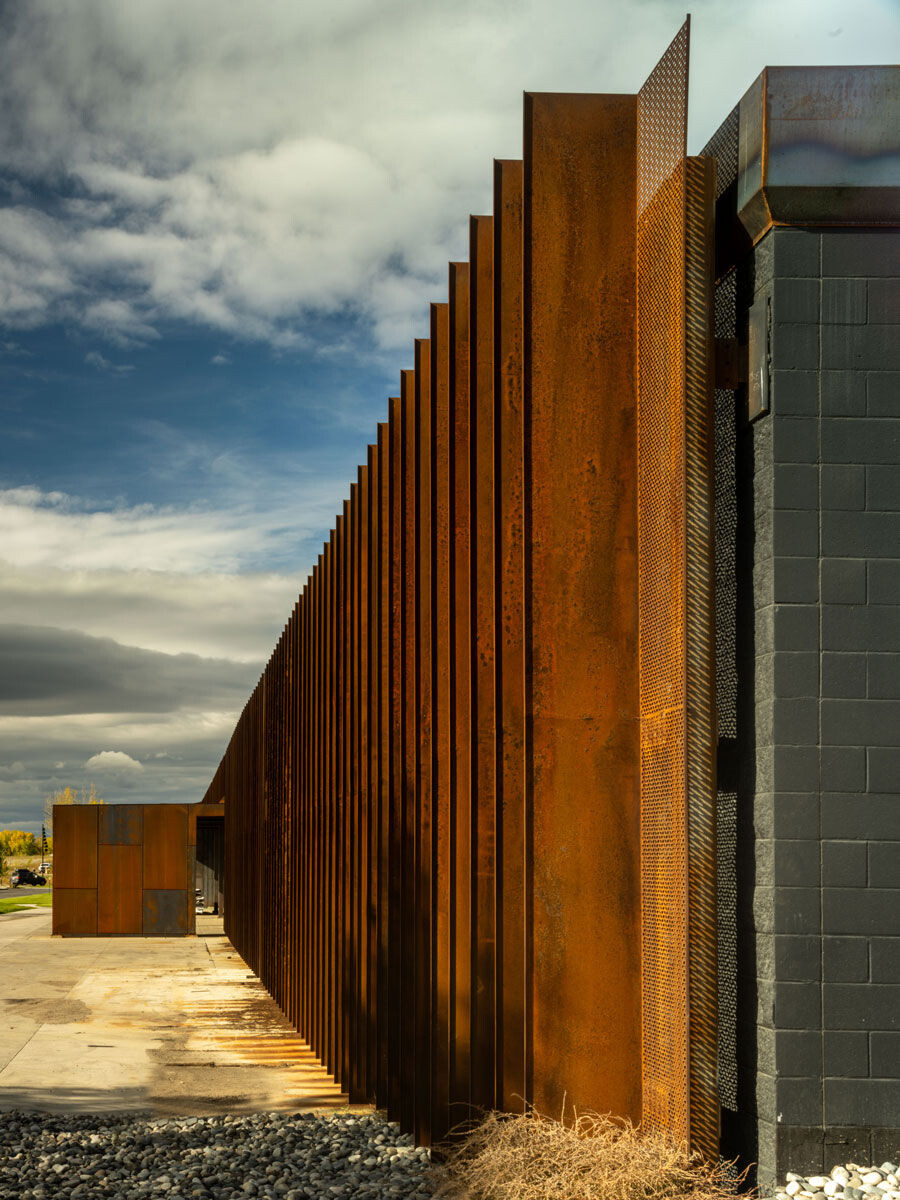

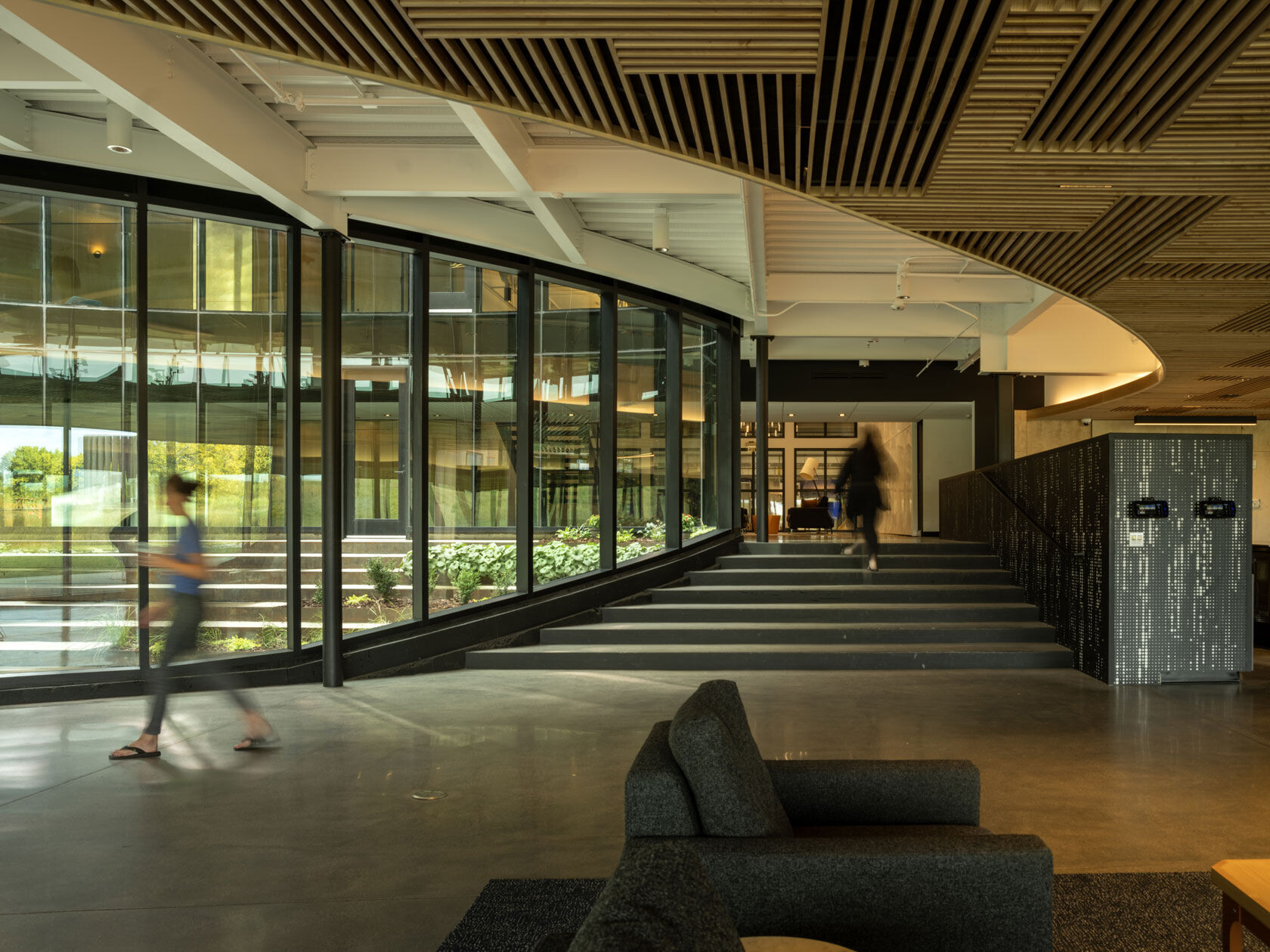

A scarf-like steel façade, also custom-fabricated and engineered by EMIT, weaves the structure’s additive exterior into a unified whole. Suspended from the surface of the building, this laser-perforated scrim forges a transparent-yet-tactile connection between the campus’s outward appearance, and the materials and methods used in the manufacturing within. The structure’s rectilinear massing is gouged by a glazed courtyard, or “lung,” which disseminates light and air into adjacent office and collaboration spaces. On the front of the structure, the suspended steel facade lifts upward to welcome employees and the general public alike into a generous lobby.

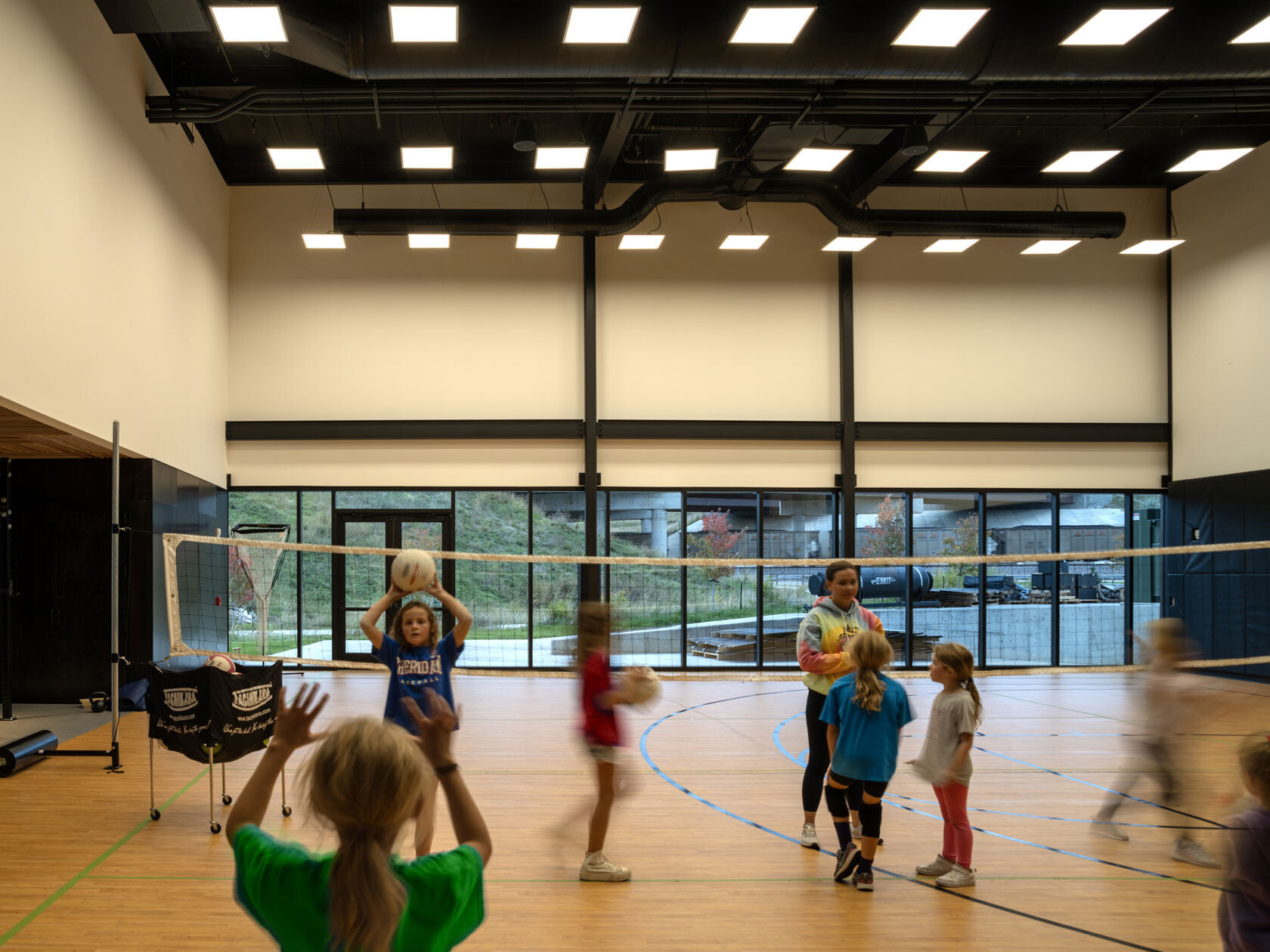

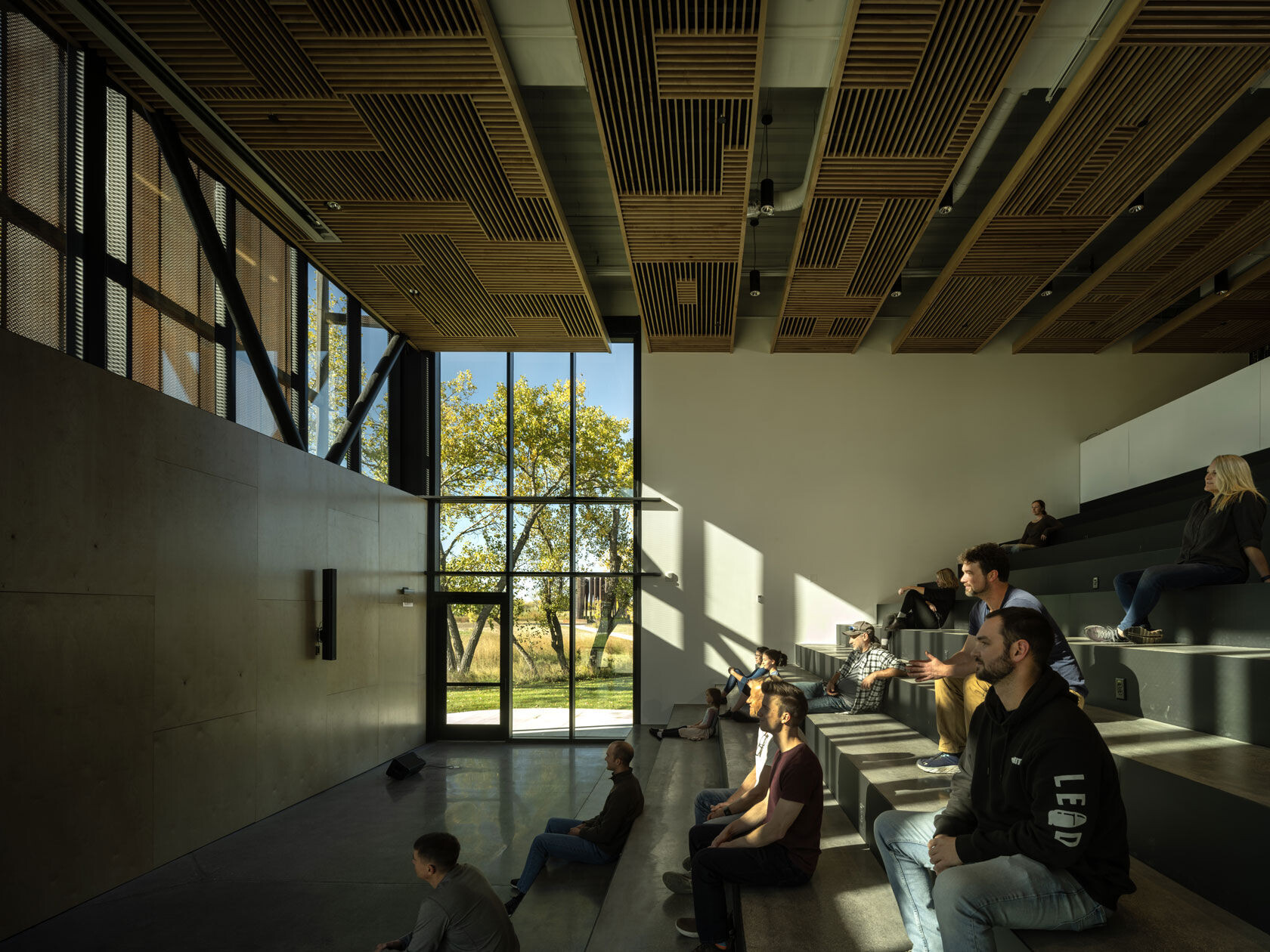

Auditorium and flex spaces allow the Sheridan community to utilize the campus for their own classes and events. Employee amenities including a basketball court and gym, locker rooms, barber shop, coffee station, and library space provide activated opportunities to cross-pollinate and exchange ideas across the “no collar” workforce. Embodying the pioneering spirit and redefining notions of “campus,” the new headquarters engages more deeply with the people, place, and raw materials that make EMIT’s work possible.

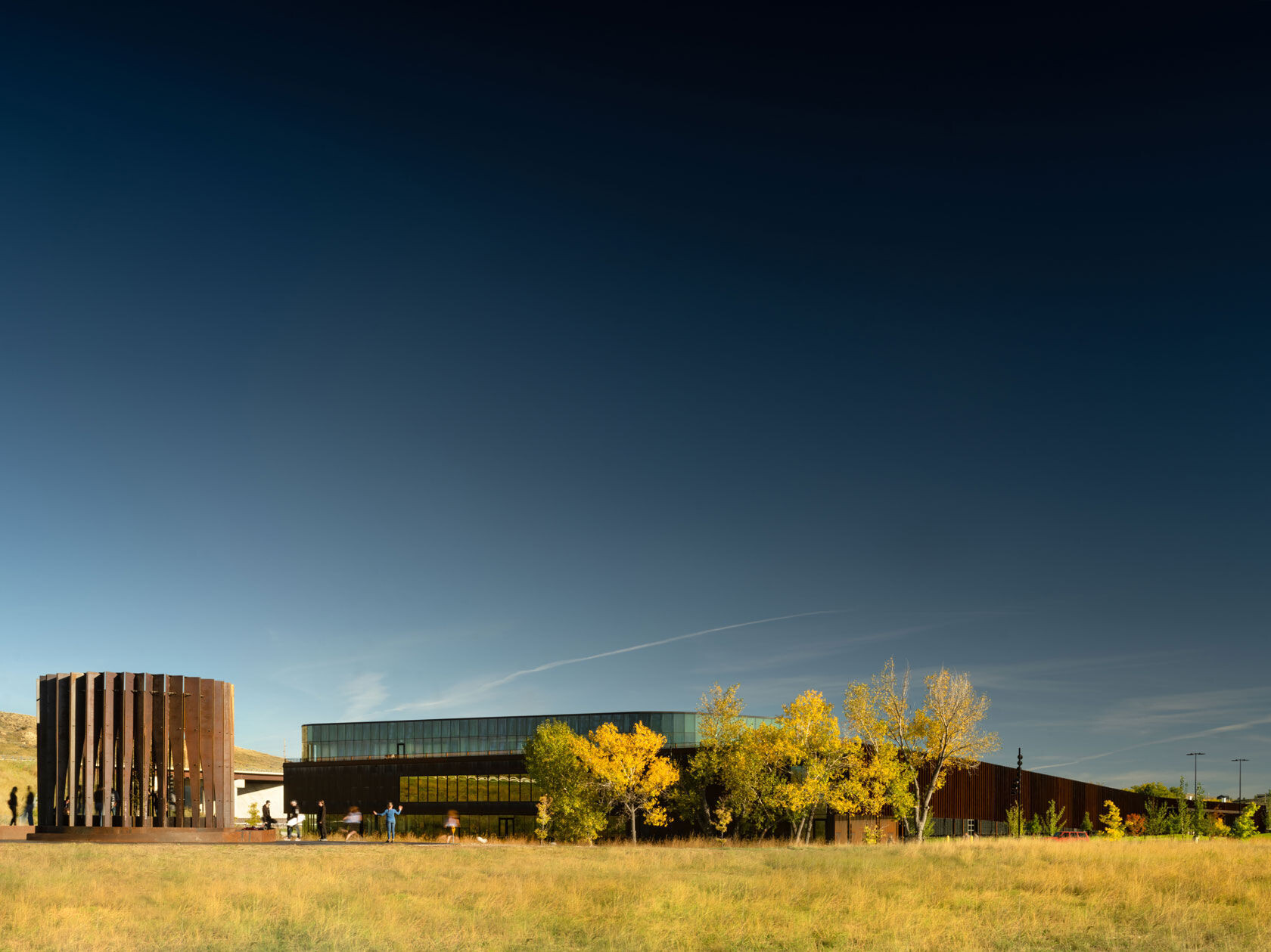

Now located outside of the EMIT headquarters, FILTER was originally created for Design Pavilion and the NYCxDesign Festival. The pavilion’s chapel-like design facilitates a new understanding of place, providing each occupant the chance to explore their own relationship with the natural world. Following the closure of the NYCxDesign festival, the pavilion was carefully disassembled and transported back to Wyoming to continue its life as a public sculpture at EMIT’s headquarters and enjoyed for generations to come. EMIT is responsible for the steel prefabrication and is the exhibit patron.

Team:

Architects: CLB Architects

CLB Architects:
Partners – Eric Logan, Andy Ankeny
Project Managers - Jeffrey Johnston, Danny Wicke
Project Coordinators - Justin Dhein, Taylor Noel
Interior Designers – Sarah Kennedy, Jaye Infanger
Consultants
Interior Design: EMIT with CLB Architects
Sarah Kennedy
Jaye Infanger
Contractor: AXE Build, Sheridan, WY
Civil Engineer: Nelson Engineering, Buffalo, WY
Structural Engineer: KL&A, Inc., Buffalo, WY
MEP Engineer: BG Building Works, Fort Collins, CO
Geotechnical Engineer: Nelson Engineering, Buffalo, WY
Lighting: Lux Populi, Mexico City, Mexico

Acoustical Engineer: BG Building Works, Fort Collins, CO
Kitchen Consultant: HC Design and Consulting, Bozeman, MT

Theatrical/AV: BG Building Works, Fort Collins, CO
Specifications: iBIM, Denver, CO

Photographer: Nic Lehoux

Materials Used:

EXTERIOR: Walls/Siding
Concrete: Hanover Pedestal Pavers at roof terrace
Wood: Custom Fabricated Wood Slat Soffit, Maple
Metal: Hot Rolled Steel with Mill Scale Removed
Existing Split face CMU walls – refinished and painted black
Other: Hot Rolled Custom Perforated Louver Screen
EXTERIOR: Roof
Membrane: Carlisle EPDM Membrane

EXTERIOR: Windows/Door
Windows: Tubelite Storefront
Doors: Tubelite Storefront Doors
Curtain Wall: Tubelite Custom Curtain Wall

EXTERIOR: Other
Soffit: Custom Fabricated Wood Slat soffit by EMIT, Maple

INTERIOR: Floors
Concrete: Cast in Place Concrete, Integral Color and Polished Finish
Tile: Keystone, Tierras

INTERIOR: Walls/Ceilings:
Drywall: Painted Drywall, Various Colors
Ceiling: Exposed Acoustical Metal deck painted white
Armstrong Acoustic Perforated Wood Panels
Other: BAUX Acoustic panels in custom configurations on walls
Birch Apple Ply walls
Haworth Glass enclosures and doors
INTERIOR: Cabinetry
Wood (species/stain or paint): Birch Veneer Millwork
Laminate Millwork in multiple Colors
Blackened Steel Millwork with Perforated Steel Shroud at reception
Other: 3 Form Cabinetry and Paneling at Barber Shop
INTERIOR: Doors
Wood: Birch Panel Doors
Glass: Haworth Glass doors and enclosures

INTERIOR: Hardware/Appliances:
Door Hardware: Dormakaba
Fittings (faucets, etc.): Kohler, Blanco, Sloan
Fixtures (sinks, etc.): Toto, Sloan, Custom Concrete Counters and Sinks
HVAC: Systems/Supply
Heating & Cooling: Carrier
