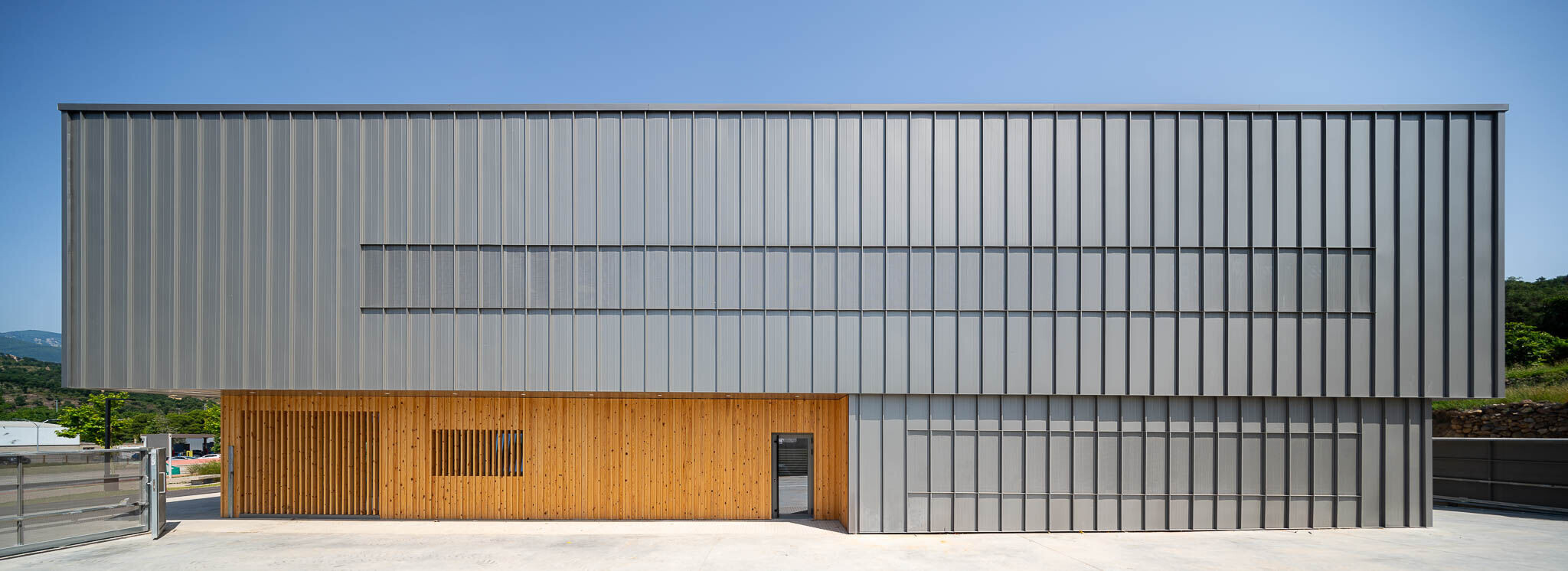

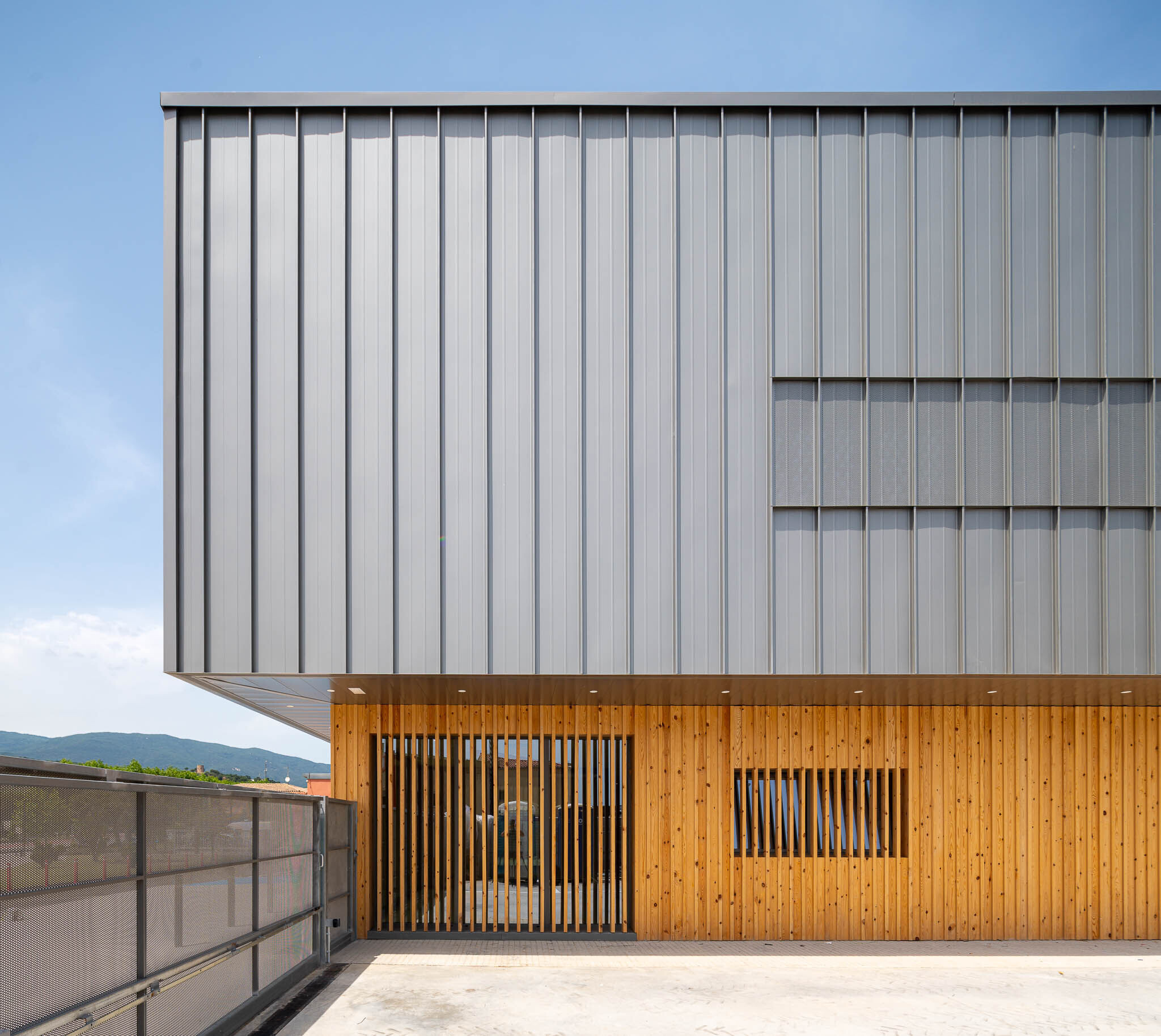

EURODESIGN is the standing seam tray system of Europerfil used for architectural roofs and facades. This system allows the creation of lines, shapes, and volumes to obtain singular buildings.
Product benefits
- Watertight roof: the standing seam profile prevents perforations in the outer skin without. Slopes of up to 2% are allowed on deck.
- Aesthetics
- Fire: incombustible (A1)
- Wide range of raw materials, colors and coatings
- Great versatility: Possibility to produce long trays (<50m) that allows to create all kinds of architectural shapes.
- Production on construction site.
- Functionality: clips used for fixing the trays allows the free dilation of materials and optimal performance of the roof
- Easy maintenance
Specifications
Material: steel
Size:
- Height: 51 mm
- Cover width: 345 and 470 mm
- Finishing: smooth and ribbed
Features:
- Two versions: Eurodesign 345- 51 and Eurodesign 470-51
- A sealed roof and wall
- Wide range of colours and coatings
- In situ manufacturing (if it’s necessary or in case or long lengths)
- Produced in pre-painted steel (ask us for other materials)
- Convexly curved
- Installation: Eurodesign can be installed on various rigid supports:
- Trapezoidal steel profile or self-supporting tray, incorporating between these elements different layers of insulation depending on the solicitations of each project.
- Wooden board or derivatives, also incorporating layers of insulation to be defined according to the insulation required.
- Composite floor or permanent formwork on trapezoidal steel profiles.
Technical characteristics:
- Length up to: 1.200 mm
- Maximal length: 13.500 mm (for transport), but it’s possible to produce it in construction site.
- Steel thickness: 0.5, 0.6, 0.65, 0.75, 0.8 mm (depends on material)
