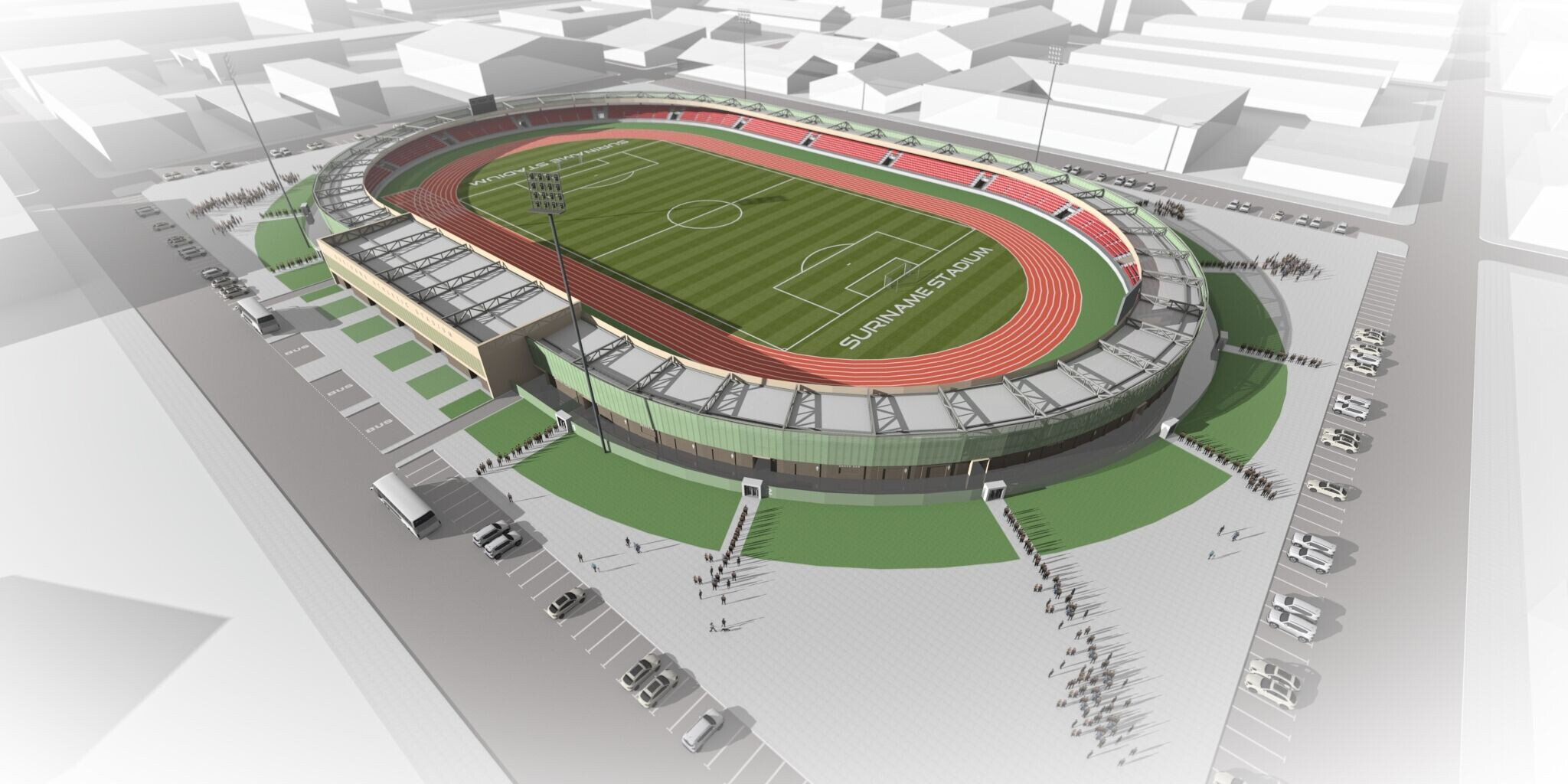

At the request of the Ministry, the draft for the new football and athletics Stadium in Suriname is presented.

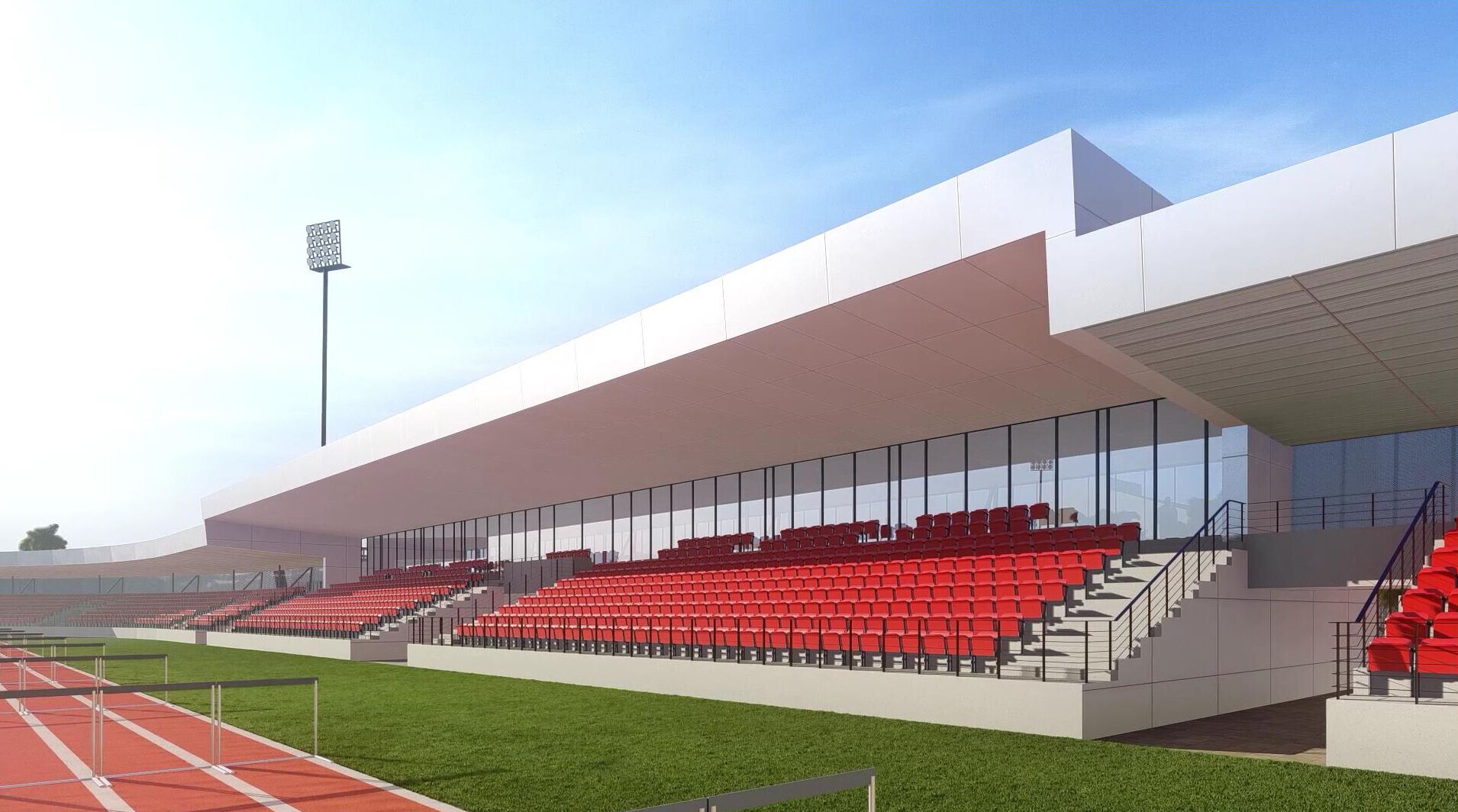

There is a single level grandstand with a capacity for 10,000 spectators, distributed in 20 vomitories, two of them exclusive for disabled access. It houses the changing rooms on the ground floor and press room, authorities and VIP public views of the pitch on the first floor.

It is an entirely modular stadium through our construction system:

• Steel Structure as support of grandstands. Manufactured by the assembly of laminated steel profiles with bolted joints.

• Grandstands:  Precast reinforced concrete “L” shaped section. Included the enclosures, vomitories and steps.

• Covering: Supported on the metallic structure, there are two material options: Metallic roof (bolted folded steel sheet) or Textile roof (tensed PVC membrane/mesh).

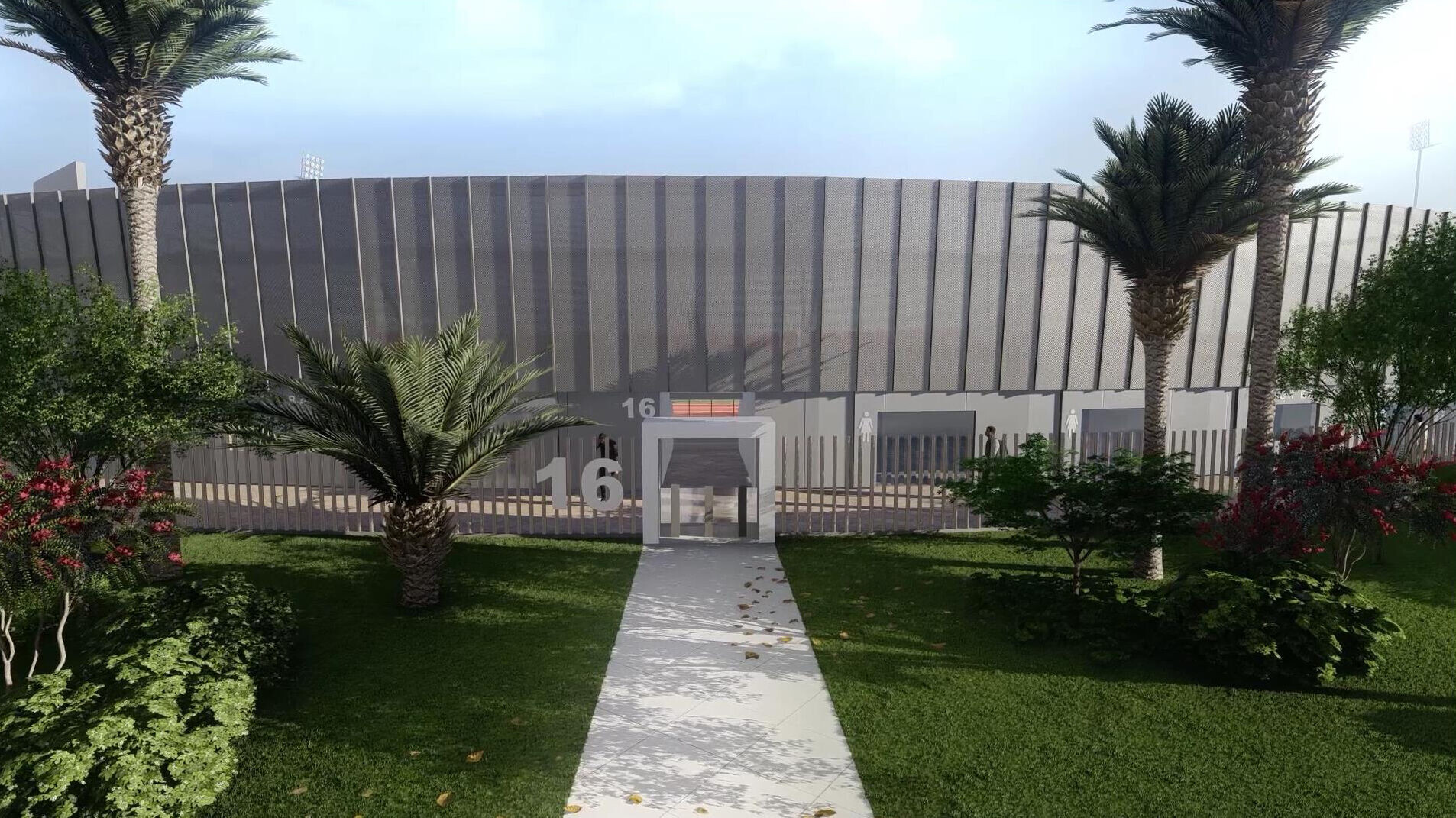

• Façade: Supported by the metallic sub-structure, there are two material options: Metallic façade (bolted folded steel sheet) or Textile façade (tensed/compressed fabric mesh).

• Facilities: Including: Electricity, Plumbing+Sewage, Irrigation + Drainage of the pitch, Lighting, PA system and electronic scoreboards.

• Seating:  Standard PVC seating for the general public and folded with arms for VIP tribune and Authorities.

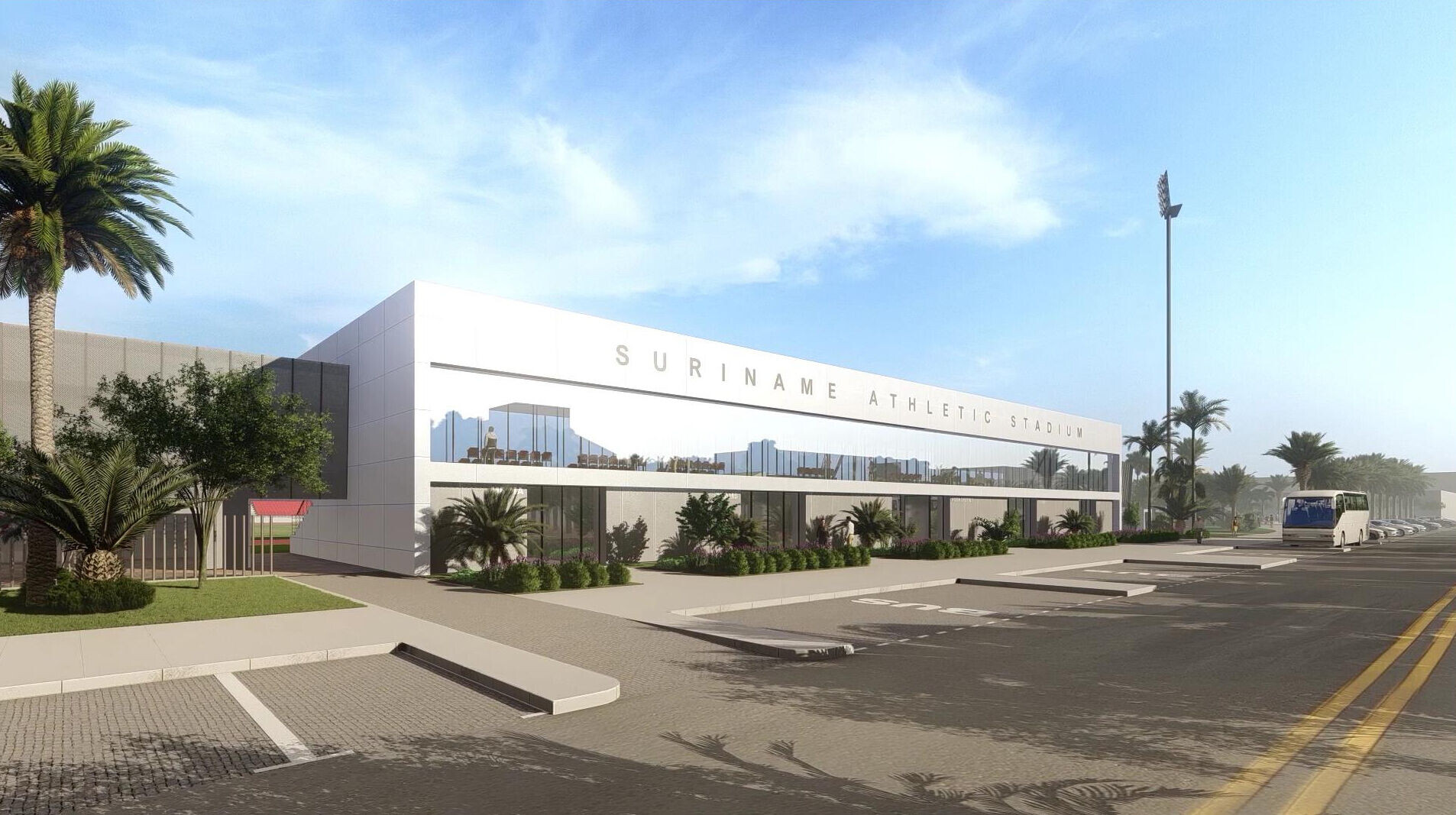

• Buildings: Built with modular construction system. Including: The Main building (Dressing rooms, VIP, Staff and Media areas) and All Auxiliary buildings (toilets,
