A’Bodega (or how to live in an old winery)

Cubus, taller d'Arquitectura as Architects

The old stone wineries of the Ribeira Sacra (Galicia) were (and are) heterogeneous constructions linked to house where the activities of the local economy are developed, such as preserving ham, wine and spirits in addition to storing straw and putting the beasts to rest. The project fully recovers one of these old cellars to convert it into a new home. The project is based on three premises:

photo_credit Adrià Goula
Adrià Goula

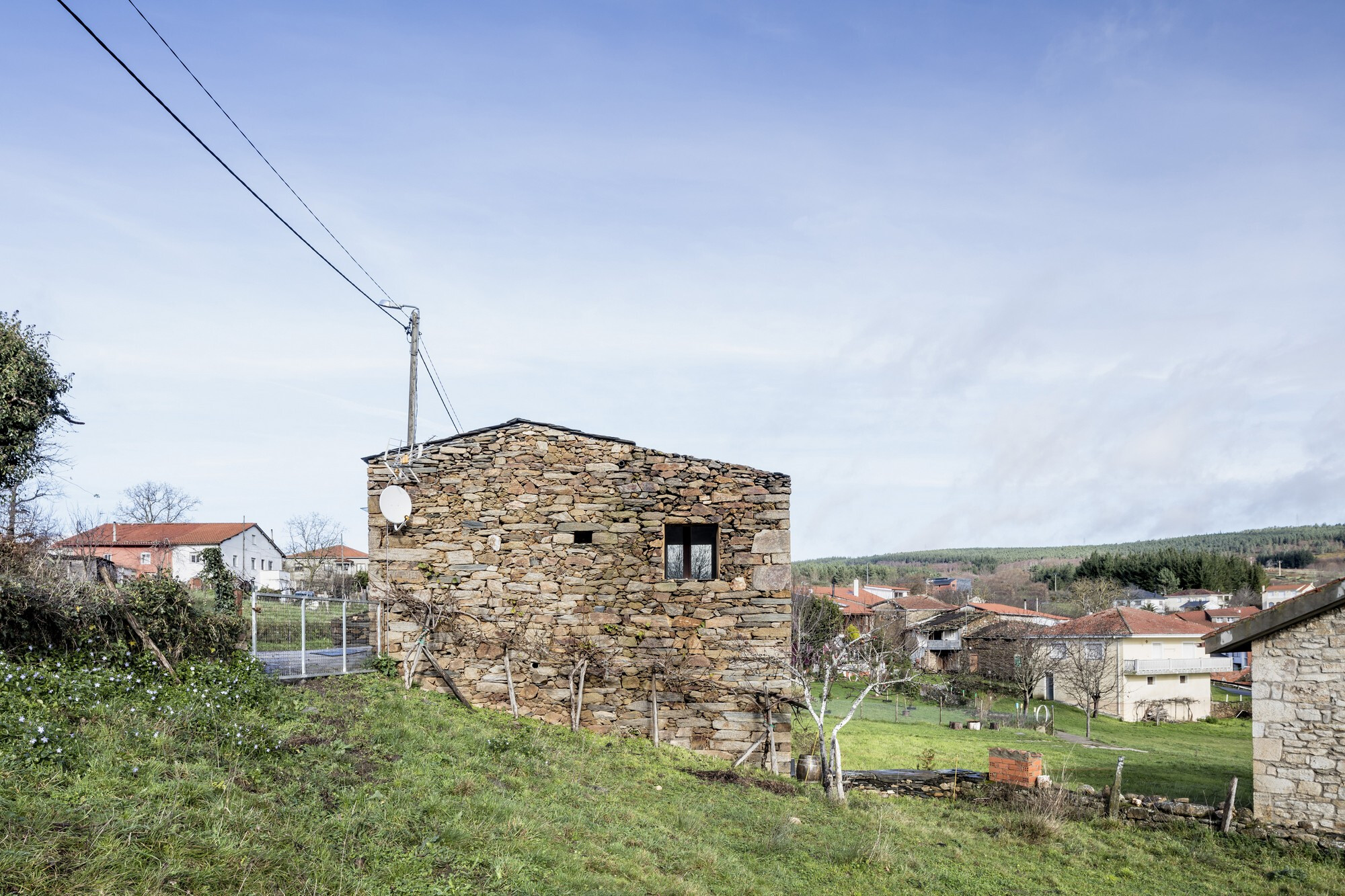

- Respect the initial volume and the local architecture. The village is harmonious: stone buildings and the existing wild grass wild are balanced. The proposal doesn’t want to break this equilibrium so it works respecting the limits of the existing walls. It also integrates the values of the local architecture (volumes of dry stone, tectonics, with only a few holes) without renouncing to it’s own language. The initial volume consists of two bodies that remain virtually unchanged: a two-storey haystack and a second volume with one floor that integrated the beasts place and the wine cellar. Both are semi buried by the road against the west facade, and open to east across the landscape.

photo_credit Adrià Goula
Adrià Goula

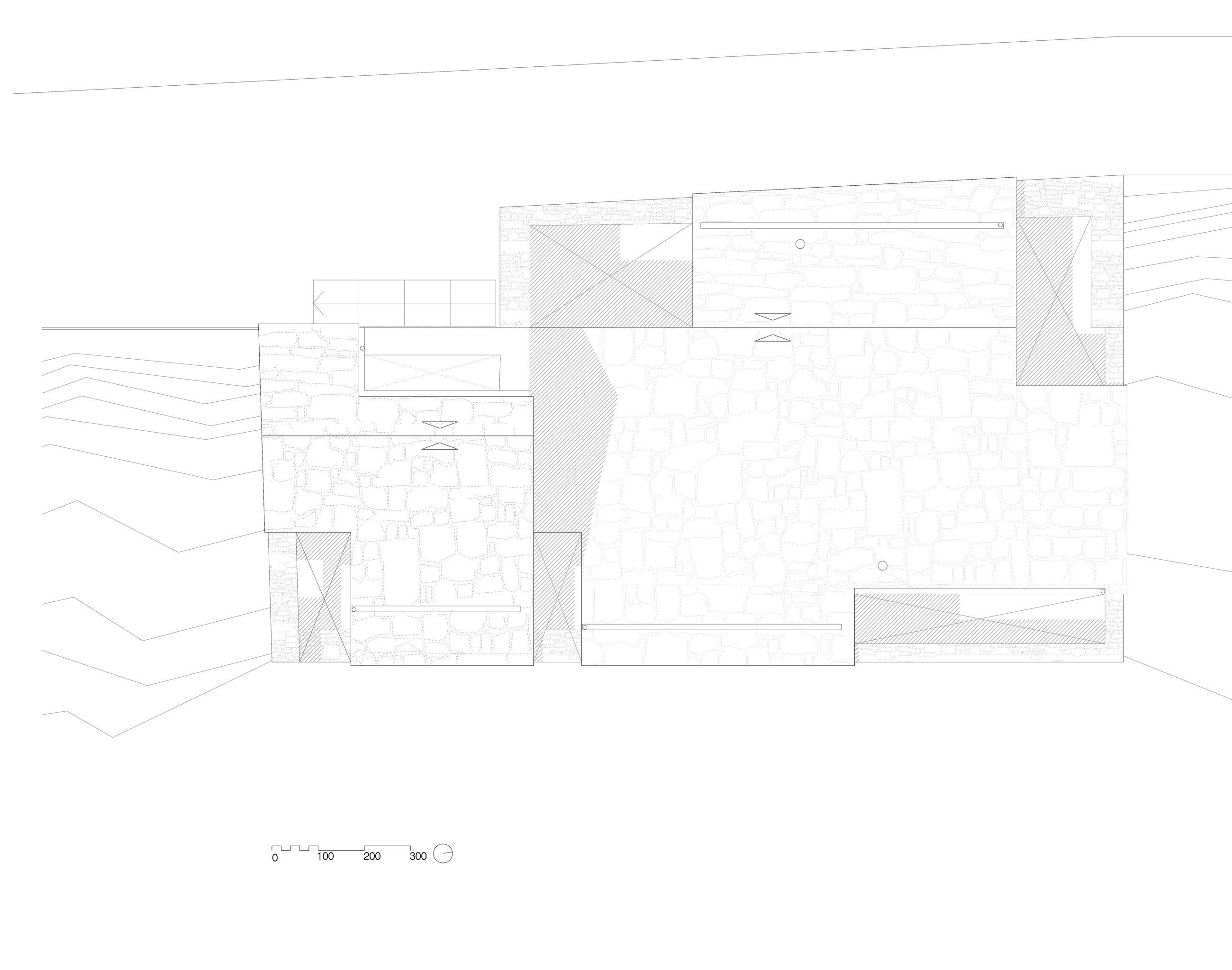

- Local materials. It’s created a case with the existing dry stone walls and slate roof (recovered from an old house). Wood is the second main material. The rest is according to the knowledge of the local constructor.

photo_credit Adrià Goula
Adrià Goula

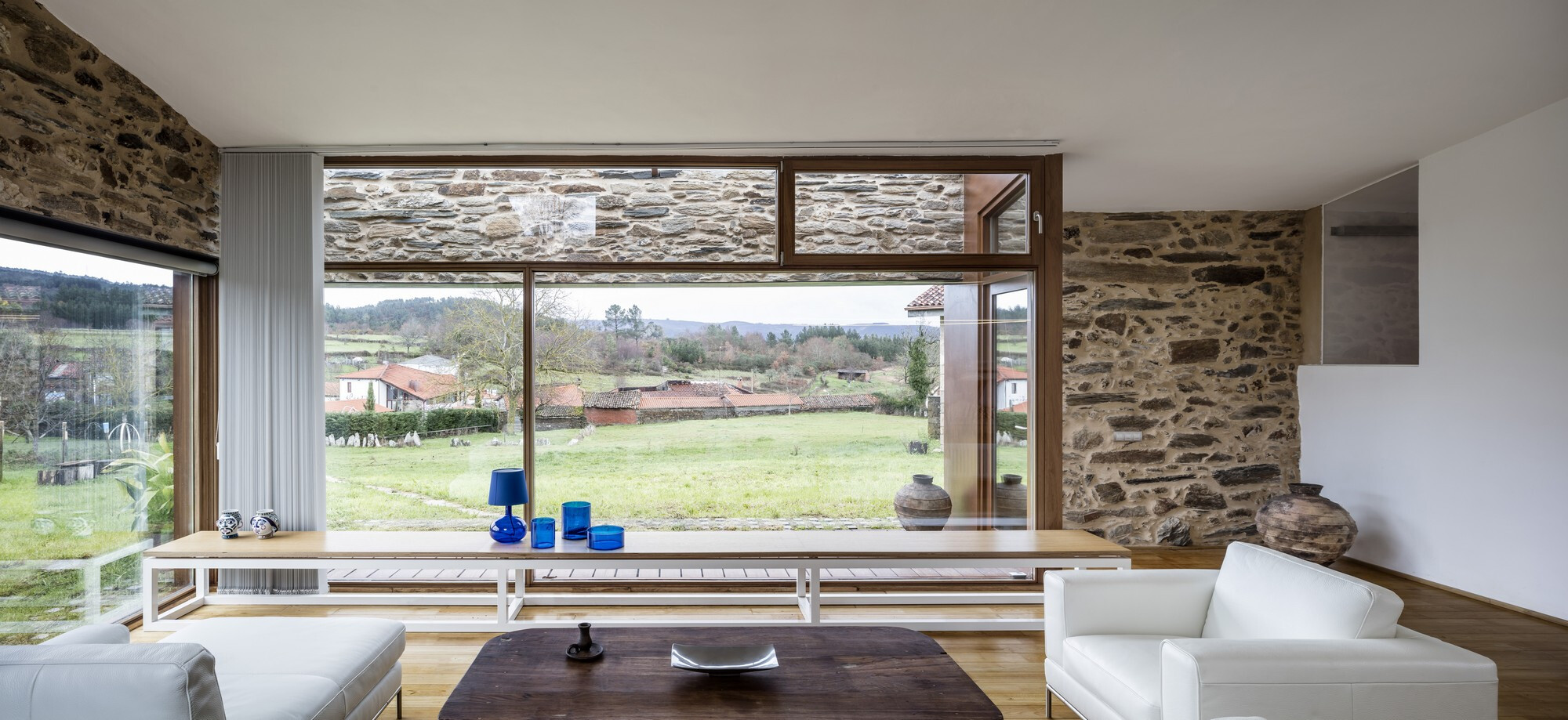

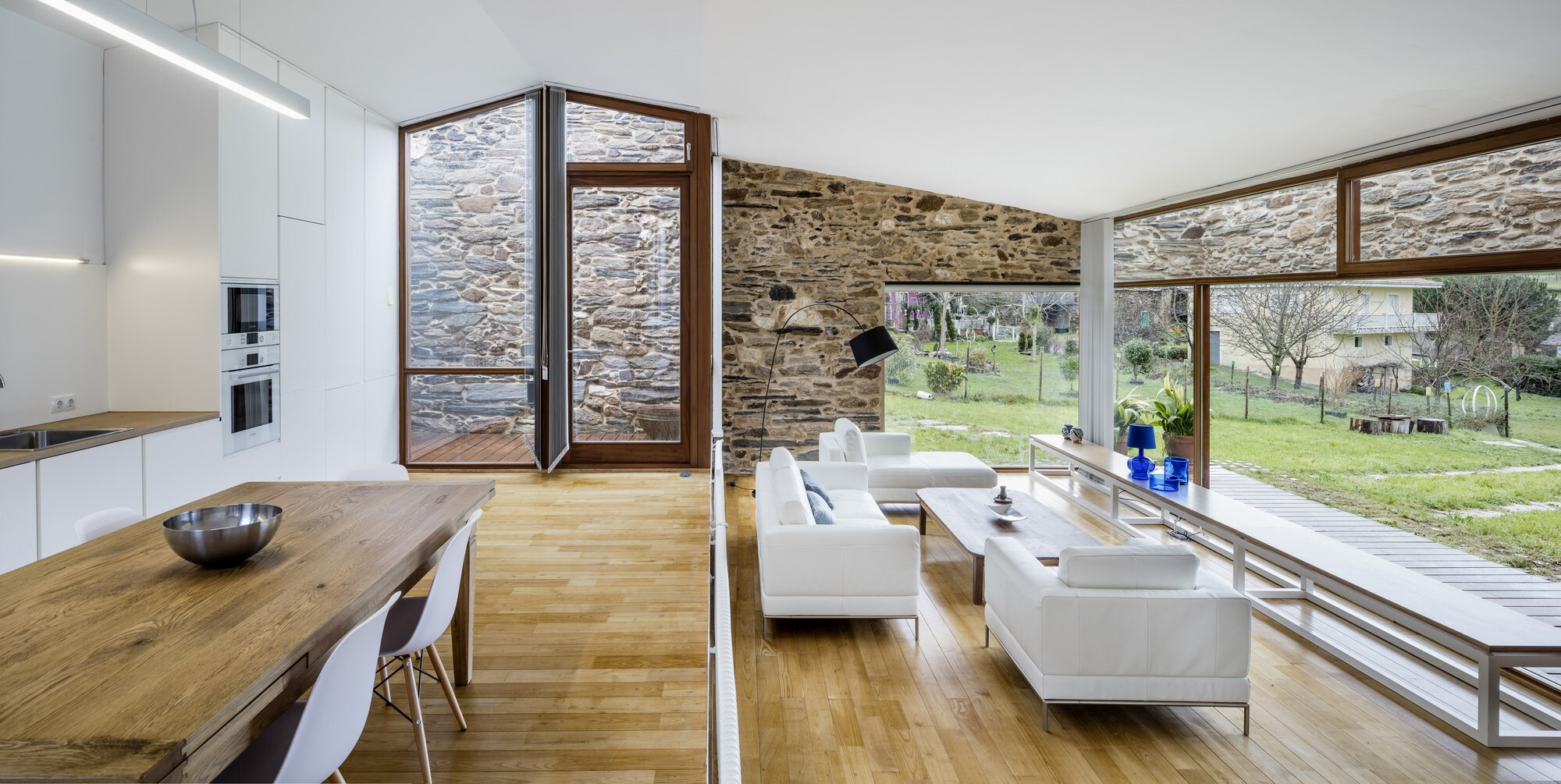

- Light, ventilation and views. It was necessary to ensure air and light conditions to provide comfort to the home, but mostly to make the house be able to enjoy the landscape.

photo_credit Adrià Goula
Adrià Goula

THE HOUSE WITHOUT WINDOWS

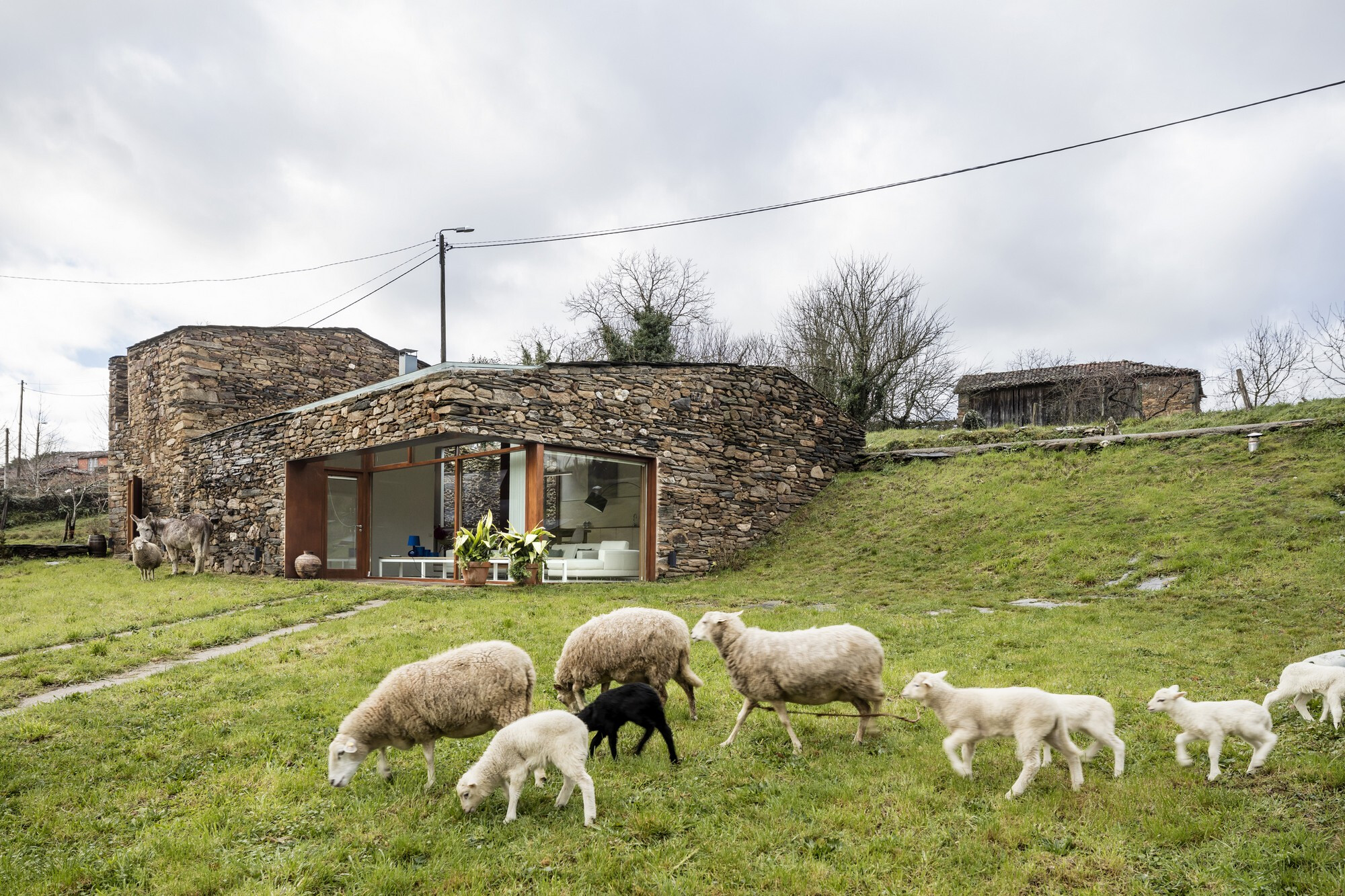

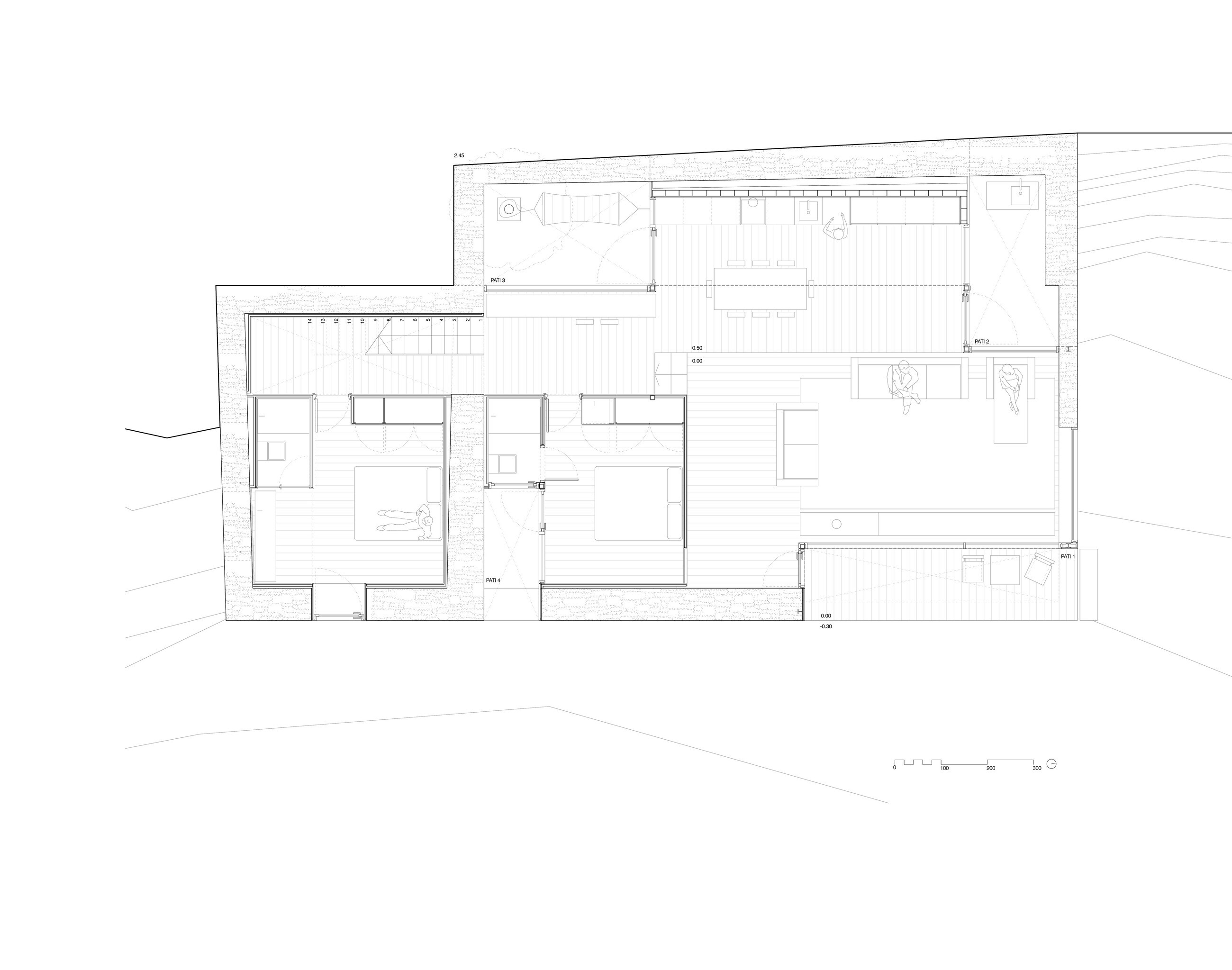

This is how people from the town baptized the house. This nickname explains very well the strategy that has been raised to solve the difficult initial situation of the main volume, semiburied and very wide. By emptying the corners patios are created, that establish relationships that offer diagonal views, interior lighting, and cross ventilation. This strategy defines not windows but voids on the facades, giving an appearance of a tectonic house without windows, but establishing an continuous relationship with the landscape between inside and outside.

Caption
Caption
Product Spec Sheet

ElementBrand
ManufacturersHispalyt
ISOLATINGIsover
MINIONDA STEEL COVERINGPANELAIS
POLICARBONATEResopal GmbH
Product Spec Sheet
Manufacturers
ISOLATING
by Isover
MINIONDA STEEL COVERING
POLICARBONATE
