Metal cladding

TECU® Gold aluminum alloy roof and facade cladding panels

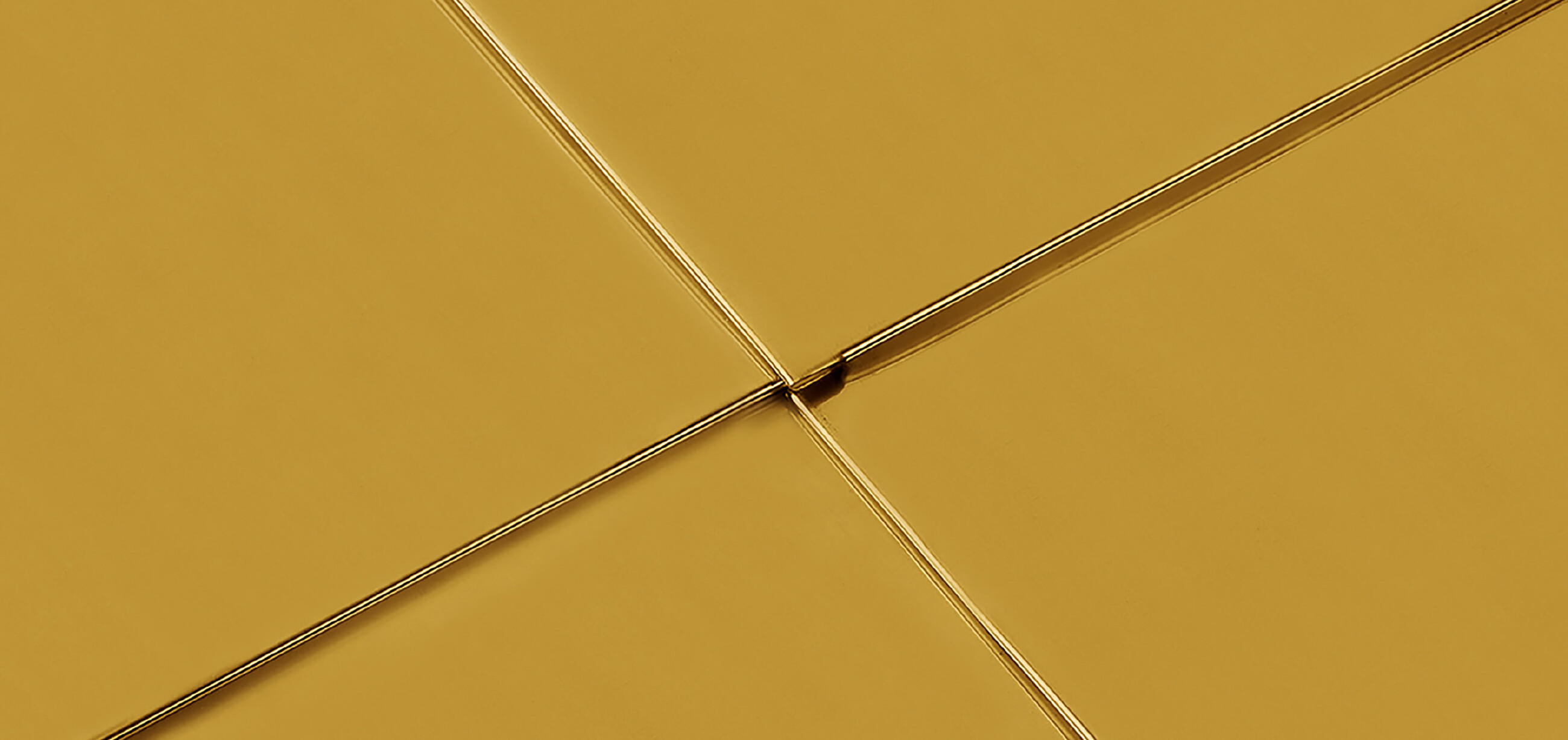

TECU® Gold is an ideal solution for roof and facade cladding.  TECU® Gold, offers more than an overpowering gloss. It develops a very elegant and distinctive matt brown-golden appearance after installation, reminding us of gold in a specific way. Depending on the light incidence on facade surfaces, a fascinating play of colors can be witnessed.

Facade solutions in TECU® Gold give buildings a discreet and valuable image. TECU® Gold is an alloy of copper and aluminum, and its original golden surface begins to mellow and becomes matt soon after installation. During further natural weathering, it gradually forms a striking warm golden surface with its unique characteristics.

photo_credit ©Florent Joliot
©Florent Joliot



Available Dimensions

TECU® Gold comes in a variety of widths and lengths:

Width: 670 mm or 1000 mm

Length: 2000 mm or 3000 mm

Thickness: 0.5 mm, 0.7 mm, or 1.0 mm



Production

TECU® Gold sheet and coil are produced in state-of-the-art production facilities according to EN 1652 and KME's strict guidelines. It is made out of CuAl5 copper-aluminum alloy, which is well-suited to welding, and soldering, and is malleable regardless of temperature and rolling direction. TECU® Gold surpasses the requirements of EN 1652 regarding tolerances and the most important material properties. This gives cladding areas an impressive appearance.



Benefits

-TECU® Gold offers outstanding resistance to mechanical abrasion, extremely high corrosion resistance, as well as exceptional durability, stability, and material rigidity.

-Due to its special material properties, TECU® Gold is also ideally suited for large-scale applications.

-It can be cold-formed well and is easy to solder.

-Hard soldering or brazing and TIG welding are not suitable.

-TECU® Gold is suitable for angle-seam and batten-roll techniques, for self-supporting panels, and due to its particular material properties is very well-suited to large format applications.





Storage and Transport

- Keep packing units dry during storage and transport.

- Keep pre-folded parts dry.

- Store parts on-site in an upright standing position.

- Do not lay any protective mats or covers directly on top of sheets and strips over a longer time, as this might create irreversible stains on the surface.

- Always store sheets and strips in the original packaging (dry and at room temperature).

- Do not install material from soaking wet packages. Please contact KME Germany GmbH & Co. KG.

- TECU® Gold sheets or strip surfaces are factory-refined and should be handled with special care. During transport, the surface of the sheets has to be protected against mechanical damage.



A leading global producer of semi-finished and special products

KME Germany GmbH & Co. KG is established as a leading global producer of semi-finished and special products, playing a central role in the copper value chain.  As a key supplier to the building industry, KME offers a wide range of exceptional copper and copper alloy product solutions for roofing, cladding, gutters, and downpipes, serving the global market.

KME's durable TECU® copper products offer a multitude of unique possibilities.  The striking natural surfaces of copper and copper alloys are employed to achieve singular design elements.  Prefabricated system elements are offered in a wide variety of solutions, encompassing everything from free-form designs to the simple and economical cladding of larger areas.  To ensure seamless integration, a complete system of rainwater drainage components is also available.  Once installed, TECU® products truly come alive, their beauty deepening over time.



Reference projects

Museum of Historical Marksmanship

Duderstadt is a charming town located near Göttingen and is considered as one of the top ten half-timbered towns in Germany. The architectural firm, Gnaedinger Architekten, undertook the renovation of an abandoned half-timbered house beside the tower and transformed it into a museum for historical marksmanship. The renovated timber house, together with the extended museum, created a new ensemble right under the Westerturm. The museum itself is an impressive folded structure made of concrete, enveloped in a golden copper metal façade. The triangular panels of various sizes, which make up the façade, give it a unique and striking appearance that is sure to capture the attention of passersby.

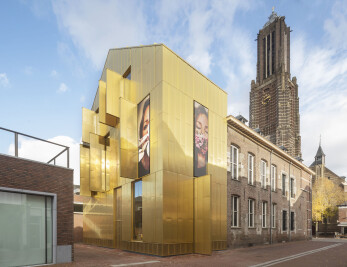

New Museum W

The Dutch city of Weert has done a renovation of its Municipal Museum, spearheaded by designer Maurice Mentjens.  Housed in the historic city hall since 1982, the museum now has a contemporary addition that complements its heritage. The project revitalized the building's monumental features while introducing a brand-new interior perfect for showcasing art.

The most eye-catching element is undoubtedly the museum's "third façade."  Clad in a unique matte gold material, this extension reflects the modern era and creates a captivating contrast with traditional architecture. The cladding on the façade is 1 mm thick. Each sheet has been folded over at the sides, which gives the façade a pronounced sense of rigidity.

In addition, a 20 mm-thick hard-pressed insulation panel has been glued behind each Tecu®Gold panel. This increases the rigidity of the structure even more.  The designer explains why he opted for Tecu®Gold, which has never been used in a project of this scale before in the Netherlands: ‘The material also represents immense cultural wealth and therefore serves as a beautiful reference to the priceless history that is preserved here for future generations.’



Werft 16

The project's unique location combines industrial areas, old office buildings, and residential streets, creating a diverse and contrasting neighborhood. Sustainability was a key focus. The project aimed to achieve modernization and expansion using low-tech, low-cost solutions and minimal resource consumption. Using Tecu®Gold panel, the design incorporates a gold-colored cladding material that contrasts with the existing building's silver and gray tones. More than just an additional floor, the new rooftop addition serves as a landmark of change. It features a box-shaped structure with expansive glass facades on the east and west sides, offering stunning views of the river and Düsseldorf's skyline.

Specifications

Product Name
TECU® Gold aluminum alloy roof and facade cladding panels
Material
Metal, Copper leaf
