Van Spaendonck Enterprise House
Lucas van der Wee
Van Spaendonck Tilburg Story by QbiQ Wall Systems Van Spaendonck Tilburg
Product Spec Sheet

ElementBrandProduct Name
Glazed PartitionsQbiQ Wall Systems
Ceiling Hunter Douglas Architectural
Multi Panel - Linear Open Metal Ceilings Interior
ManufacturersiGuzzini
ManufacturersMitsubishi Electric Trane HVAC US
ManufacturersSCHÜCO
ManufacturersAlucobond

Product Spec Sheet
Glazed Partitions
Manufacturers
Manufacturers
by SCHÜCO
Manufacturers

Van Spaendonck Enterprise House

architectenbureau cepezed as Architects

Recently, the Van Spaendonck Enterprise House in Tilburg was officially opened; a multitenant office block for enterprise supporting organizations radically revital- ized by cepezed and cepezedinterior.



The original building, formerly named The Corpac House, stems from 1968 and was designed by the Rotterdam office Van den Broek & Bakema. In later years, this split-level edi- fice composed of two volumes at different height levels was expanded with several additions. In a variety of aspects such as climate, user experience and functionality, the complex no longer met contemporary standards though.

photo_credit Lucas van der Wee
Lucas van der Wee

cooperation The motto for the renewed enterprise house was derived from the Roman historian Sallust (86-35 BC) and reads: Cooperation makes small things grow. Therefore, the trans- formation importantly focussed on enabling encounters and stimulating the sharing of visions and ideas. Also, client the Van Spaendonck Groep wanted a building with a modern-day élan and truly sustainable in all respects. Current themes such as hospitality, representativeness, effectiveness, profes- sionality, convenience, transparency, flexibility and an optimal support of the work processes all played an important role in this.

photo_credit Lucas van der Wee
Lucas van der Wee

effective interventions cepezed’s approach was based on efficient, effective and well-considered interventions. For instance, right at the pro- ject start, the office made a thorough inventory of the existing situation and the possibilities it included. For several con- struction segments, cepezed researched the cost-effective- ness of demolition and preservation. This showed that it was more profitable to preserve a particular addition that the client had actually nominated for demolition. It turned out that with minimal adjustments, the addition could easily blend in with the aesthetics, functionality and experience of the renewed enterprise house, thus rendering demolition a waste of resources. In the new situation, the segment houses several support functions such as the kitchen, storage, archives and mail room. Hence, these do not occupy valuable floor space in the original Van den Broek en Bakema section, leaving that fully available for letting offices with an agreeable experience and functionality. This importantly adds to an optimised return on investment.

photo_credit Lucas van der Wee
Lucas van der Wee

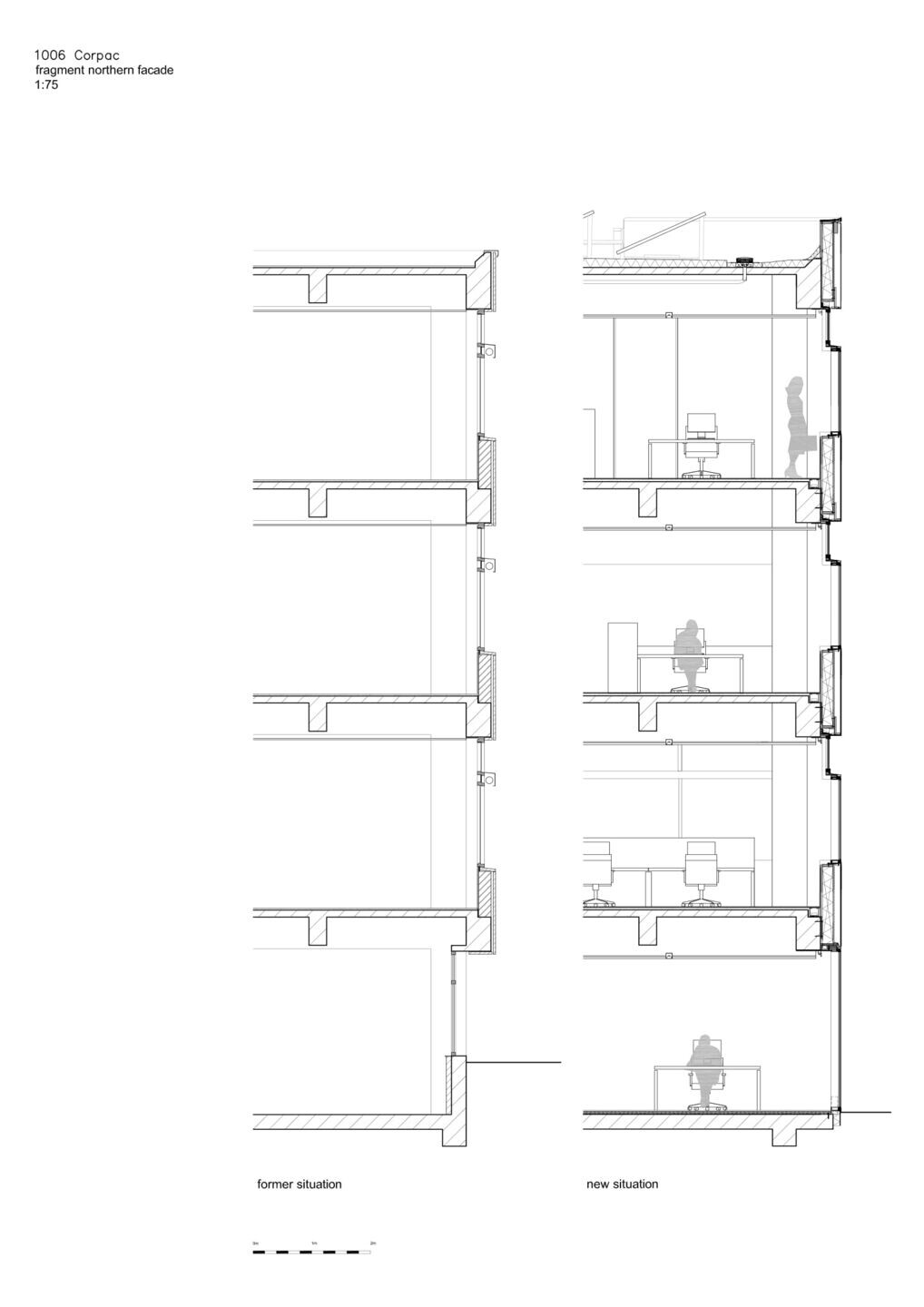

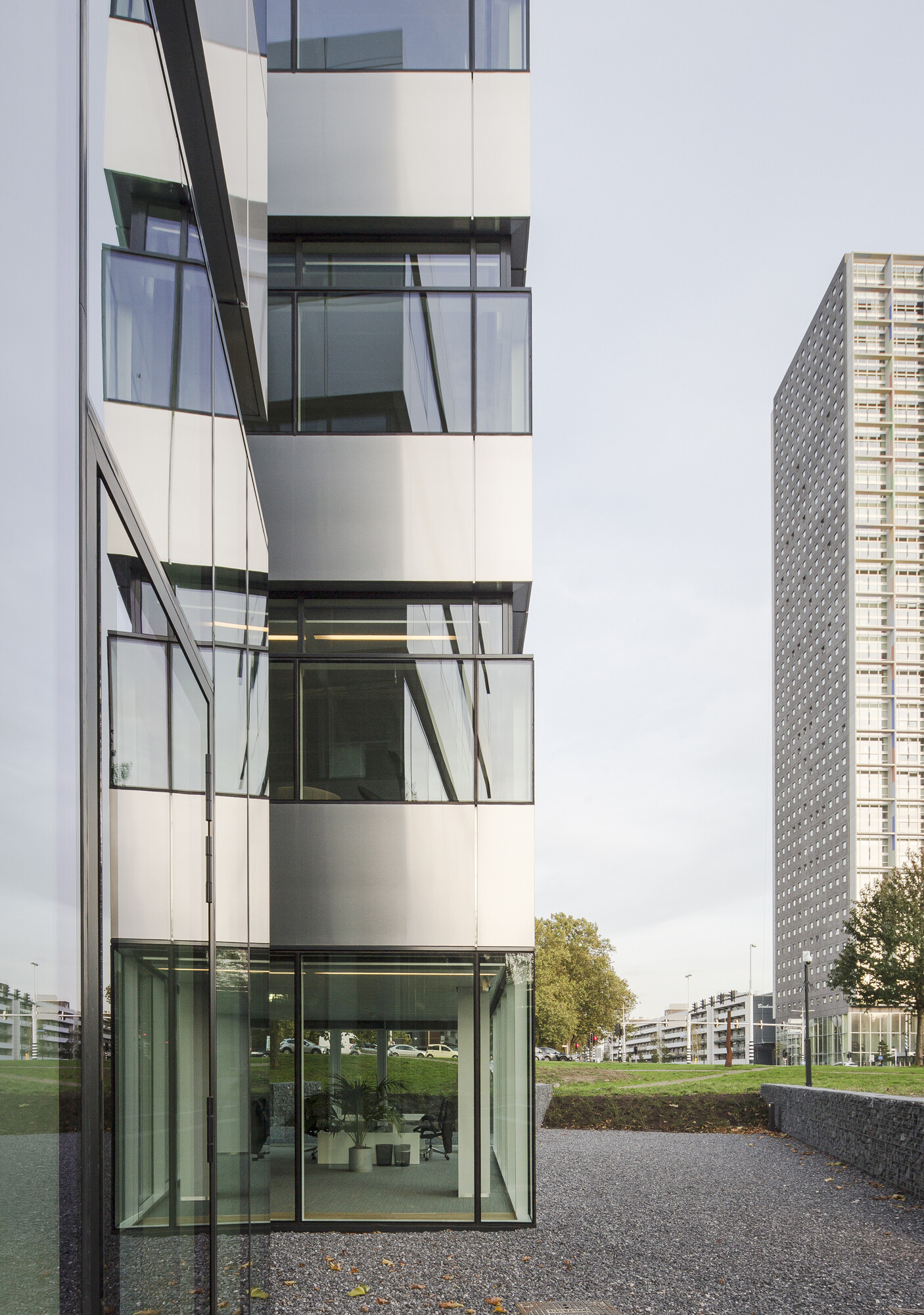

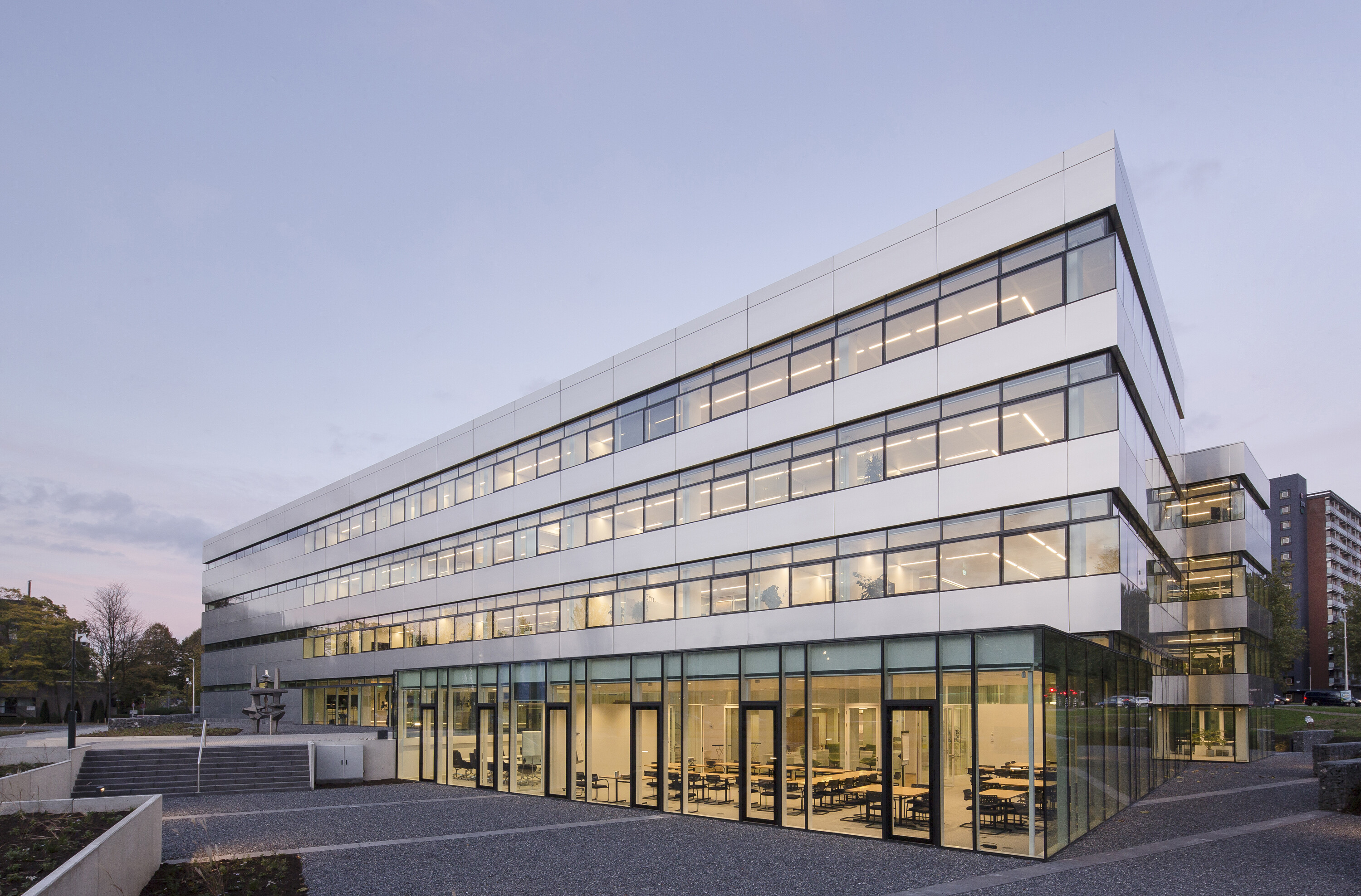

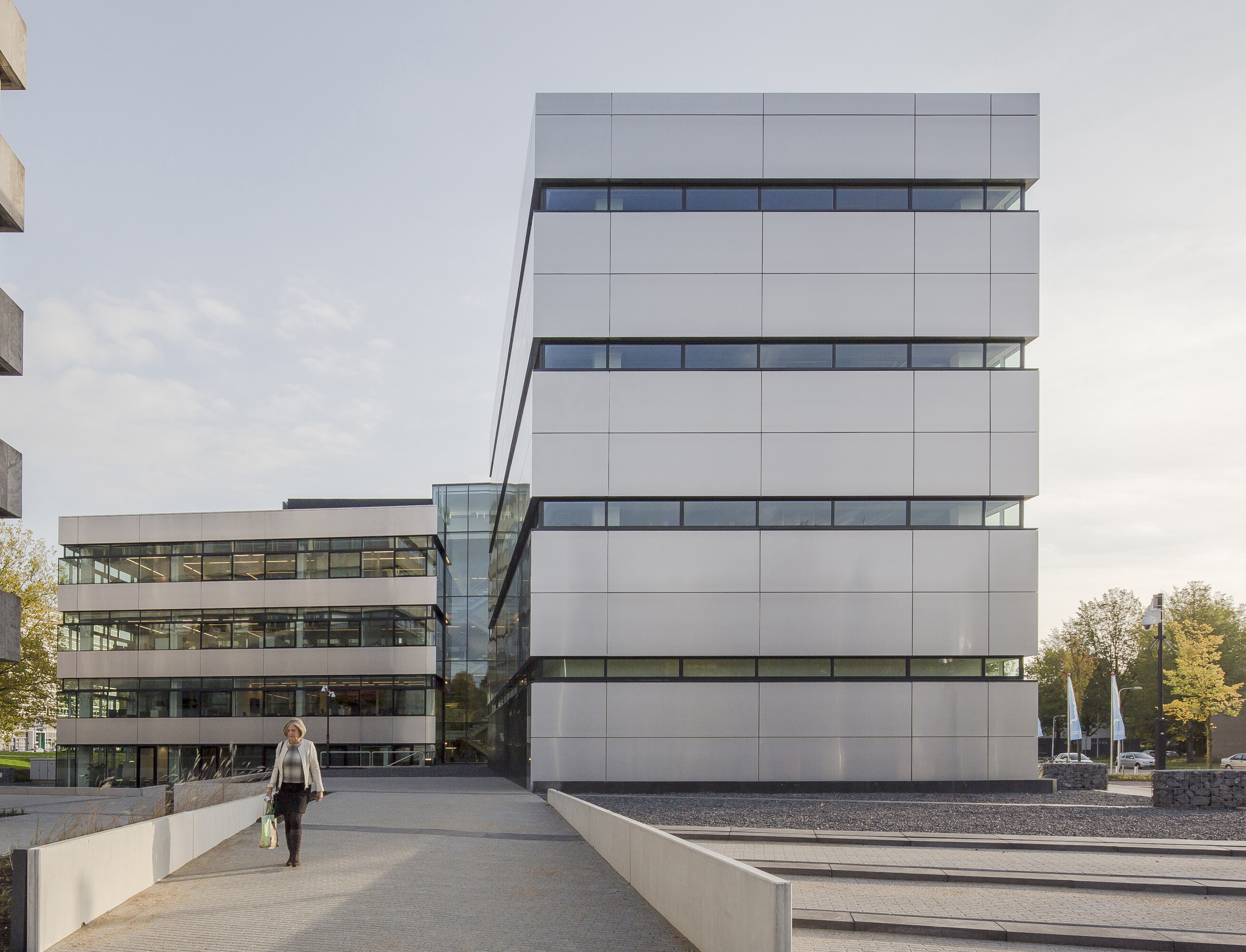

characteristic façade The renewed façade is based on the horizontal, very char- acteristic rhythm and articulation of the existing one, which was composed of strip windows with transoms and parapets of Triassic limestone. The new outer walls have the same proportion of closed and transparent elements as the old one, but with an outer finishing of aluminium and a minimalistic detailing, it has strikingly modern looks. While in the original façade, there was a difference in depth between the closed elements and the windows above them, in the new one theseare in the same vertical surface, thus adding to a smooth appearance. While in the original façade the glass sections of the windows and transoms were in the same surface, the transoms are now positioned a bit more inward. This brings about a difference in depth that is both intriguing and soften- ing. Of course, the new skin guarantees high-grade construc- tion physics, while the existing one was not even insulated in any way.

photo_credit Lucas van der Wee
Lucas van der Wee

transparent inner world The world inside literally opened up. The original setup already had large spatial elements such as atria and voids, but by means of built-in cabinets, these were strictly separat- ed from the workplaces around them. Thus, one could hardly experience the spatial wealth and abundance of these spac- es. The separation also resulted in a very limited interaction between the different users of the building.

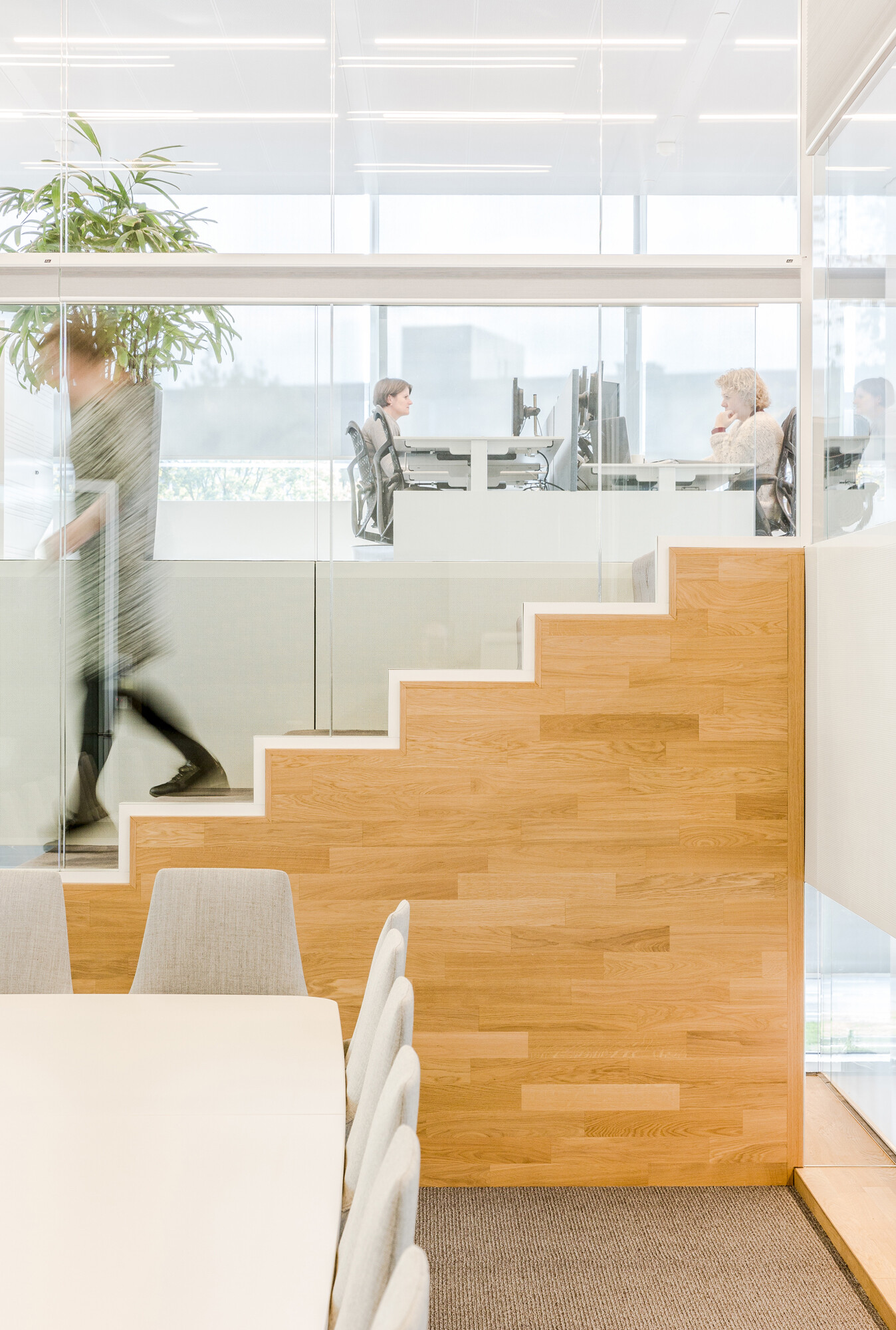

cepezed broke open the existing, closed structure. The cabi- nets that were once a barrier, were removed and separations are now largely transparent. The office floors were rearranged and fitted with a wide variety of workplaces, ranging from open and activity-based to concentration rooms and more traditional, cellular offices. The renewed layout came about in close consultation with the different tenants and were tailored to their needs and wishes. The new arrangement makes optimal use of the existing, clear and rational basic structure of the building. The fresh, light and airy atmosphere has long sightlines, stimulates the visual and user interaction between the different tenants and adds to a good orientation.

photo_credit Lucas van der Wee
Lucas van der Wee

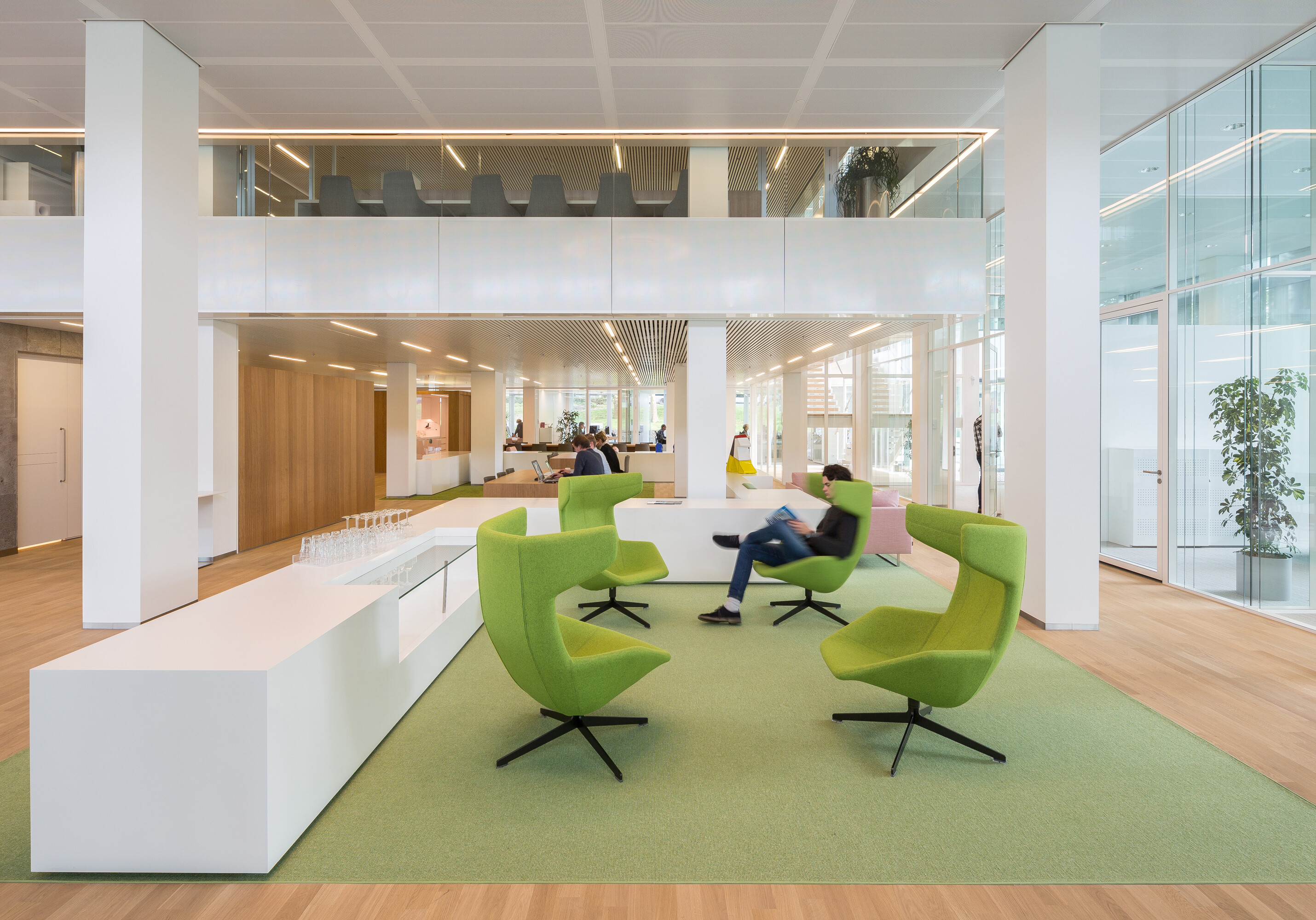

A lot of attention was also paid to the functionality and ambi- ence of the shared facilities such as the relax zones and the meeting rooms of different types and measurements. All these fit the identity of the adjoining users and provide them with a distinctive own area within the whole. Whereas all zones specifically dedicated to working are neutral, sober and modest, accents in colours and materials lend an extra air to these larger, shared rooms. The designers conceived various custom furniture elements for them as well, again all in close consultation with the different tenants

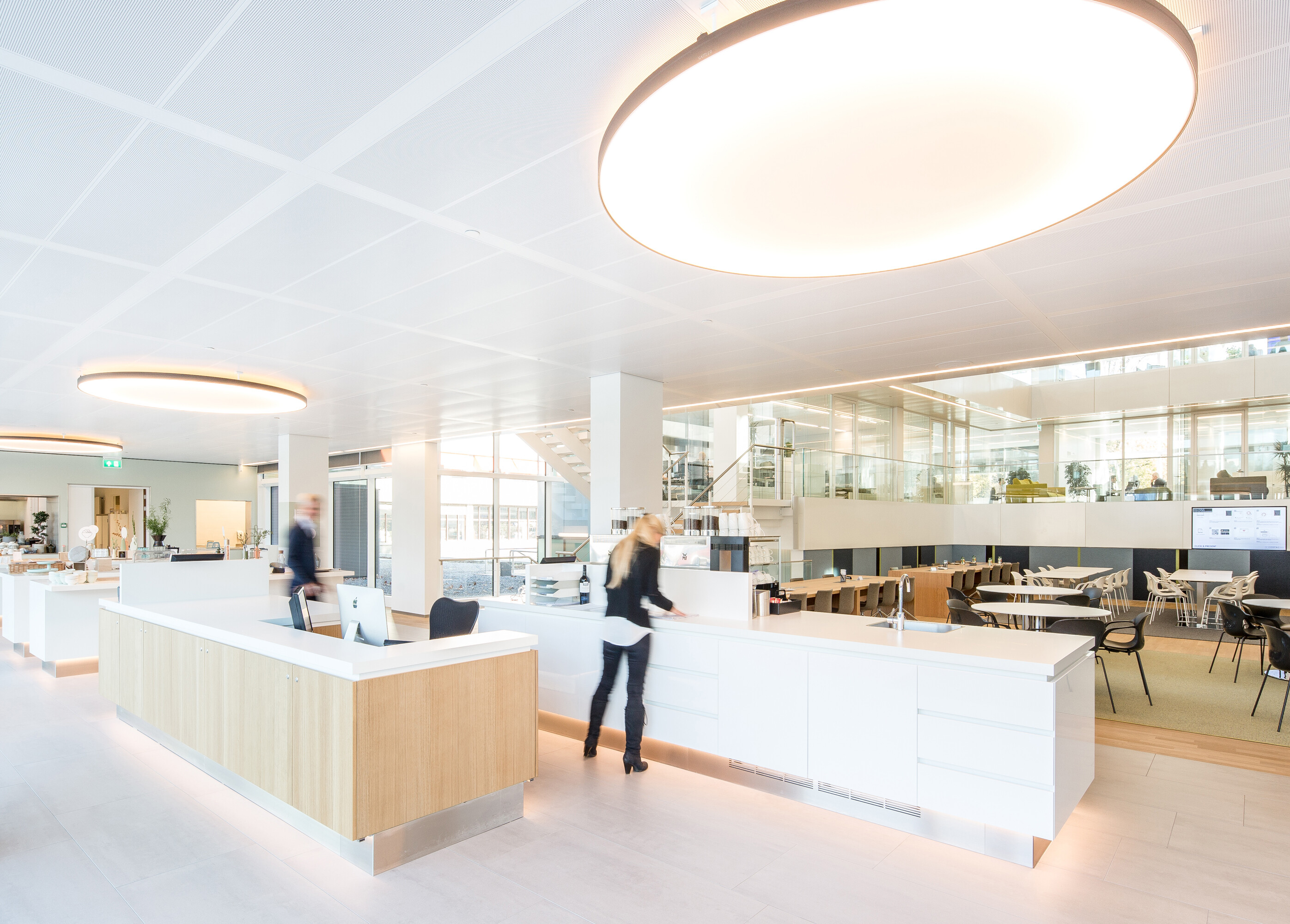

For use by all, the atrium adjoining the main entrance con- tains a work café with 98 seats. This is also where people have lunch and where events like receptions and celebra- tions take place. The chairs and tables here can be arranged according to any need of the moment, which adds to the mul- tifunctionality of the area. A lot of attention was paid to agree- able acoustics.

photo_credit Lucas van der Wee
Lucas van der Wee

sustainability The renewed enterprise house has a BREEAM Excellent cer- tification based on the norms set for new constructions.



A lot of elements of the existing building were preserved. The full main stability structure was reused and also interior ele- ments such as the original stairwells and the stone cladding of the building’s core are a prominent part of the renewed edi- fice. Parts of the existing furniture were aesthetically upgrad- ed and also reused.



The use of materials was minimized, while the materials nonetheless used are high-grade and in line with the latest sustainability norms. A lot of them were applied in their nat- ural appearance. The carpet tiles filter the air. The renewed façade is highly insulated and provided with HR++ glazing. The building’s detailing is minimalistic and attuned to minimal maintenance.

photo_credit Lucas van der Wee
Lucas van der Wee

Just like the use of materials, the installations were mini- mized, while they are based on contemporary, energy-saving techniques. For instance, cooling and heating takes place through climate ceilings, the temperature can be adjust- ed manually and individually, the building makes use of an underground thermal storage and most of the lighting is LED- lighting. The project also includes water saving measures and on the roof, the building holds some 200 m2 of solar panels. The parking is provided with a charging station for electric cars.

The high degree of flexibility and the possibilities for different layouts of the renewed offices are an important part of the functional sustainability. Potential changes within the overall organization and future growth or reduction of tenant organi- zations are easily adjusted to. Also, for example the installa- tions are organized such that they fit different workplace con- cepts. Changes can be brought about readily, with little effort and with relatively low costs.

photo_credit cepezed
cepezed

Around the building, a flowery biodiversity garden with a diversity of biotopes will be realized. This was designed by Green Curve, will be a valuable contribution to the urban ecology and will be pleasant for the building’s users to walk, work and meet in. For a nearby school, the garden will func- tion as a learning location. The garden design aligns with the split-level setup of the building, while the building in turn counts no less than 31 doors leading outside. Thus, land- scape and building interconnect in a natural manner.



Part of the focus on connection and cooperation is the use of the building by third parties, who can rent rooms and facilities. This way, the Van Spaendonk Enterprise House also contrib- utes to social and economic sustainability.

photo_credit cepezed
cepezed

Van Spaendonck Tilburg

QbiQ Wall Systems as Glazed Partitions

The Van Spaendonck Ondernemingshuis was renovated recently. Architectural firm cepezed was engaged for the design of the interior and the result is impressive. An open modern building with both a traditional and a dynamic look and feel. IQ-Structural with double glazing was chosen for the partitions due to its high noise reducing qualities.

photo_credit Hans Morren
Hans Morren

The high noise reducing qualities in combination with the major transparency of the IQ Structural were the decisive factor.

van Spaendonckhuis

photo_credit Hans Morren
Hans Morren
Partition Thickness 100mm (3.9 inch)
Glazed Sections 900mm (35.4 inch ) and 1200mm (47.2 inch)
Clad Sections 1200mm (47.2 inch)
Section Joins vertical style
Floor Track aluminum 33mm (1.3 inch) high
Door Frames aluminum DKR100
Doors KDR100-80 wall thick with double glazing
Hinges stainless steel
profielen MA100, GD72, AP31
Glazing 66a2
