The Linvisibile Filo 10 Hinged door is a unique product that can be perfectly aligned with both sides of the wall panel, for its thickness of 102 mm. It has only a 3 mm gap between the panel and the wall, making it stand out. The door is designed with concealed hinges and no door frames or jambs, creating a seamless connection between the wall and the door. The door can be coated with various materials such as metal, stone, or leather, to add elegance and sophistication to any space. There are shiny or matte lacquered and wooden versions available as well.
The Linvisibile Alba Filo 10 Hinged door has an extruded aluminum frame that replaces the frame and adjusts to walls or plasterboard walls with different thicknesses. It can be painted with water-based colors or enamel paints and comes in various shapes and sizes. The door panel has a hollow core structure, a solid wood perimeter frame with a high-density honeycomb interior, and two 5 mm thick plates on each side. The hinges are concealed, invisible hinges that can hold up to 160 kg and open up to 180°. The door is available in various sizes and can be customized with different materials and finishes.
Dimensions and personalization
Linvisibile Alba | FILO 10 Hinged door is available in the following sizes (clear width, single leaf)
– all widths from 700 to 1200 mm
– all height from 1900 to 3500 mm
Coatings
It can be coated with wallpaper, trims, gobelin, decorative woods, decorations, ceramics, skirting boards, and mirrors.
Technical details
The door has peculiar technical details such as the ability to produce the frame without a header, prearrange the panel for a mirror or glass, and apply a concealed door closure.
– Extruded aluminum frame (EN AW 6060 alloy – Anticorodal 063) that replaces the frame (outer frame-posts) and adapts to walls and plasterboard walls with different thicknesses. Prepared for Pull or Push openings. Paintable with water-based colors of good quality, enamel paints, etc. It can be manufactured in a wide range of available shapes and sizes. Assembly of the frame with MDF triangles put on the two upper corners and from jamb to jamb;
– A panel with a hollow-core structure,102 mm thick, made with a perimeter frame in solid wood with a high-density honeycomb interior, finished with 2 MDF sheets, 5 mm thick, on each side.Rebates on the perimeter and seals in PVC. Class E1 low formaldehyde emission;
– Concealed hinges: invisible hinges disappearing, for doors with aluminum frame. UL certification, 160 kg capacity, 180 ° opening, front length 240 mm. Comply with DIN, sliding bearing functioning. Adjustable hinge on three axes. Standard finish satin chrome, other finishes on demand. The Concealed door closer is perfect to be installed on the hinged system
Specializing in manufacturing doors and locking systems since the early 80s
Linvisibile is an Italian company that creates unique, tailor-made opening and closing systems. It doesn't sell doors or have a product catalog. Instead, it listens to clients' desires and produces doors designed for their specific needs. Linvisibile's doors are flush with the wall, eliminating the need for frames or exposed hinges, and delivering a smooth, perfect opening. The company prioritizes customer satisfaction, guaranteeing perfect performance and following up on installation. Linvisibile was born out of a project that merged studies and research to propose personalized design configurations for architecture solutions that would satisfy demanding expectations, different tastes, and a variety of lifestyles.
Reference projects
At OLIVOMARE, a prestigious seafood restaurant in London’s Belgravia, the design revolves around oceanic themes. A notable architectural element is the use of Linvisibile doors to access various areas within the restaurant. These doors, renowned for their minimalist and concealed appearance, blend with the restaurant's sophisticated decor. In the small dining room, a flush Linvisibile door discreetly opens to the cloakroom (toilets lobby), creating a dramatic entrance surrounded by a coral reef-inspired motif. The Linvisibile door's flush design and hidden hinges contribute to the overall aesthetic, maintaining a sleek and unobtrusive appearance.
The Monad Terrace project, a highly anticipated development in Miami Beach, is currently in its construction phase, promising a remarkable living experience with a central lagoon and bay-facing double-height lobby. To showcase the essence of this visionary project, a Sales Gallery has been established nearby, designed to immerse potential buyers in the future lifestyle of Monad Terrace. Architect Jean Nouvel and JDS Development have collaborated to create this 59-unit luxury condo, setting new standards in architectural innovation.

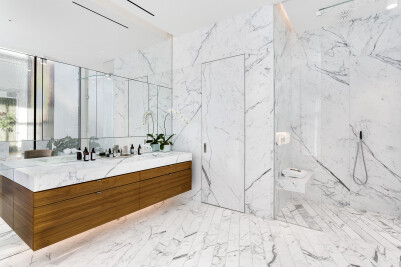

Linvisibile doors were selected as a crucial component of the Sales Gallery's design, reflecting elegance and sophistication. Linvisibile, renowned for manufacturing interior flush-to-wall doors entirely in Italy, brings over 30 years of expertise in delivering exclusive and high-quality products. For the Monad Terrace Sales Gallery, Linvisibile provided four highly customized doors tailored for specific finishes on-site. These doors, part of the ALBA Filo 10 Hinged series, were designed to seamlessly integrate with marble, mirror, glass, and wall finishes, embodying versatility and luxury.
Palazzo Volpi, an ancient Venetian palace dating back to the 13th century, has been transformed into a luxurious accommodation featuring four exquisite apartments in the heart of Venice. Linvisibile, renowned for its interior flush-to-wall doors crafted entirely in Italy, played a pivotal role in enhancing the interiors of Palazzo Volpi. The use of Linvisibile's sliding doors, coated in elegant glass finishes, contributes to the spatial perception of the interiors by reflecting light and creating a sense of openness. These sliding doors, resembling works of art, feature exclusive recessed glass handles and operate smoothly and silently, adding to the overall elegance of the space.
In addition to the sliding doors, Linvisibile provided Filo 10 Hinged doors at the entrance, finished in luxurious natural wood. For the Palazzo Volpi project, Linvisibile supplied approximately 20 highly customized doors in various typologies, finishes, and dimensions. The doors, tailored to complement the classic-meets-modern interiors of the palace, embody a harmonious balance of craftsmanship and design excellence. The choice of finishes, including MiraStar® Glass from Saint-Gobain and moka brushed oak veneered wood, further enhances the luxurious atmosphere of Palazzo Volpi, showcasing Linvisibile's capability to deliver bespoke solutions tailored to specific project requirements.
